> Mowers > Petrol > Drive from 43 cm on > Premio > Premio 46 HA > Handlebar compl.

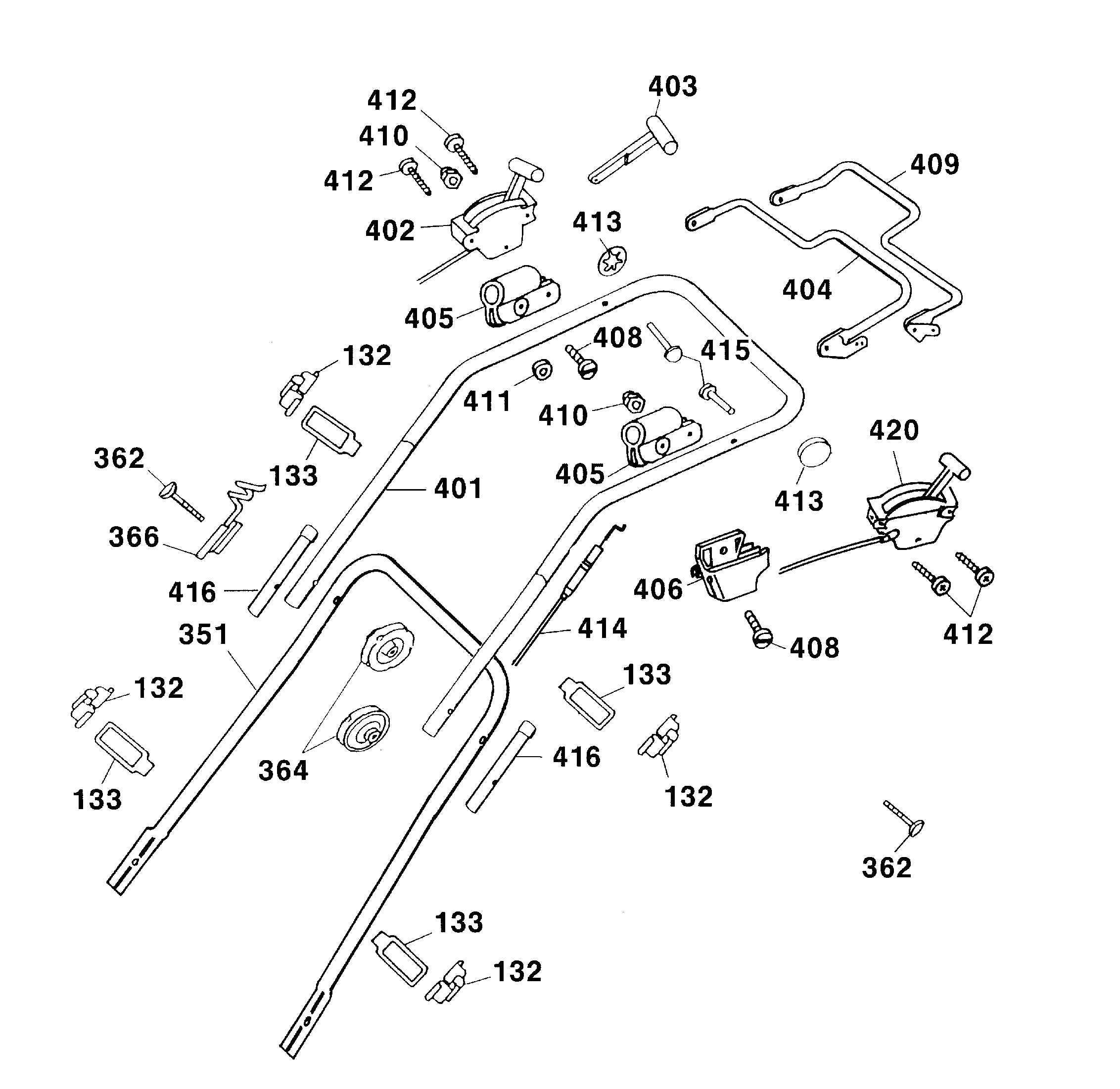

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
132Clip6340 312
133Strap6340 314
351Lower Handlebar4628 122
362Connecting Screw4901 101
364Handwheel4936 022
366Guide-Rope6340 014
401Upper Handlebar6320 023
401Upper Handlebar4720 023
402Case With Bowden Wire, Gas4011 056
***Case, Right6450 325
***Case left6450 326
403Gear Lever4011 040
404Brake Lever4015 013
405Clamp-Casing4720 105
406Double Support4015 306
408Screw0012 211
409Lever4015 035
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
413Clip3585 503
414Bowden Wire Coupler4005 055
414Bowden Wire Driving4015 055
415Bolt0018 107
416Closing Cap6340 125
***Instruction Manual0054 369
420Case Compl. With Bowden Wire, 2-Gear4015 061
***Instruction Manual0054 377
