> Mowers > Petrol > Drive from 43 cm on > Concept > Concept 47 BA > Handlebar compl.

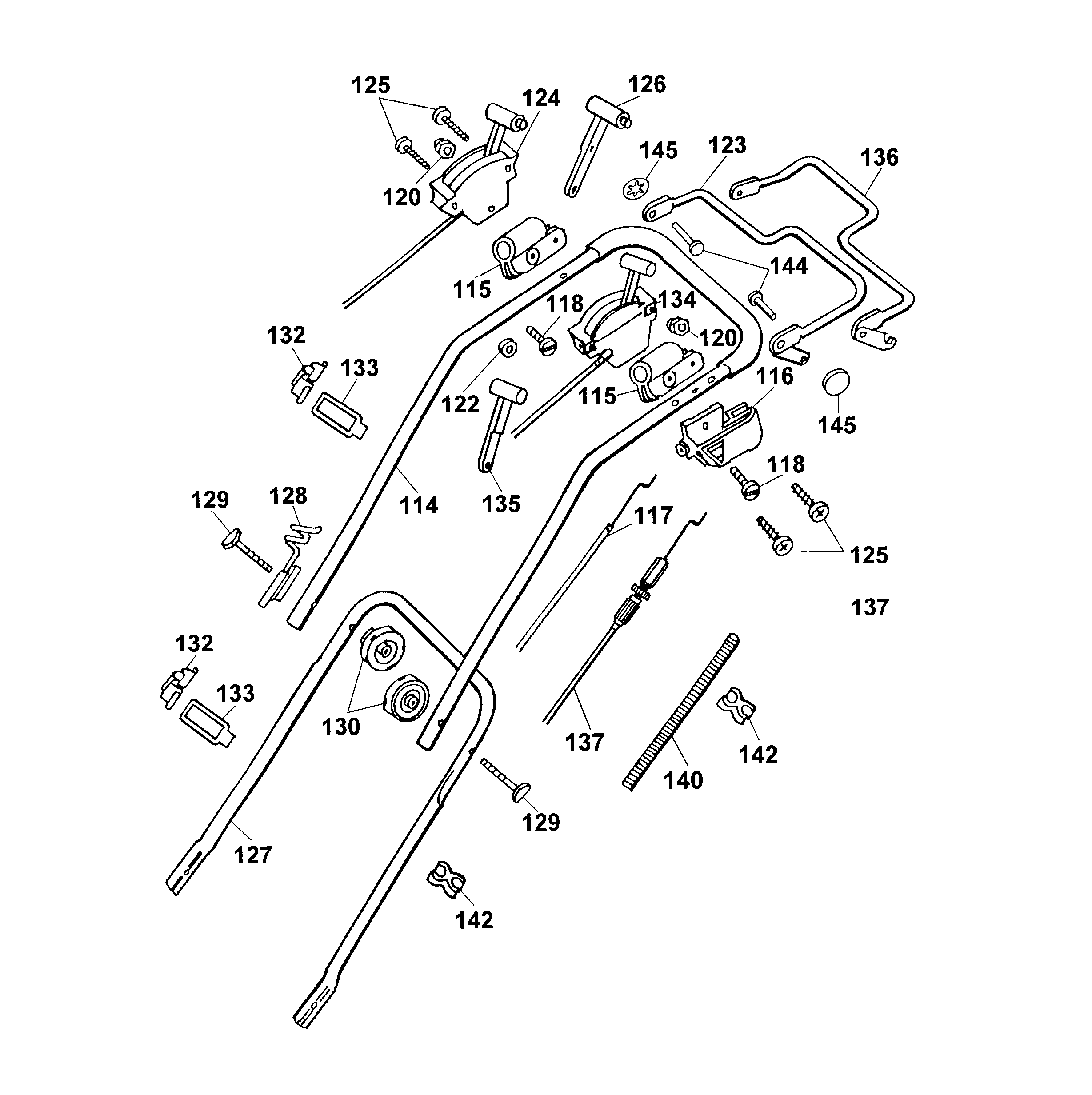

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
114Upper Handlebar6450 923
115Clamp-Casing4720 105
116Double Support4015 306
117Bowden Wire6450 057
118Screw0012 211
120Nut0016 641
122Distance Disc4240 205
123Brake Lever6450 066
124Case With Bowden Wire, Gas6450 055
125Screw0012 886
126Adjusting Lever4722 040
127Lower Handlebar4317 122
128Guide-Rope6340 014
129Connecting Screw4901 101
130Handwheel4936 022
132Clip6340 312
133Strap6340 314
134Case With Bowden Wire, 2 Gear Speed6450 060
135Gear Lever4011 040
136Lever4015 035
137Bowden Wire Driving6460 055
140Pipe6450 318
142Clamp6660 301
144Bolt0018 107
145Clip3585 503
***Instruction Manual0054 244
