> Mowers > Petrol > Drive from 43 cm on > Concept > Concept 43 BAI > Handlebar compl.

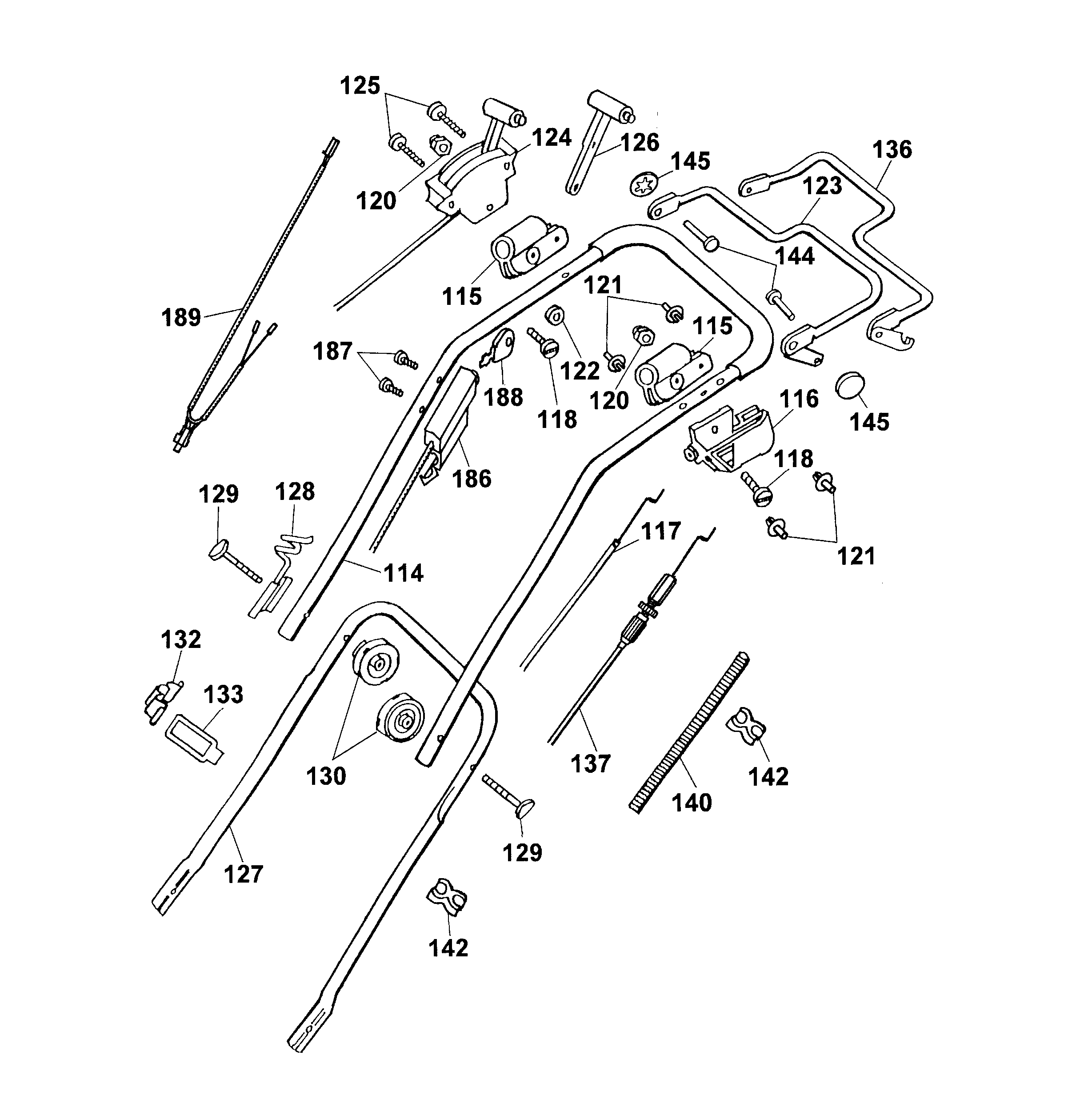

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
114Upper Handlebar6460 923
115Clamp-Casing4720 105
116Double Support4015 306
117Bowden Wire6450 057
118Screw0012 211
120Nut0016 641
121Body-Bound Rivet6430 316
122Distance Disc4240 205
123Brake Lever6450 066
124Case With Bowden Wire, Gas6450 055
125Screw0012 886
126Adjusting Lever4722 040
127Lower Handlebar4317 122
128Guide-Rope6340 014
129Connecting Screw4901 101
130Handwheel4936 022
132Clamp-Casing6330 310
133Strap6340 314
136Lever4015 035
137Bowden Wire Driving4350 053
140Pipe6450 318
142Clamp6660 301
144Bolt0018 107
145Clip3585 503
186Starter Case Compl.6460 030
187Screw0012 625
188Key6330 101
189Cable Form6460 054
***Instruction Manual0054 244
