> Mowers > Petrol > Without drive from 43 cm on > Premio > Premio 46 B > Handlebar compl.

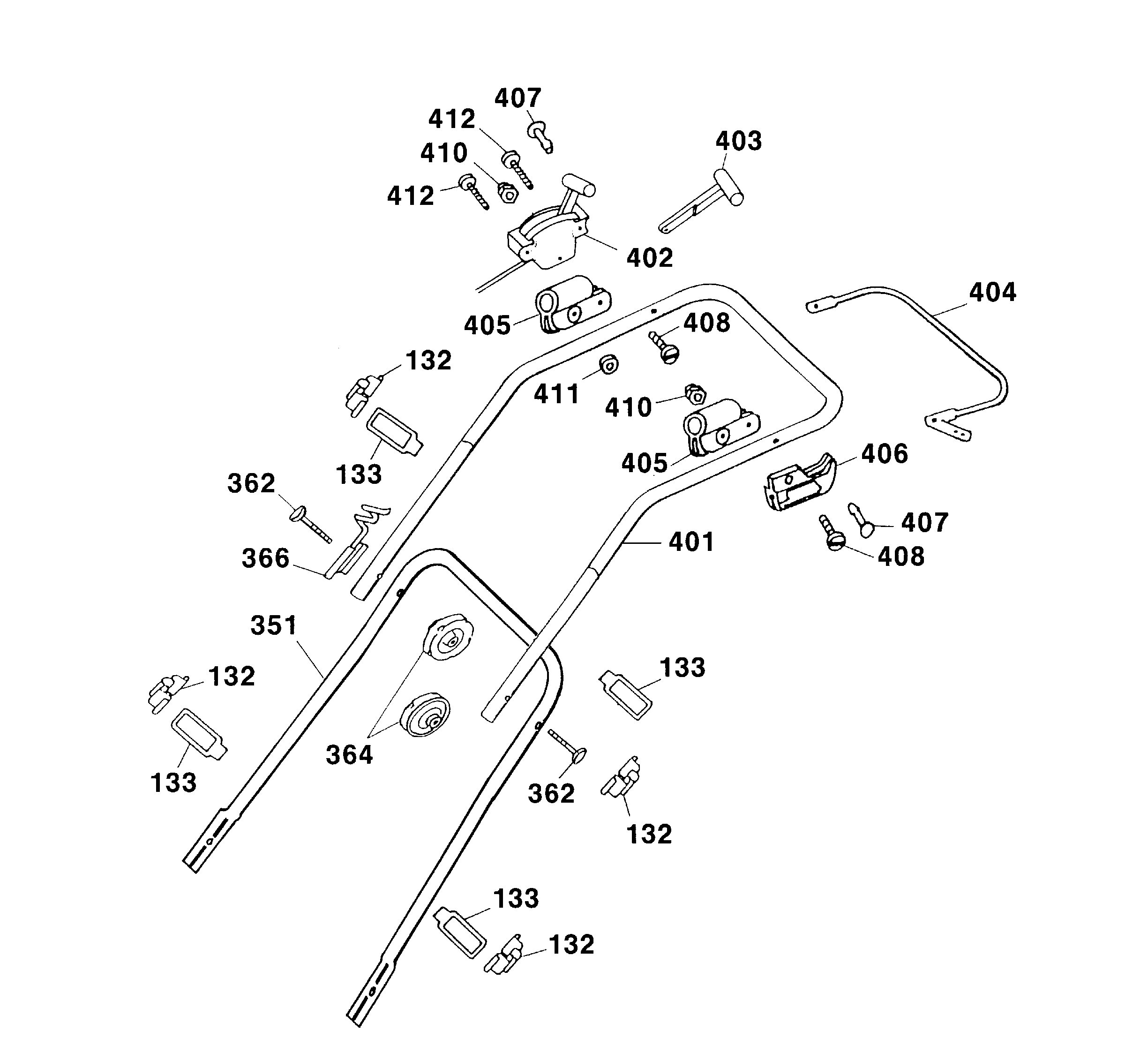

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
132Clip6340 312
133Strap6340 314
351Lower Handlebar4628 123
362Connecting Screw4901 101
364Handwheel4936 022
366Guide-Rope6340 014
401Upper Handlebar4820 023
402Case With Bowden Wire, Gas4611 055
***Case, Right6450 325
***Case left6450 326
403Gear Lever4011 040
404Brake Lever4001 013
405Clamp-Casing4720 105
406Support4760 106
407Bolt4720 109
408Screw0012 211
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
***Instruction Manual0054 319
