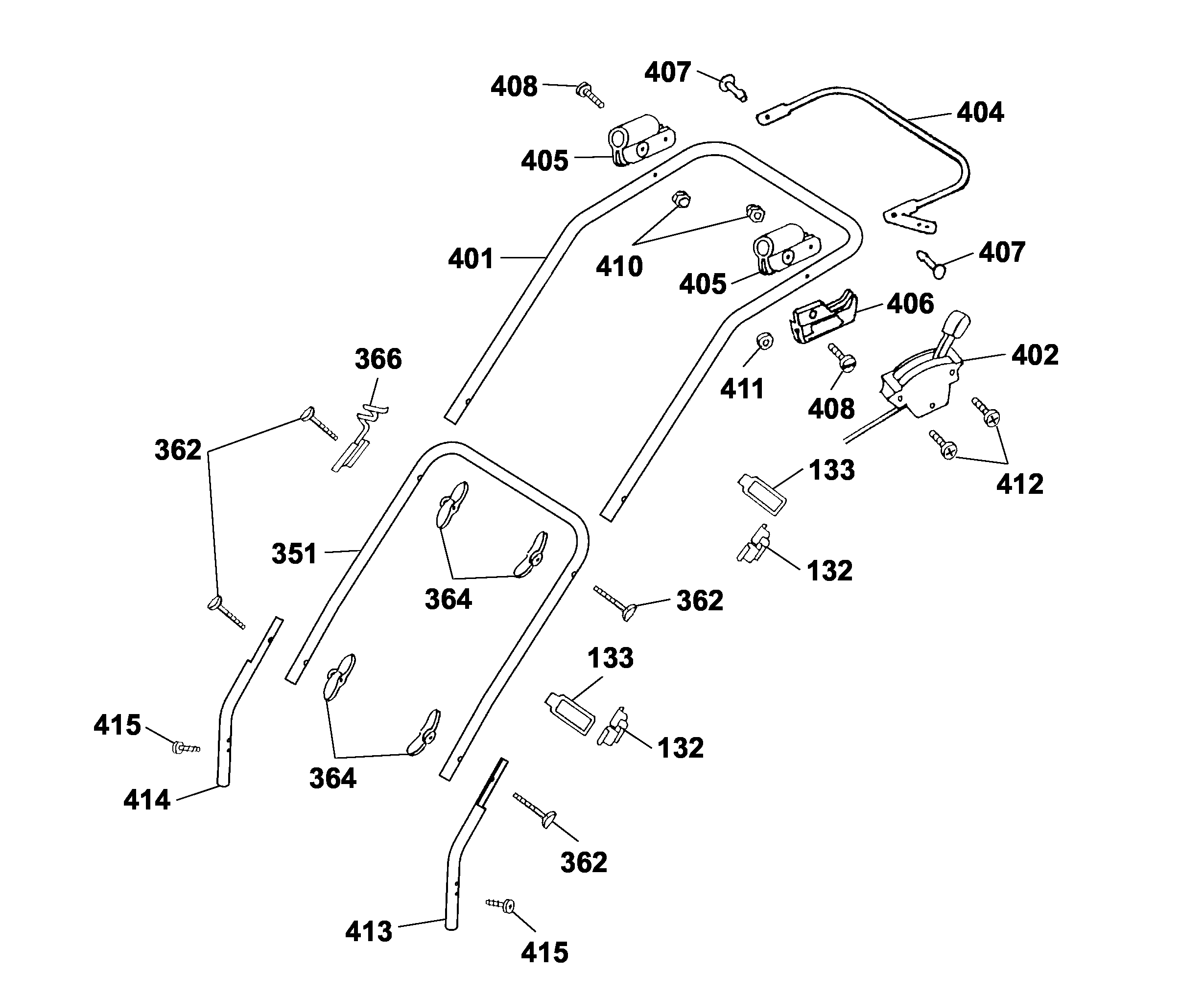

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
132Clip6340 312
133Strap6340 314
351Lower Handlebar4001 122
362Connecting Screw4901 101
364Wingnut0016 717
366Guide-Rope6340 014
401Upper Handlebar4001 031
402Case With Bowden Wire, Gas4001 057
404Brake Lever4001 013
405Clamp-Casing4720 105
406Support4760 106
407Bolt4720 109
408Screw0012 211
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
413Pipe, Left4001 125
414Pipe, Right4001 127
415Screw0015 660
***Instruction Manual0054 320
