> Mowers > Electro > Drive > Premio > Premio 46 EA > Handlebar, Switch

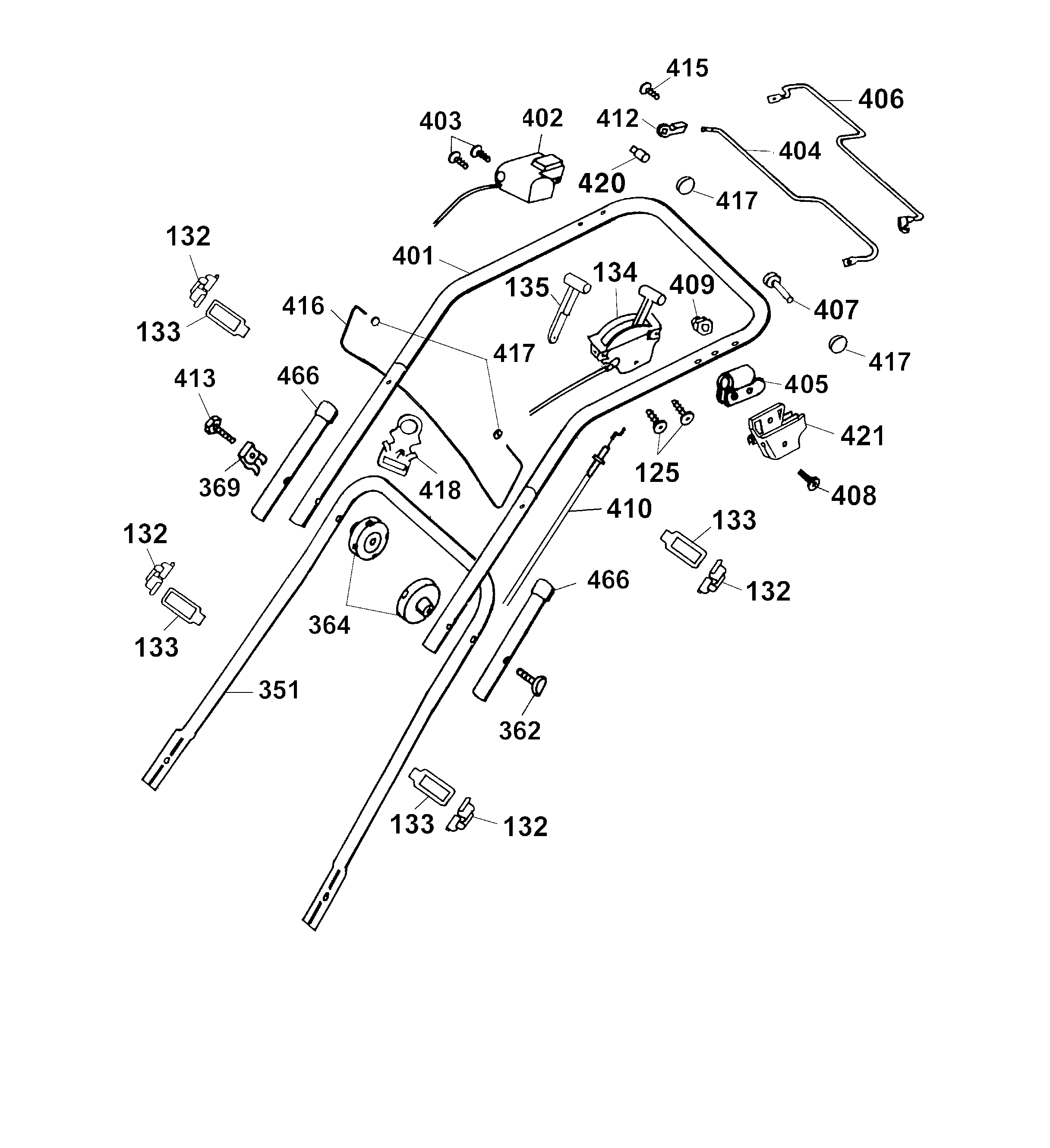

Lista de repuestos para Wolf Mowers Handlebar, Switch




Lista de repuestos


pos.descripciónNúmero de pieza
125Screw0012 886
132Clip6340 312
133Strap6340 314
134Case Compl. With Bowden Wire, 2-Gear4015 061
***Case, Right6450 325
***Case left6450 326
135Gear Lever4011 040
351Lower Handlebar4011 122
362Connecting Screw4901 101
364Handwheel4936 022
369bend protection4950 308
401Upper Handlebar4029 026
402Switch-Key4020 050
***Switch Switzerland Only4012 063
403Screw0012 625
404Gear Lever4318 010
405Clamp-Casing4720 105
406Lever4029 035
407Bolt0018 107
408Screw0012 211
409Nut0016 641
410Bowden Wire Driving4015 055
412Bushing4940 105
413Screw0010 338
415Screw0015 820
416Shackle3585 100
417Clip3585 503
418Cable Guide4936 323
420Bearing Bolt4920 208
421Double Support4015 306
466Closing Cap6340 125
***Instruction Manual0054 376
