> Mowers > Electro > Without drive up to 38 cm > series 6 > 6.38 E > Handlebar, Switch

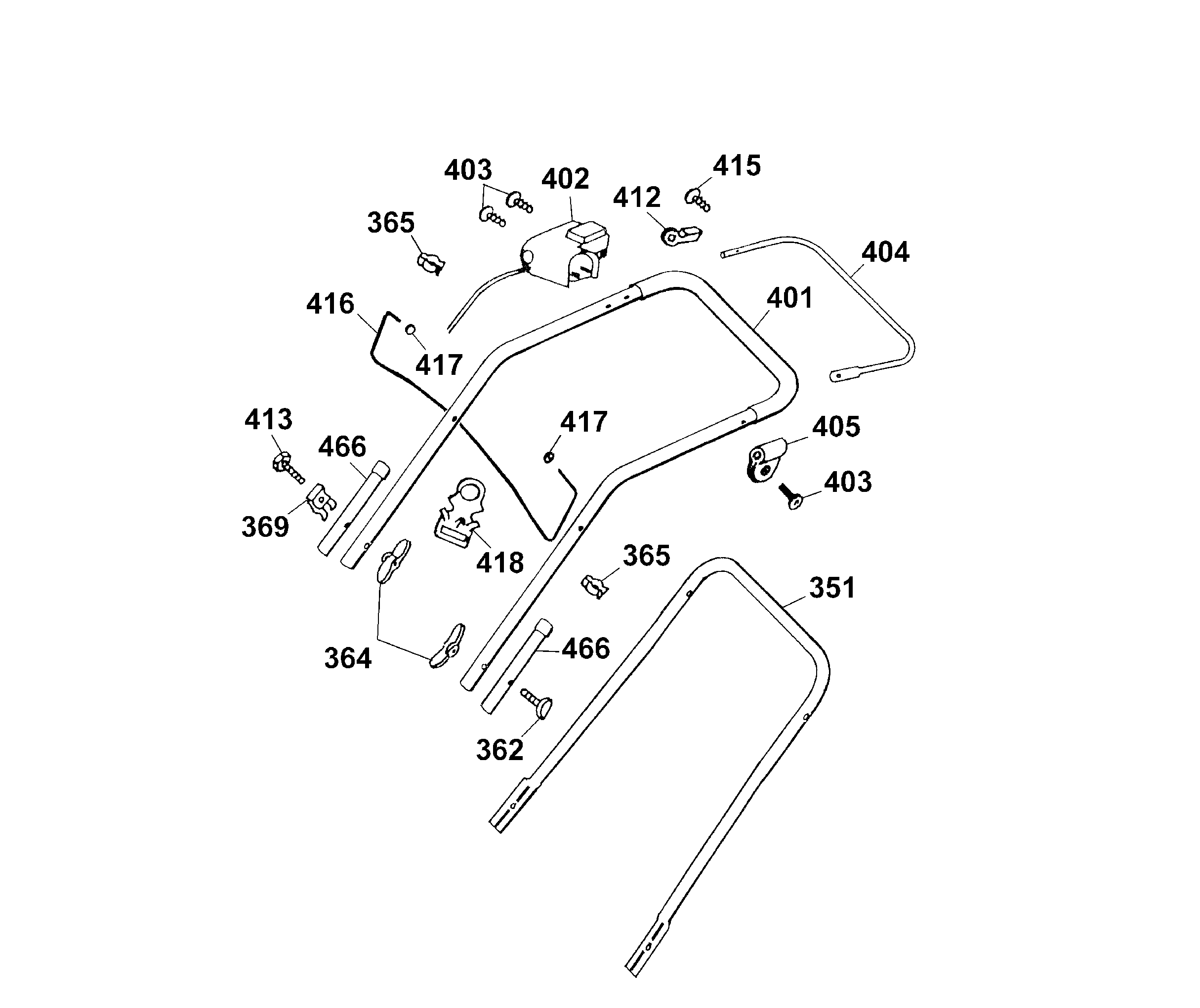

Lista de repuestos para Wolf Mowers Handlebar, Switch




Lista de repuestos


pos.descripciónNúmero de pieza
351Lower Handlebar4011 122
362Connecting Screw4901 101
364Wingnut0016 718
365Cable Clamp4950 307
369bend protection4950 308
401Upper Handlebar4950 026
402Switch-Key4020 050
403Screw0012 625
404Bracket Bracket4317 014
405Clamp-Casing4935 105
412Bushing4940 105
413Screw0010 338
415Screw0015 820
416Shackle3585 100
417Clip3585 503
418Cable Guide4936 323
466Closing Cap6340 125
***Instruction Manual0054 395
