2.38 E
>
Handlebar, Switch

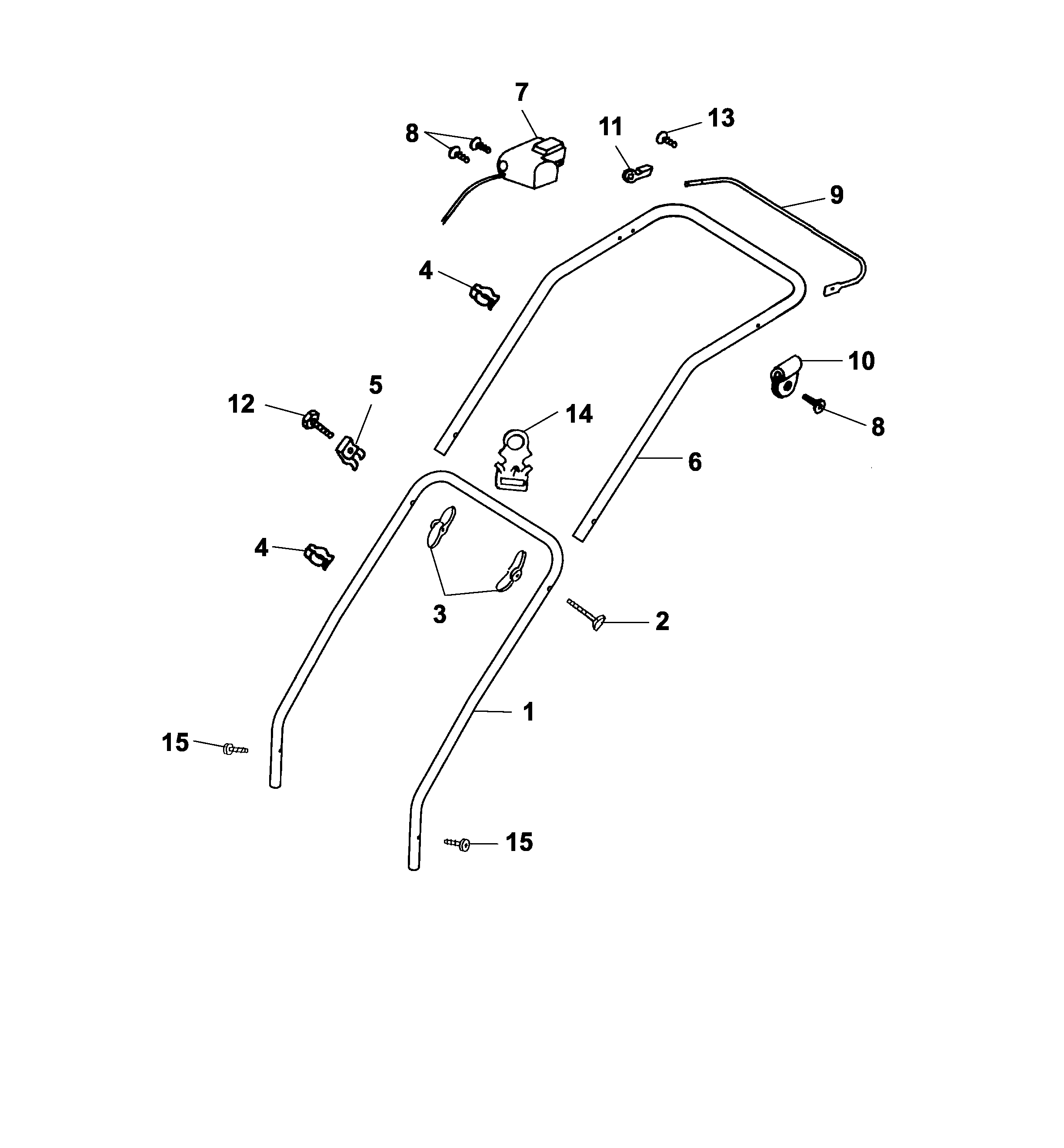

Lista de repuestos para Wolf Mowers Handlebar, Switch
pos.
descripción
Número de pieza
1
Lower Handlebar
3632 112
2
Connecting Screw
4901 101
3
Wingnut
0016 717
4
Cable Clamp
4950 307
5
bend protection
4950 308
6
Upper Handlebar
4961 027
7
Switch-Key
4020 050
8
Screw
0012 883
9
Bracket Bracket
4317 014
10
Clamp-Casing
4935 105
11
Bushing
4940 105
12
Screw
0010 338
13
Screw
0015 820
14
Cable Guide
4936 323
15
Screw
0015 660
***
Instruction Manual
0054 422
