volver a
>
Mowers
>
Electro
>
Without drive up to 38 cm
>
series 2
>
2.32 E
>
Handlebar, Switch

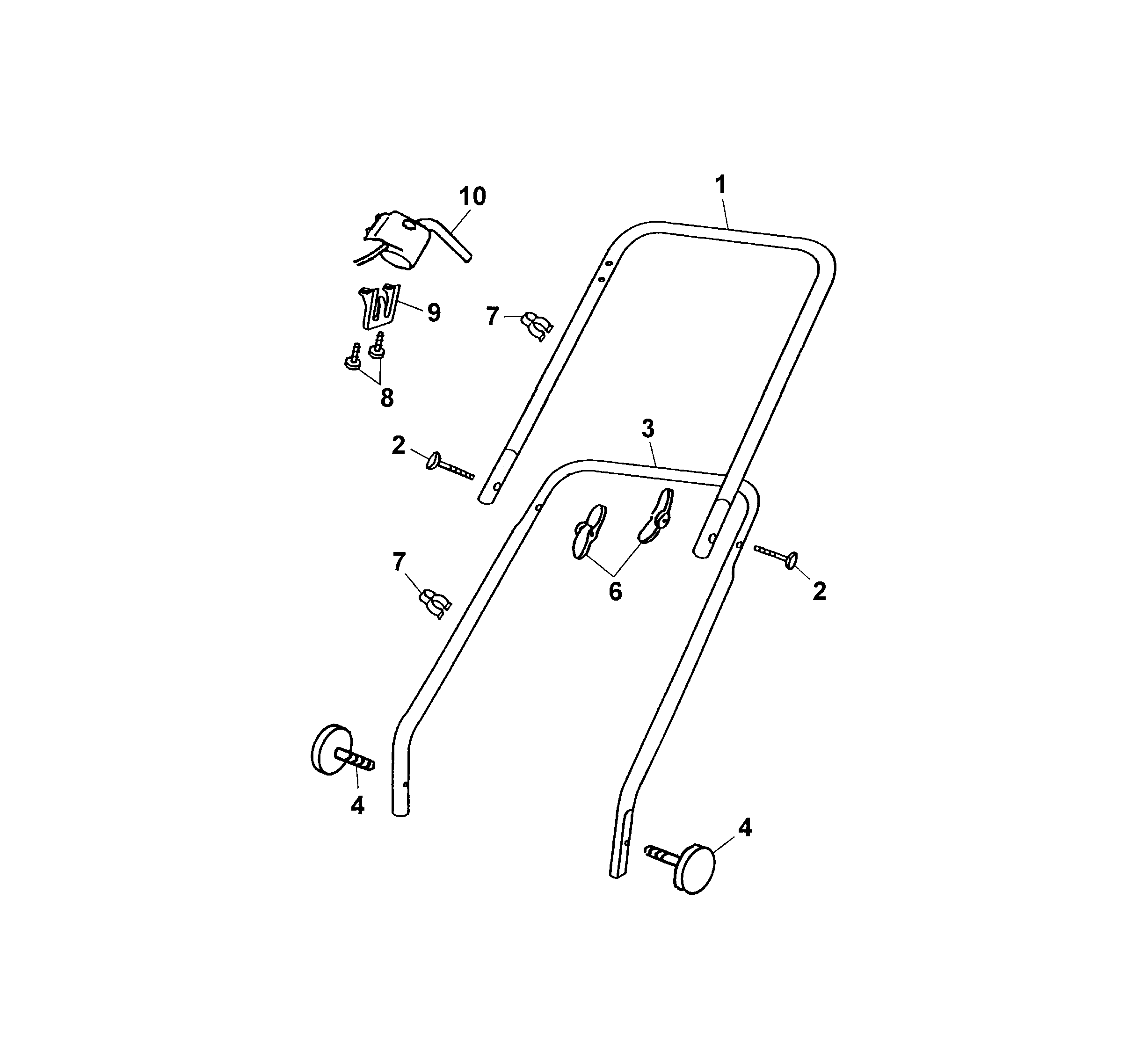

Lista de repuestos para Wolf Mowers Handlebar, Switch
pos.
descripción
Número de pieza
1
Upper Handlebar
4906 020
2
Connecting Screw
4901 101
3
Lower Handlebar
4912 115
4
Handwheel
4950 010
6
Wingnut
0016 717
7
Cable Clamp
4950 307
8
Screw
0012 883
9
Strain Relief
3620 325
10
Switch-Key
3630 061
***
Instruction Manual
0054 302
