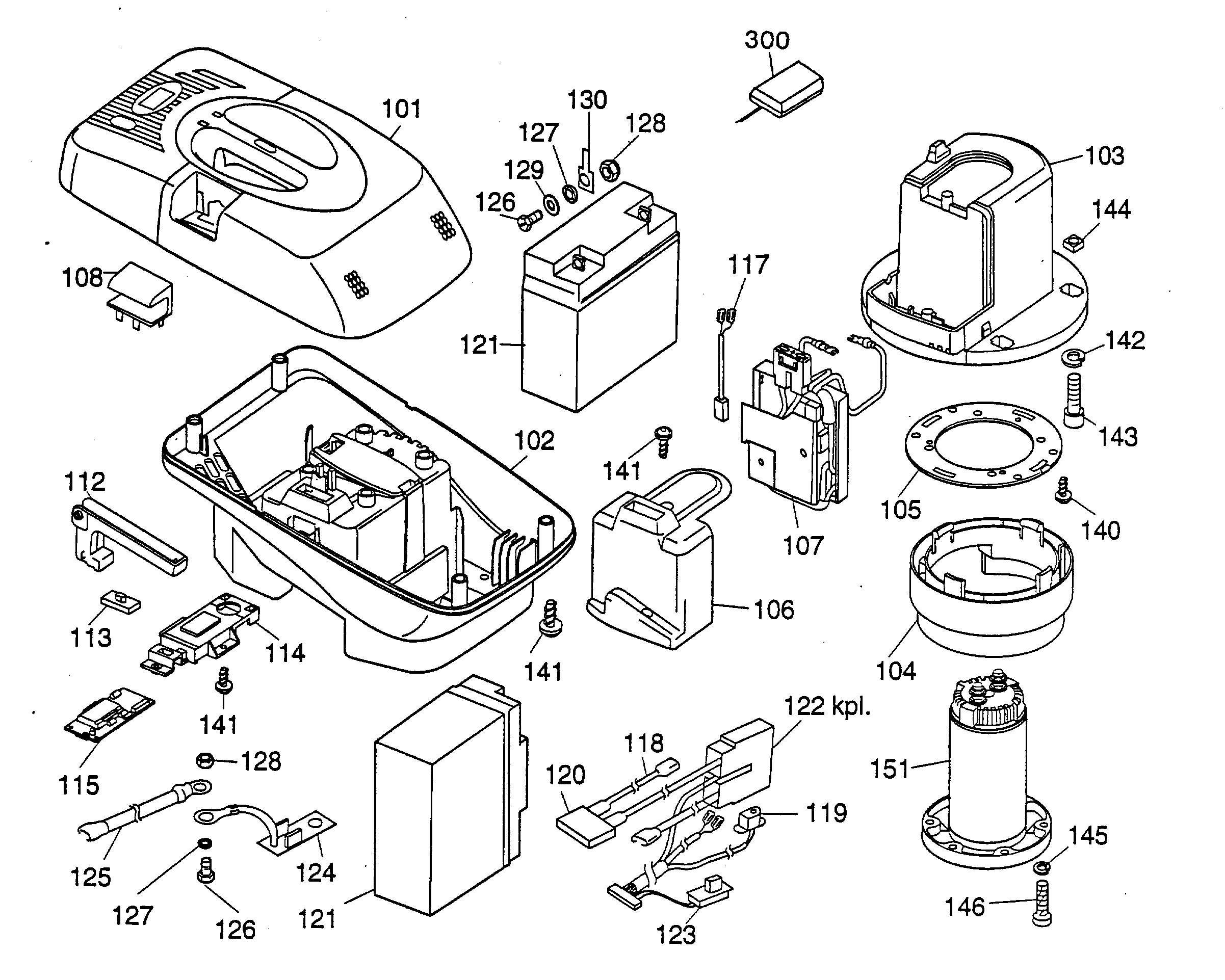

Lista de repuestos para Wolf Mowers Exchange battery
pos.
descripción
Número de pieza
101
Battery Cap Red
4948 304
102
Battery Case
4947 305
103
Motor Holder
4947 302
104
Air-Conduction
4947 111
105
Motor Ring
4947 303
106
Cover For Electronic
4947 307
107
Motor Electronic
4948 065
108
Connector
4947 020
112
Handle
4947 306
113
Switch Cap
4947 316
114
Indicator
4947 314
115
Electr. Fill Indicator
4947 068
117
Cable
4947 120
118
Cable Red
4947 123
119
Charging Bush
4947 131
120
Fuse 40 A
4947 105
121
Battery 17 AH
4943 066
122
Cable Harness
4947 062
123
Sliding Switch
4947 056
124
Board
4947 061
125
Cable
4947 121
126
Screw
0012 863
127
Washer
0017 880
128
Hex. Nut
0016 310
130
Flat Plug
4948 110
140
Screw
0012 890
141
Screw
0012 630
142
Washer Spring
0017 909
143
Screw
0011 344
144
Nut
0016 409
145
Washer Spring
0017 908
146
Screw
0012 610
151
Motor
1055 060
300
Battery Charger (6.42Bai)
4942 072
***
Boost charger SLG 200
4946 070
***
Exchange battery compl. AW17AN
4948 070
