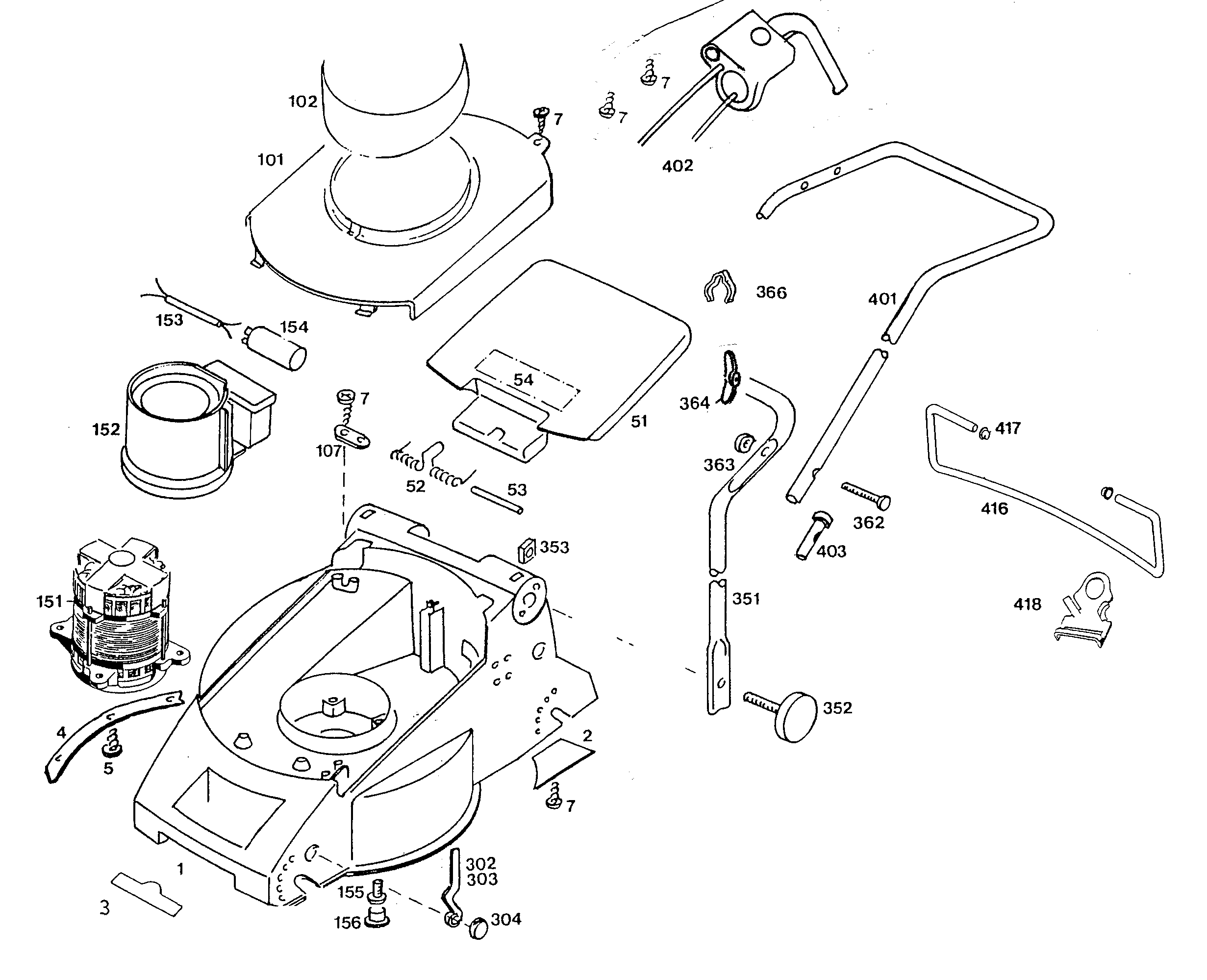

Lista de repuestos para Wolf Mowers Elektro-mowers 32 EK

pos.	descripción	Número de pieza
1	Chassis	4932 340
2	Wind Tunnel Cover	4932 311
3	Wolf-Garten - Label	0051 115
4	Reinforcing Insert	4932 112
5	Screw	0012 899
7	Screw	0012 625
51	Rear Flap	4932 303
52	Spring	4936 217
53	Pivot Pin	4932 208
54	Safety Label	0051 225
101	Chassis Cover	4932 342
102	Motor Covering	4936 305
107	Clamp-Casing	4557 208
151	Motor	1105 050
***	Bearing Shield	1105 100
***	Upper Bearing Shield	1140 110
***	Brake Spring	1142 157
***	Brake	1142 158
152	Air-Conduction	4932 307
153	Wire Connector	3567 214
154	Condenser 12Uf	1117 040
155	Screw	0012 952
156	Insert-Grip	4936 308
302	Height Indicator, Front	4932 504
303	Height Indicator	4932 505
304	Retainer For Height Indicator	4932 511
351	Lower Handlebar	4912 112
352	Handwheel	4950 010
353	Nut	0016 409
362	Screw	0013 525
363	Hollow Disk	0017 275
364	Wingnut	0016 717
366	Clip	6340 312
401	Upper Handlebar	4936 020
402	Switch-Key	4906 055
403	Closing Cap	6340 125
416	Shackle	4936 105
417	Clip	3585 503
418	Strain Relief Switzerland Only	4901 325
***	operator instructions	0054 182
***	Poly Bag With Operator Instruct.	4932 030
