> Mowers > Petrol > Drive from 43 cm on > Esprit > Esprit 46 BA Fixspeed > Q 48 Fixspeed > Cylinder assembly

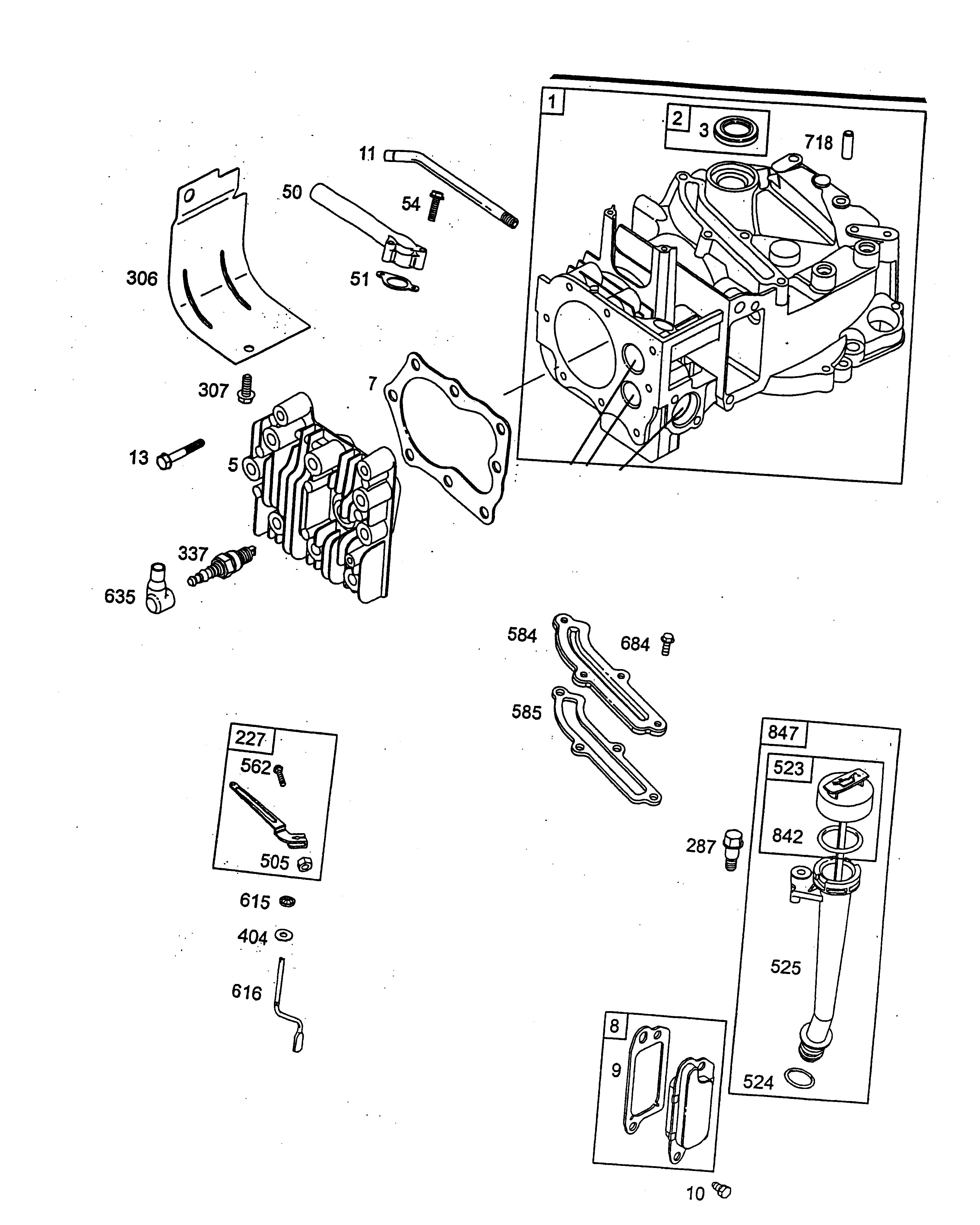

Lista de repuestos para Wolf Mowers Cylinder assembly




Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder2069 430
2Bush2059 102
3Oil Seal2057 352
5Head-Cylinder2069 407
7Gasket-Cylinder Head2069 334
8Breather Assembly2069 037
9Seal2058 301
10Screw2058 302
11Breather Tube2069 418
13Screw2069 404
50Pipe2069 168
51Seal2063 207
54Screw2069 414
227Governor Lever2069 034
287Screw2058 312
306Shield - Cylinder2069 401
307Screw2063 319
337Plug-Spark2058 305
404Washer2063 303
505Nut2063 304
523Oil Dipstick Gasket2059 206
524Seal-Dipstick Tube2056 175
525Tube - Dipstick2063 212
562Bolt2063 121
584Cover Breather2069 427
585Seal2069 331
615Arm2069 400
616Adjustable Lever2069 431
635Spark Plug Socket1034 435
684Screw2063 319
718Pin-Counterweight2063 320
842Seal-Dipstick Tube1034 430
847Oil Filler Assy.2069 036
