> Mowers > Electro > Without drive up to 38 cm > Picco > Picco 32 E > Cover, motor, blade

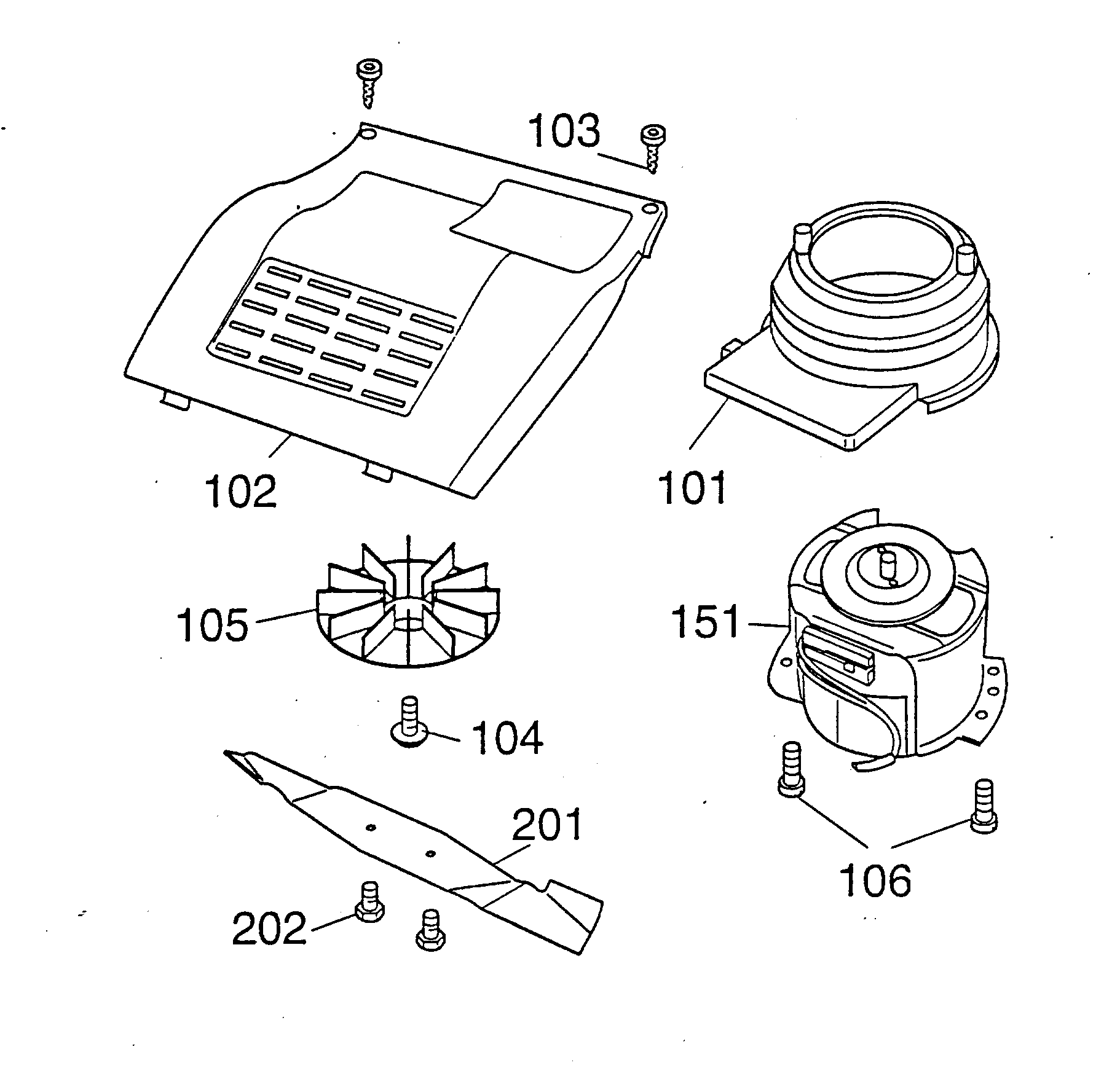

Lista de repuestos para Wolf Mowers Cover, motor, blade




Lista de repuestos


pos.descripciónNúmero de pieza
101Air-Conduction4901 304
102Motor Cover4901 301
103Screw0012 625
104Screw0010 680
105Aerator4901 305
106Screw0012 610
151Motor1104 060
201Blade4901 095
202Hex. Screw M6X160010 366
***Poly Bag With Operator Manual4901 025
***Instruction Manual0054 066
***Instruction Manual0054 107
***Self-Assembly Parts4901 024
***Poly Bag With Self-Assembly Parts4901 034
***Self-Assembly Parts4901 027
***Assembly Instructions4901 217
