Picco 32 Accu
>
Cover, Motor, Blade

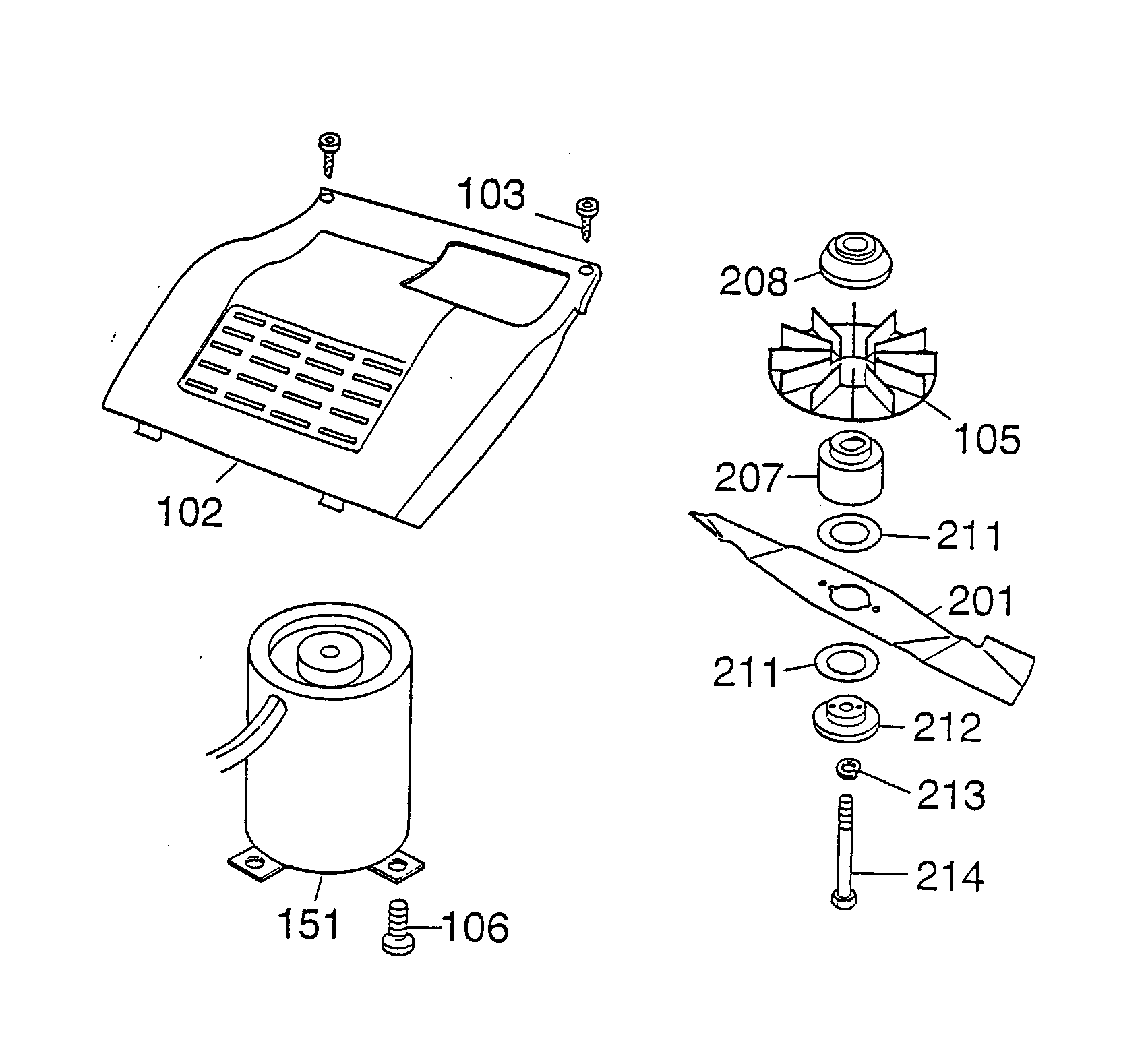

Lista de repuestos para Wolf Mowers Cover, Motor, Blade
pos.
descripción
Número de pieza
102
Motor Cover
4911 301
103
Screw
0012 625
105
Aerator
4934 311
106
Screw
0012 876
151
Motor
1059 050
201
Blade
4911 095
207
Coupling
4911 053
208
Distance Bush
4911104
211
Clutch Facing
4125 401
212
Coupling Disk
4911 103
213
Washer Spring
0017 909
214
Screw
0010 389
***
Boost Charger Slg 300
4911 072
***
Self-Assembly Parts
4911 026
***
Instruction Manual
0054 068
***
Assembly Instructions
4911 201
