> Mowers > Electro > Drive > Premio > Premio 40 EA > Chassis

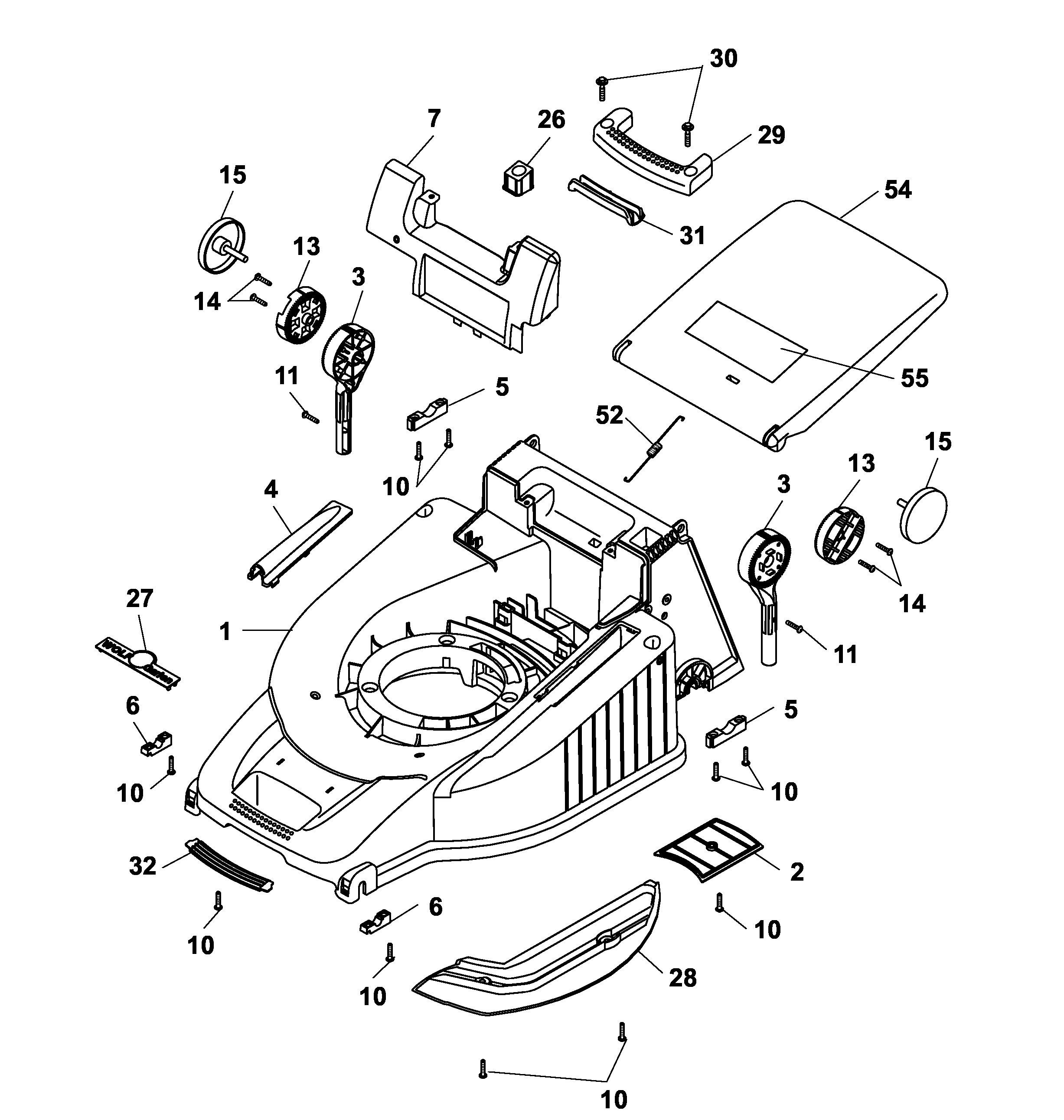

Lista de repuestos para Wolf Mowers Chassis




Lista de repuestos


pos.descripciónNúmero de pieza
1Chassis4005 300
2V-Belt Cover4961 324
3Handlebar Holder4950 030
4Air conduction4601 315
5Shell, Rear4961 313
6Front Support Shell4961 312
7Chassis Cover4001 310
10Screw0012 631
11Screw0010 931
13Adjusting Ring4950 126
14Screw0010 933
15Handwheel4950 010
26Button4961 304
27Wolf-Garten - Label0051 115
28Wind Tunnel Cover4001 311
29Rear Carrying Handle4601 303
30Screw0012 639
31Rear Handle Spill4601 308
32Front Handle Spill4601 309
52Tension Spring4961 108
54Rear Flap Red4628 302
55Safety Label0051 244
