WGI 40 E
>
Chassis

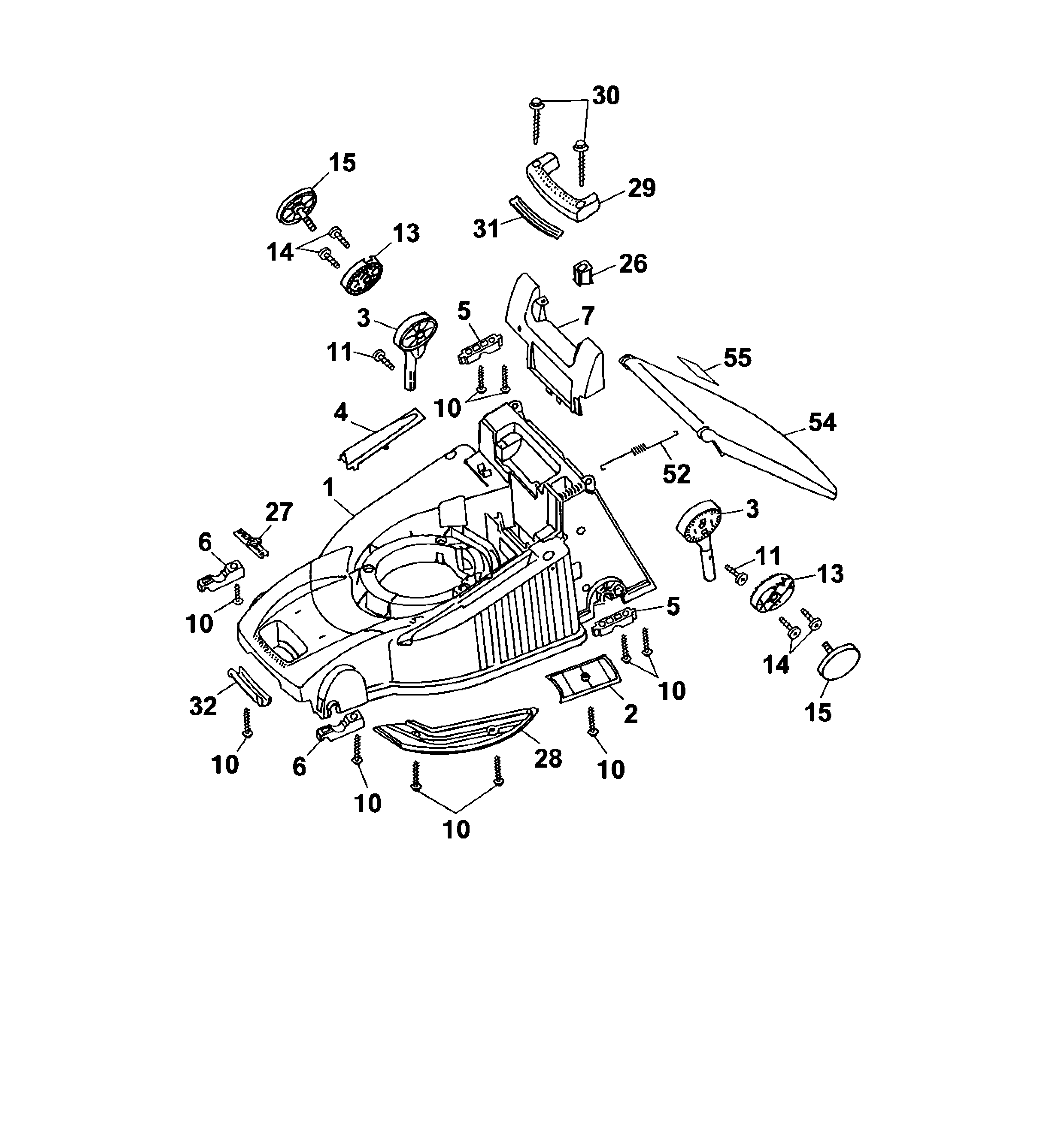

Lista de repuestos para Wolf Mowers Chassis
pos.
descripción
Número de pieza
1
Chassis
4001 300
2
V-Belt Cover
4961 324
3
Handlebar Holder
4950 030
4
Air conduction
4601 315
5
Shell, Rear
4961 313
6
Front Support Shell
4961 312
7
Chassis Cover
4001 310
10
Screw
0012 631
11
Screw
0010 931
13
Adjusting Ring
4950 126
14
Screw
0010 933
15
Handwheel
4950 010
26
Button
4961 304
27
Wolf-Garten - Label
0051 115
28
Wind Tunnel Cover
4001 311
29
Rear Carrying Handle
4601 303
30
Screw
0012 639
31
Rear Handle Spill
4601 308
32
Front Handle Spill
4601 309
52
Tension Spring
4961 108
54
Rear Flap Red
4628 302
55
Safety Label
0051 225
