> Mowers > Electro > Without drive from 40 cm on > Esprit > Esprit 46 E > Chassis

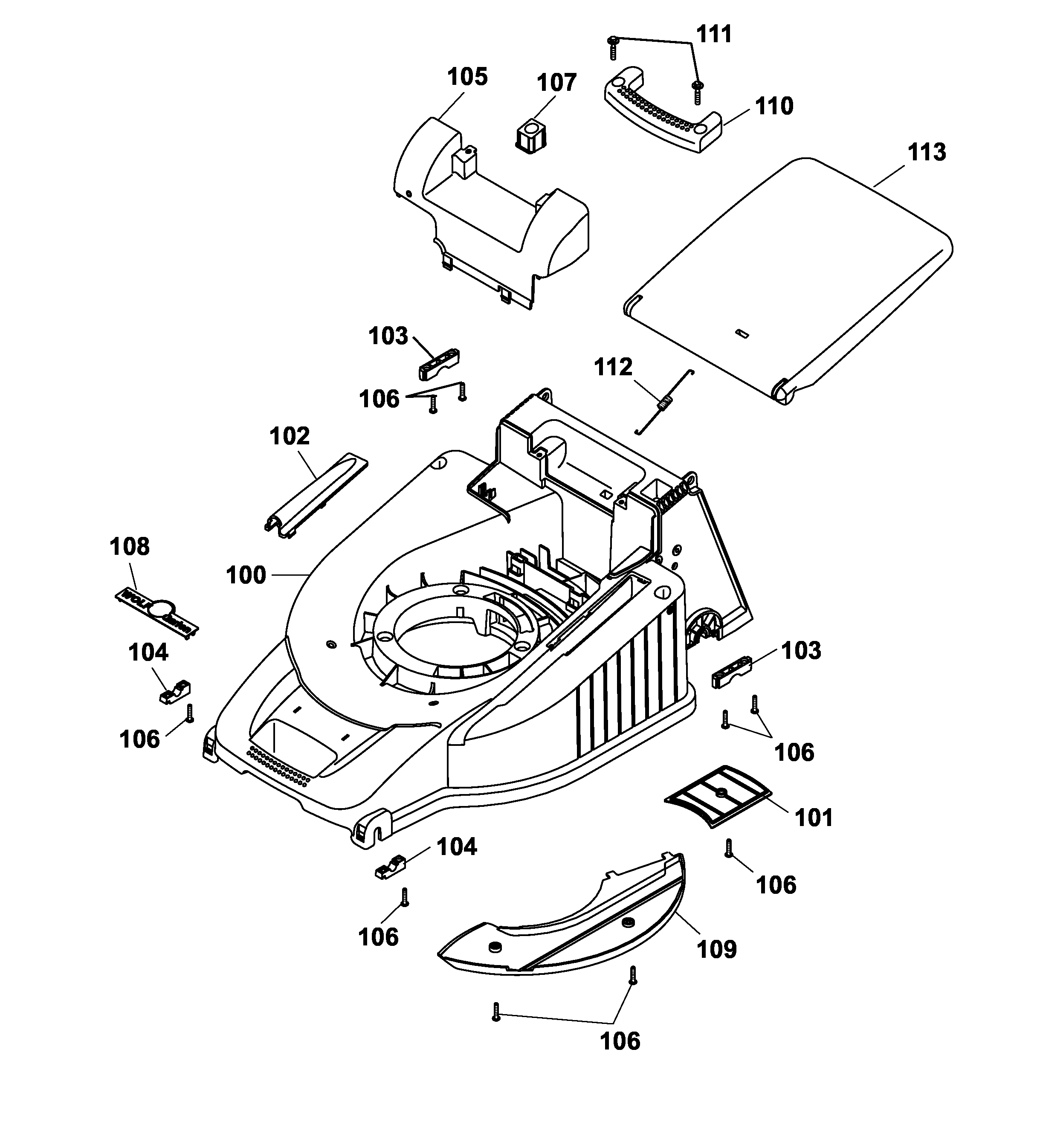

Lista de repuestos para Wolf Mowers Chassis




Lista de repuestos


pos.descripciónNúmero de pieza
100Chassis4601 320
101V-Belt Cover4961 324
102Air conduction4601 315
103Shell, Rear4961 313
104Front Support Shell4961 312
105Chassis Cover4601 310
106Screw0012 631
107Button4961 304
108Wolf-Garten - Label0051 115
109Wind Tunnel Cover4601 311
110Rear Carrying Handle4601 303
111Screw0012 639
112Tension Spring4961 108
113Rear Flap4628 322
