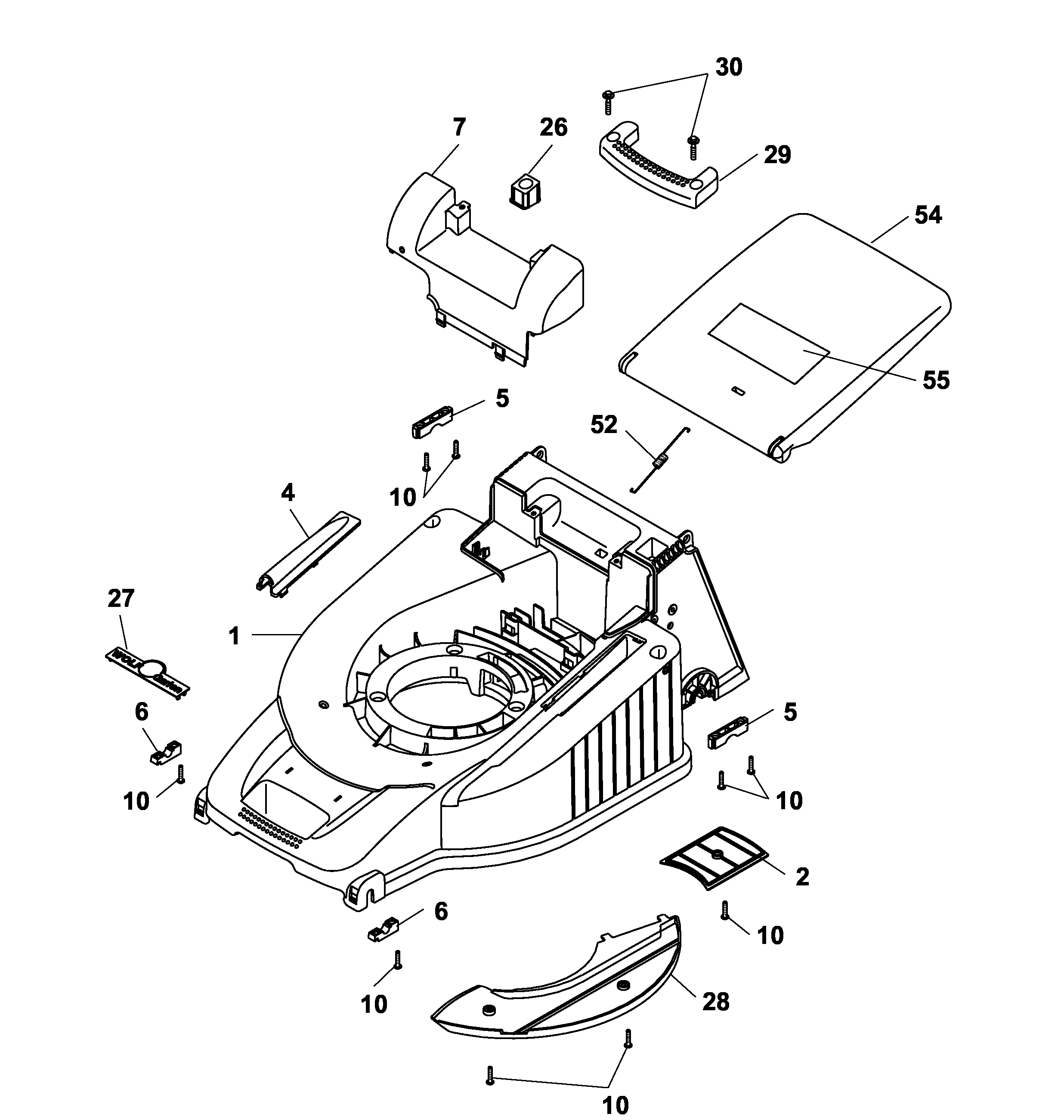

Lista de repuestos para Wolf Mowers Chassis




Lista de repuestos


pos.descripciónNúmero de pieza
1Chassis4601 300
2V-Belt Cover4961 324
4Air conduction4601 315
5Shell, Rear4961 313
6Front Support Shell4961 312
7Chassis Cover4601 310
8Screw0012 631
26Button4961 304
27Wolf-Garten - Label0051 115
28Wind Tunnel Cover4601 311
29Rear Carrying Handle4601 303
30Screw0012 639
52Tension Spring4961 108
54Rear Flap Yellow4620 302
55Safety Label0051 244
