volver a
>
Mowers
>
Electro
>
Without drive from 40 cm on
>
Esprit
>
Esprit 40 E
>
Chassis

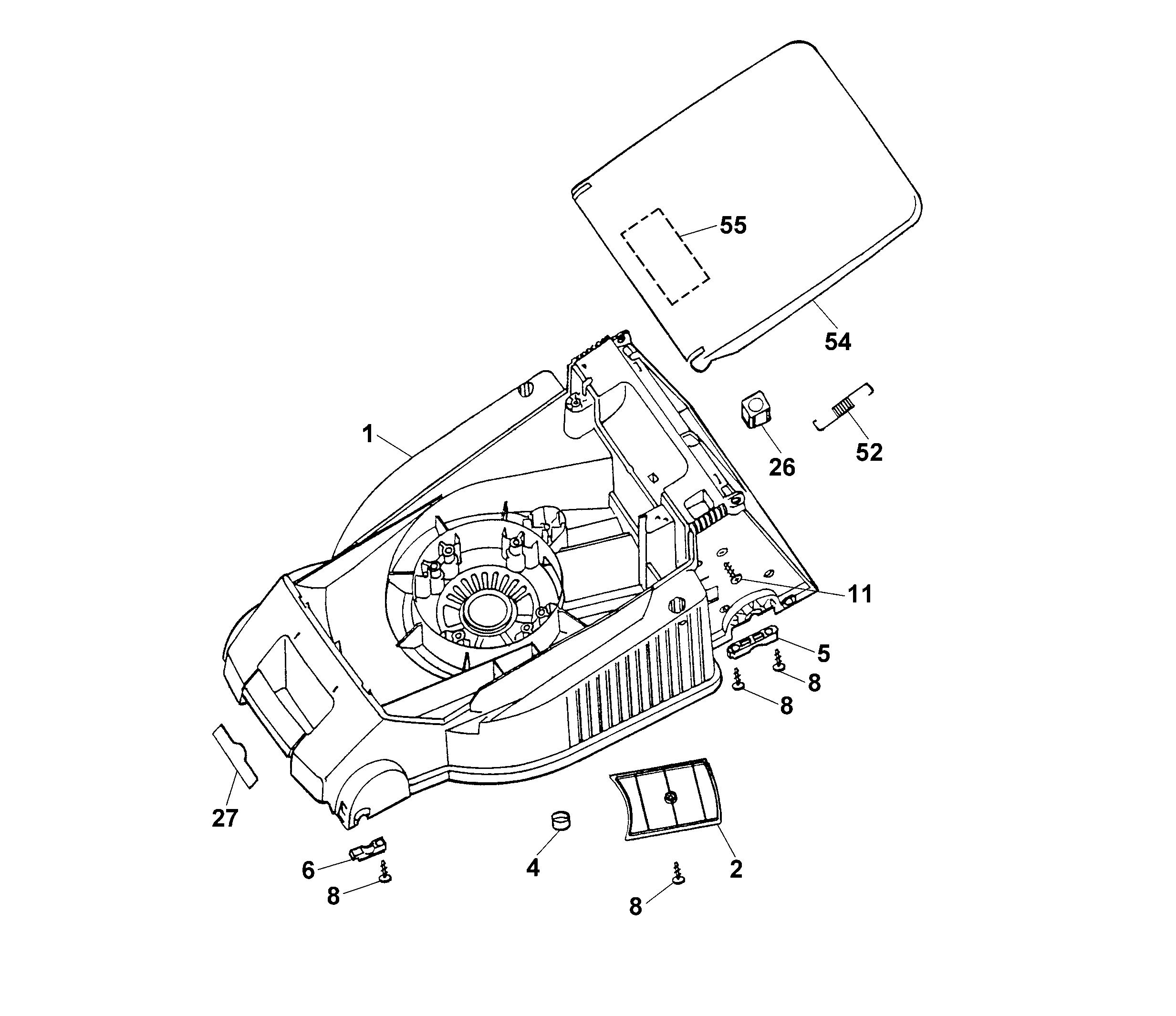

Lista de repuestos para Wolf Mowers Chassis
pos.
descripción
Número de pieza
1
Chassis
4961 300
2
V-Belt Cover
4961 324
4
Plug
4961 305
5
Shell, Rear
4961 313
6
Front Support Shell
4961 312
8
Screw
0012 631
11
Screw
0010 931
26
Button
4961 304
27
Wolf-Garten - Label
0051 115
52
Tension Spring
4961 106
54
Rear Flap Yellow
4620 302
55
Safety Label
0051 225
