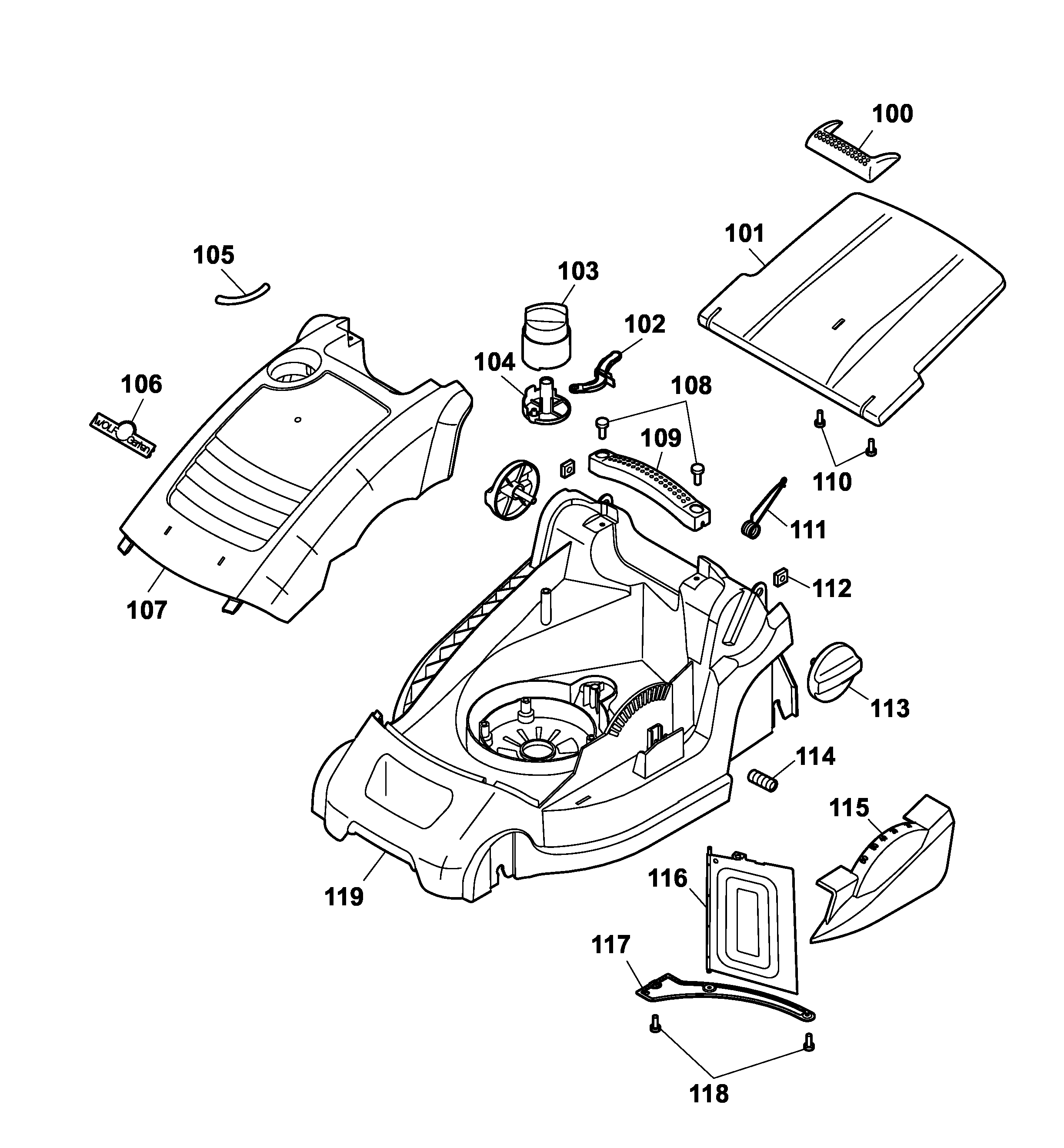

Lista de repuestos para Wolf Mowers Chassis




Lista de repuestos


pos.descripciónNúmero de pieza
100Handle4927 316
101Rear Flap4907 302
102Couple4907 333
103Mulch Knob Upper4907 330
104Mulch Knob Lower4907 332
105Label "mulch-collect"4907 206
106Wolf-Garten - Label0051 115
107Cover Plate4907 304
108Screw0012 639
109Carrying Handle4907 306
110Screw0012 625
111Spring4907 106
112Nut0016 409
113Handwheel4907 032
114Spring4907 113
115Cover4907 308
116Mulch Cap4907 038
117Sheet4907 110
118Screw0012 625
119Chassis4907 300
