volver a
>
Mowers
>
Electro
>
Without drive up to 38 cm
>
series 2
>
2.36 EK
>
Chassis

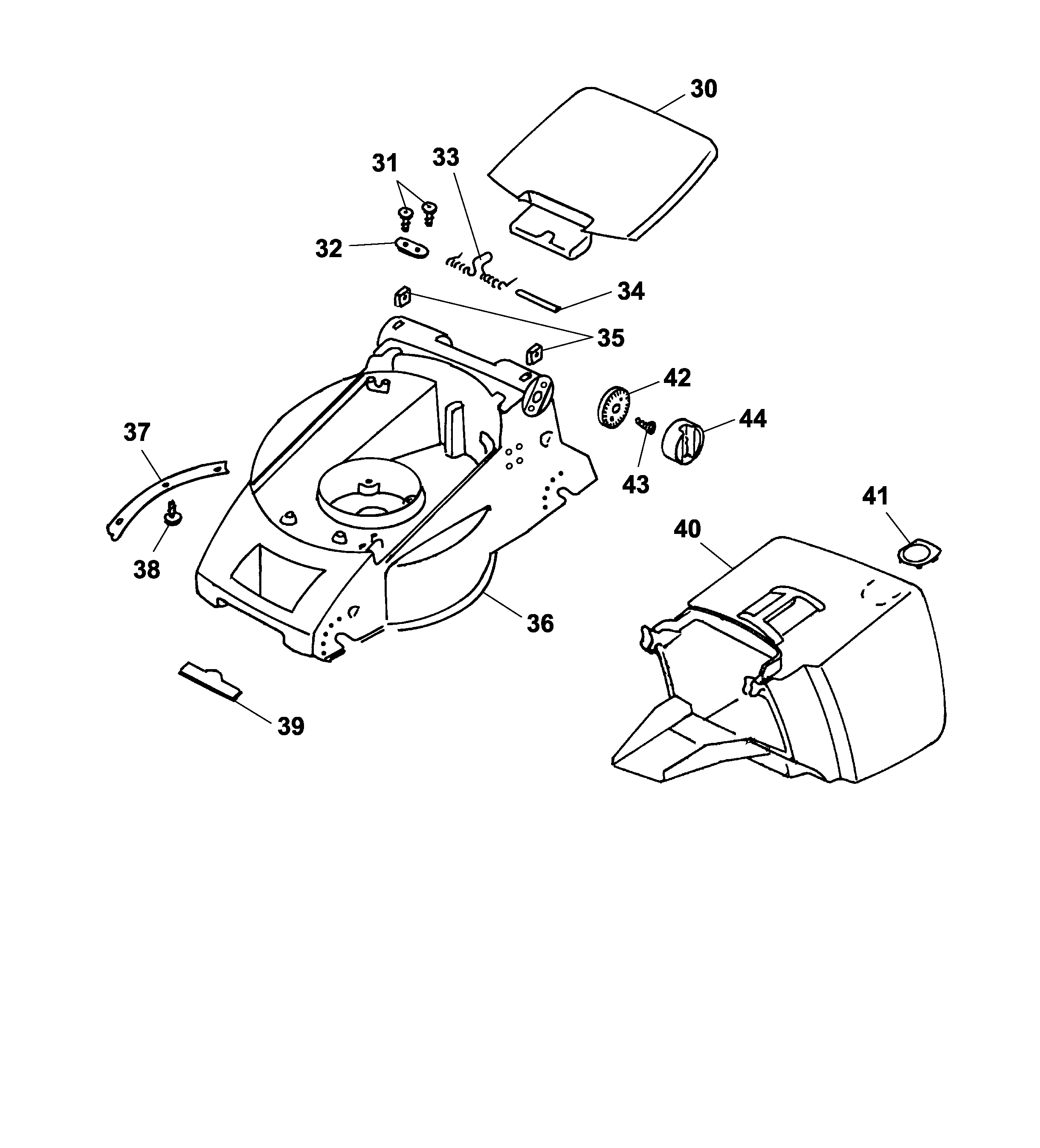

Lista de repuestos para Wolf Mowers Chassis
pos.
descripción
Número de pieza
30
Rear Flap
4906 306
31
Screw
0012 625
32
Clamp-Casing
4557 208
33
Spring
4936 217
34
Pivot Pin
4932 208
35
Nut
0016 409
36
Chassis
4936 390
37
Reinforcing Insert
4936 112
38
Screw
0012 899
39
Wolf-Garten - Label
0051 115
40
Grass Box
4936 066
41
Blanking Plug
4906 315
42
Ring
4936 125
43
Screw
0012 625
44
Adjusting Ring
4950 126
