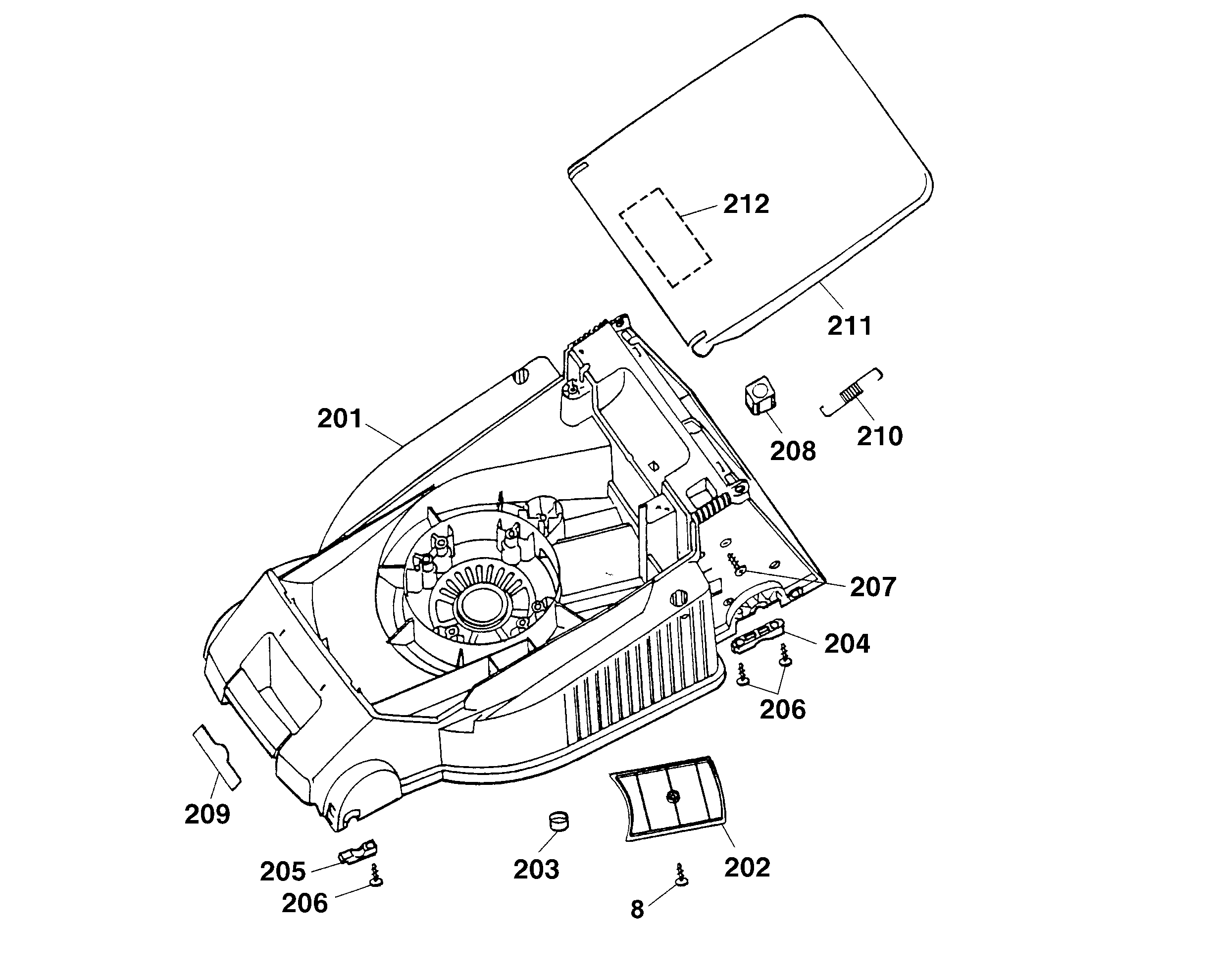

Lista de repuestos para Wolf Mowers Chassis




Lista de repuestos


pos.descripciónNúmero de pieza
201Chassis4961 340
202V-Belt Cover4961 324
203Plug4961 305
204Shell, Rear4961 313
205Front Support Shell4961 312
206Screw0012 631
207Screw0010 931
208Button4961 304
209Wolf-Garten - Label0051 115
210Tension Spring4961 108
211Rear Flap Yellow4620 322
212Safety Label0051 244
