> Mowers > Petrol > Drive from 43 cm on > Others > B 46 TBA > Chassis

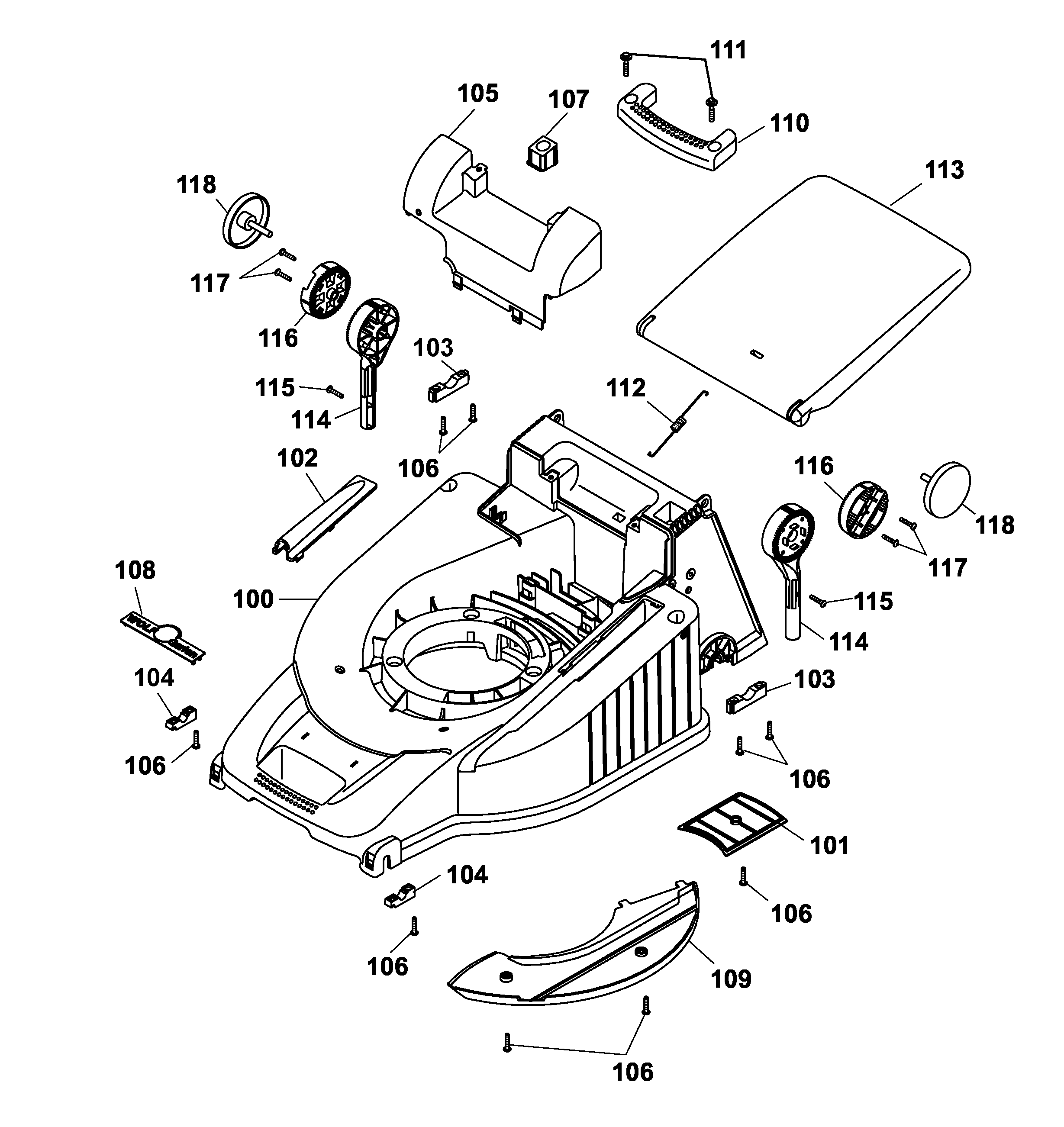

Lista de repuestos para Wolf Mowers Chassis




Lista de repuestos


pos.descripciónNúmero de pieza
100Chassis4605 320
101V-Belt Cover4961 324
102Air conduction4601 315
103Shell, Rear4961 313
104Front Support Shell4961 312
105Chassis Cover4601 310
106Screw0012 631
107Button4961 304
108Wolf-Garten - Label0051 115
109Wind Tunnel Cover4601 311
110Rear Carrying Handle4601 303
111Screw0012 639
112Tension Spring4961 108
113Rear Flap Yellow4620 322
114Handlebar Holder4950 030
115Screw0010 931
116Adjusting Ring4950 126
117Screw0010 933
118Handwheel4950 010
