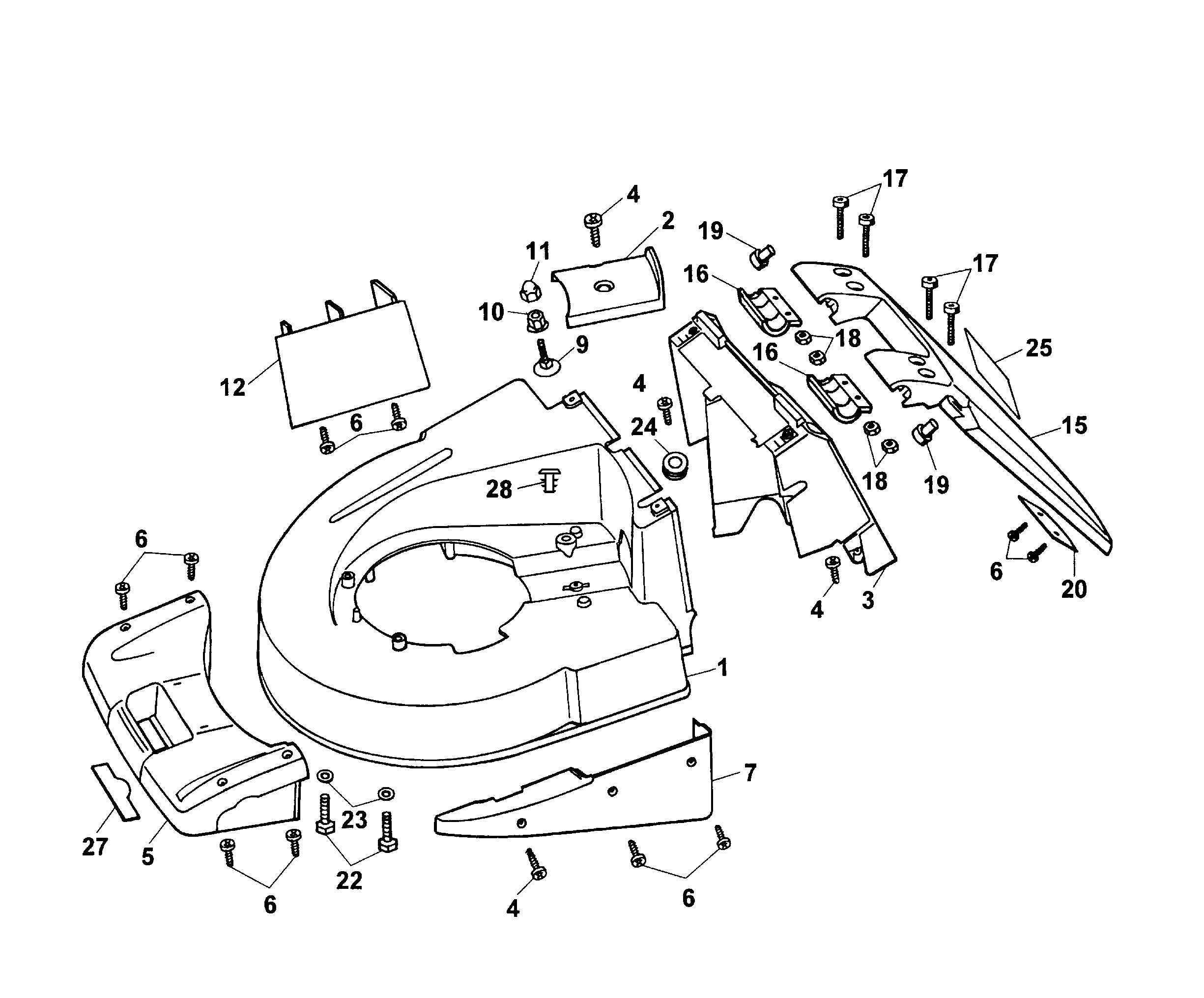

Lista de repuestos para Wolf Mowers Chassis




Lista de repuestos


pos.descripciónNúmero de pieza
1Chassis6450 420
2V-Belt Cover6450 307
3Deflector6450 340
4Screw M 5X200012 607
5Front Panel6450 302
6Screw 5X120012 605
7Cover, Left6450 304
9Screw0013 650
10Nut0016 385
11Sleeve M 86340 126
12Wind Tunnel Insert6450 303
15Rear Flap6450 911
16Clamp-Casing6450 311
17Screw M5X400012 825
18Hex. Nut M 50016 210
19Rubber Buffer6450 316
20Counterweight6450 149
22Hex Screw M8X30 Din 933 8.80010 399
23Washer A 8,4 Din 1250017 123
24Rubber Funnel6450 314
25Safety Label0051 246
27Wolf-Garten - Label0051 115
28Lamellar Plug4332 307
