Picco 32 Accu
>
Chassis, grass box

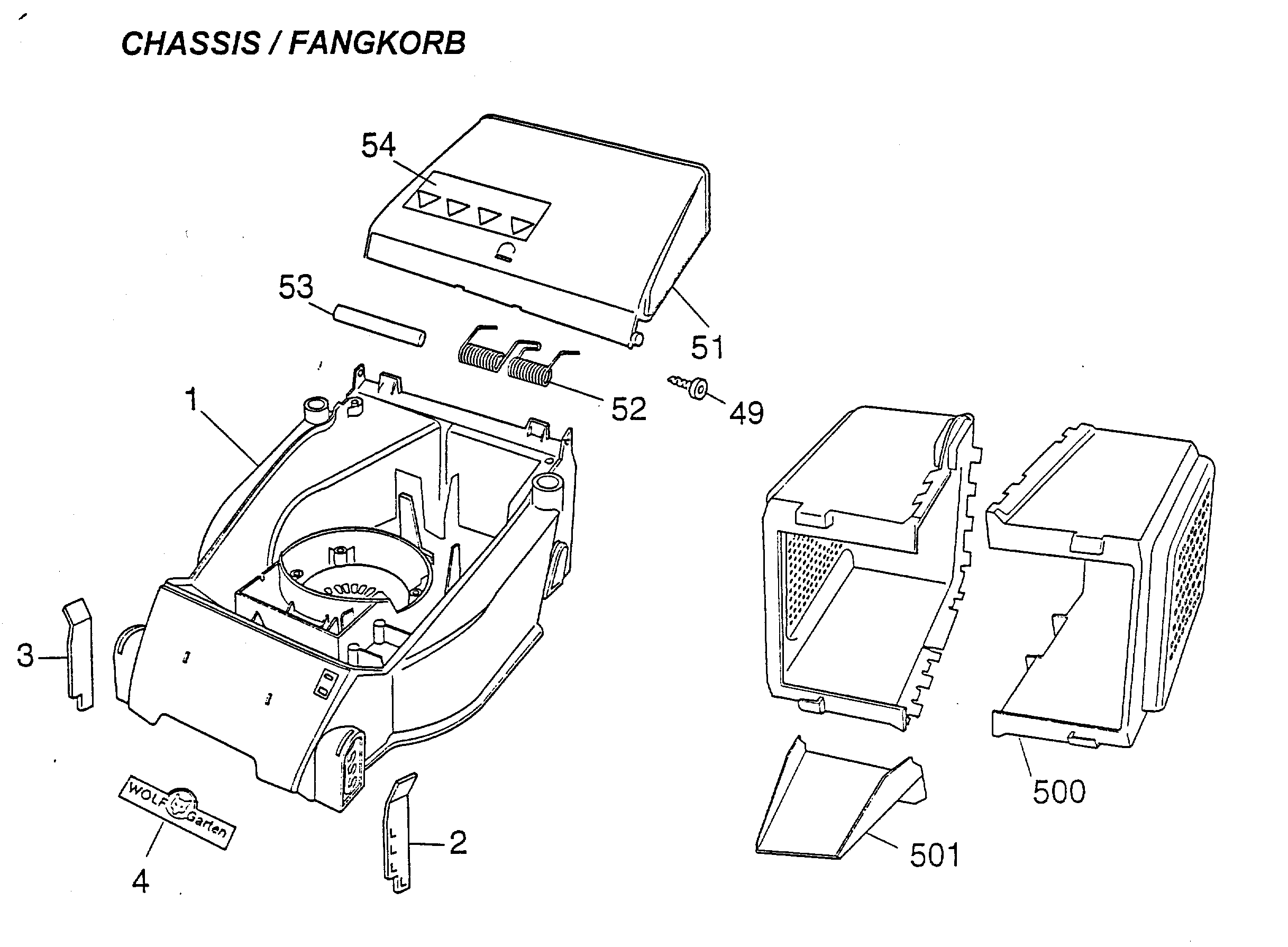

Lista de repuestos para Wolf Mowers Chassis, grass box
pos.
descripción
Número de pieza
1
Chassis
4901 300
2
Bracket, Left
4901 309
3
Bracket, Right
4901 308
4
Wolf-Garten - Label
0051 115
49
Screw
0012 622
51
Rear Flap
4901 056
52
Leg Spring
4901 100
53
Pivot Pin
4932 208
54
Safety Label
0051 230
500
Grass Box Half*
4901 303
501
Chute
4901 307
