> Mowers > Petrol > Without drive up to 42 cm > Moto-Verte > 42 Pro > FC 150 V > Carburetor

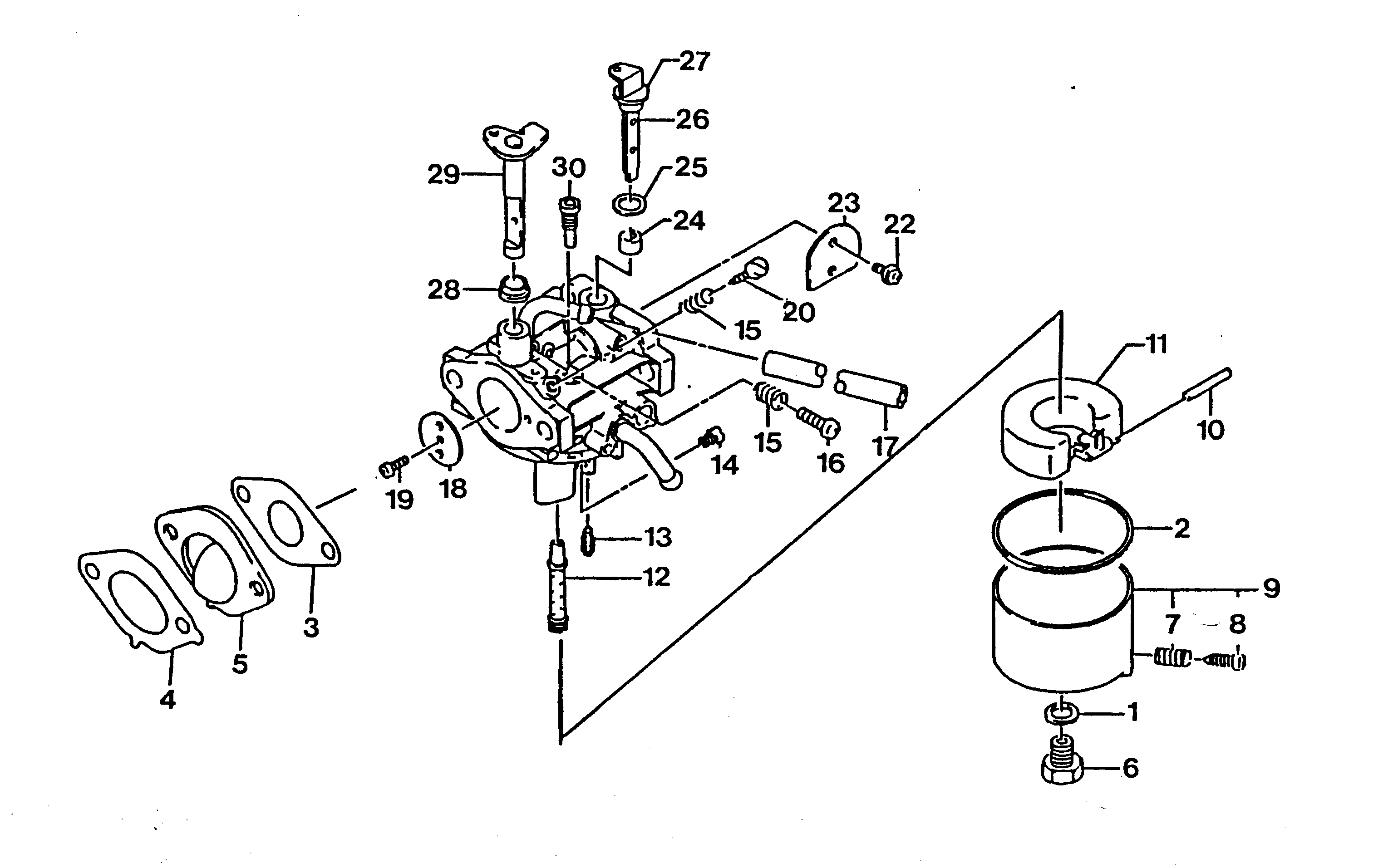

Lista de repuestos para Wolf Mowers Carburetor




Lista de repuestos


pos.descripciónNúmero de pieza
1Seal2090 470
2Seal2090 467
3Seal2095 450
4Seal2095 451
5Insulator2090 473
6Screw2090 469
7Spring2090 456
8Bowl Drain Screw2090 471
9Float Bowl2090 468
10Float Pin2090 466
11Float-Carburetor2090 465
12Nozzle Jet2090 463
13Kit-Idle Mixture2095 452
14Main Jet2090 462
15Spring2090 456
16Screw2090 461
17Line-Fuel2090 472
18Throttle Valve2090 458
19Screw2090 459
20Adjusting Screw2090 455
22Screw2090 452
23Choker Valve2095 453
24Retainer-E Ring2090 453
25Gasket2095 454
26Choker Shaft2095 455
27Retainer-E Ring2095 456
28Shell2090 460
29Throttle Shaft2090 457
30Nozzle2090 454
***Carburetor2095 056
