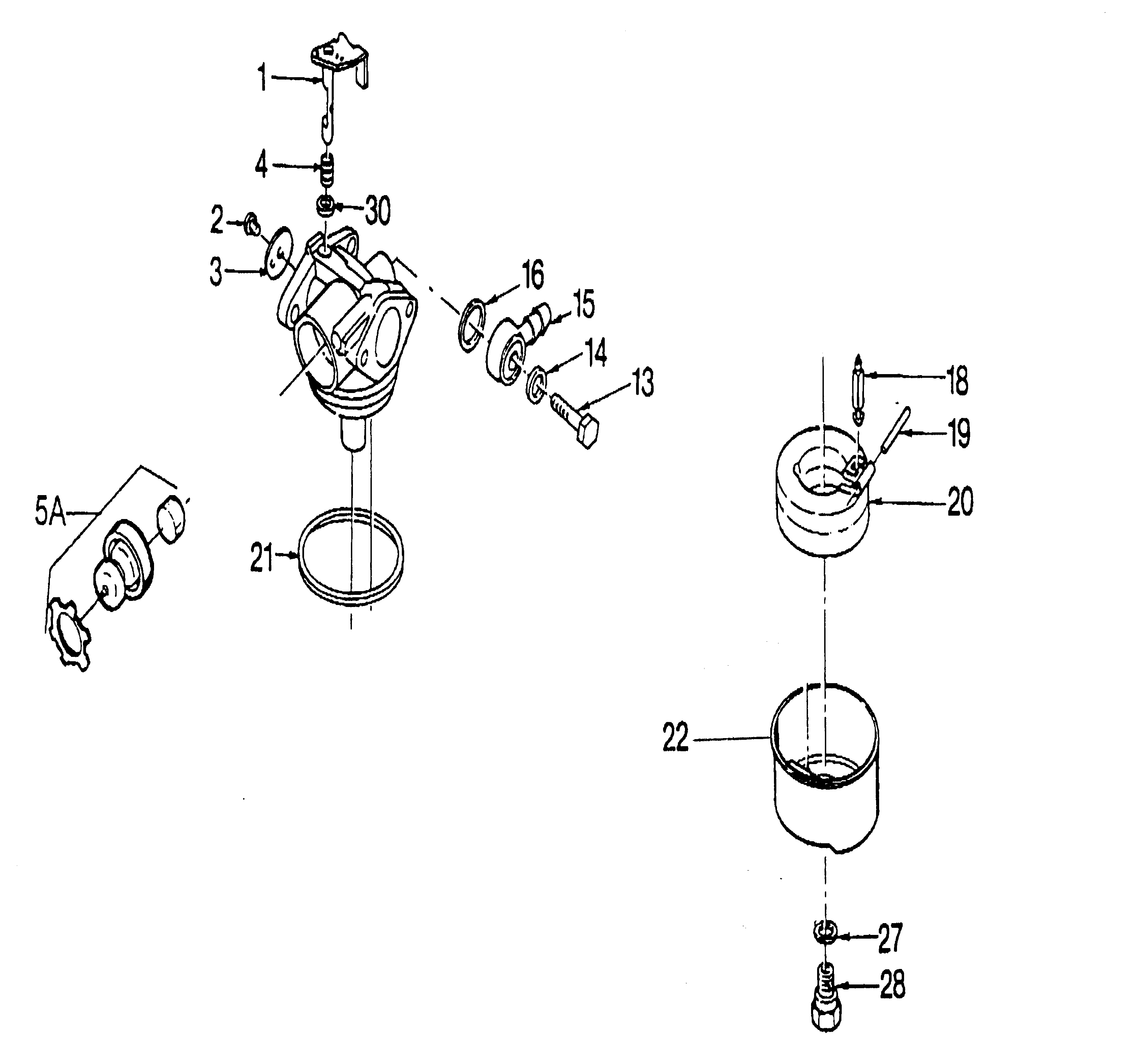

Lista de repuestos para Wolf Mowers Carburetor

pos.	descripción	Número de pieza
1	Throttle Shaft	1032 492
2	Screw	2031 460
3	Throttle Valve Plate	2031 433
4	Spring	2085 411
5A	Primer Bulb & Retainer	2031 022
13	Screw	1032 439
14	Seal	1032 438
15	Inlet Pipe-End	1032 437
16	Seal	2031 466
18	Fuel Needle	2031 471
19	Float Shaft	1032 443
20	Float-Carburetor	2031 470
21	Seal	1032 452
22	Float Bowl	1032 450
27	Seal	2034 142
28	Main Jet	2031 447
30	Dust Seal	1038 414
***	Carburetor	2031 228
