> Mowers > Petrol > Without drive up to 42 cm > series 2 > 2.42 B, Good-Line > Sprint 40 Fixspeed > Carburetor, Fuel tank

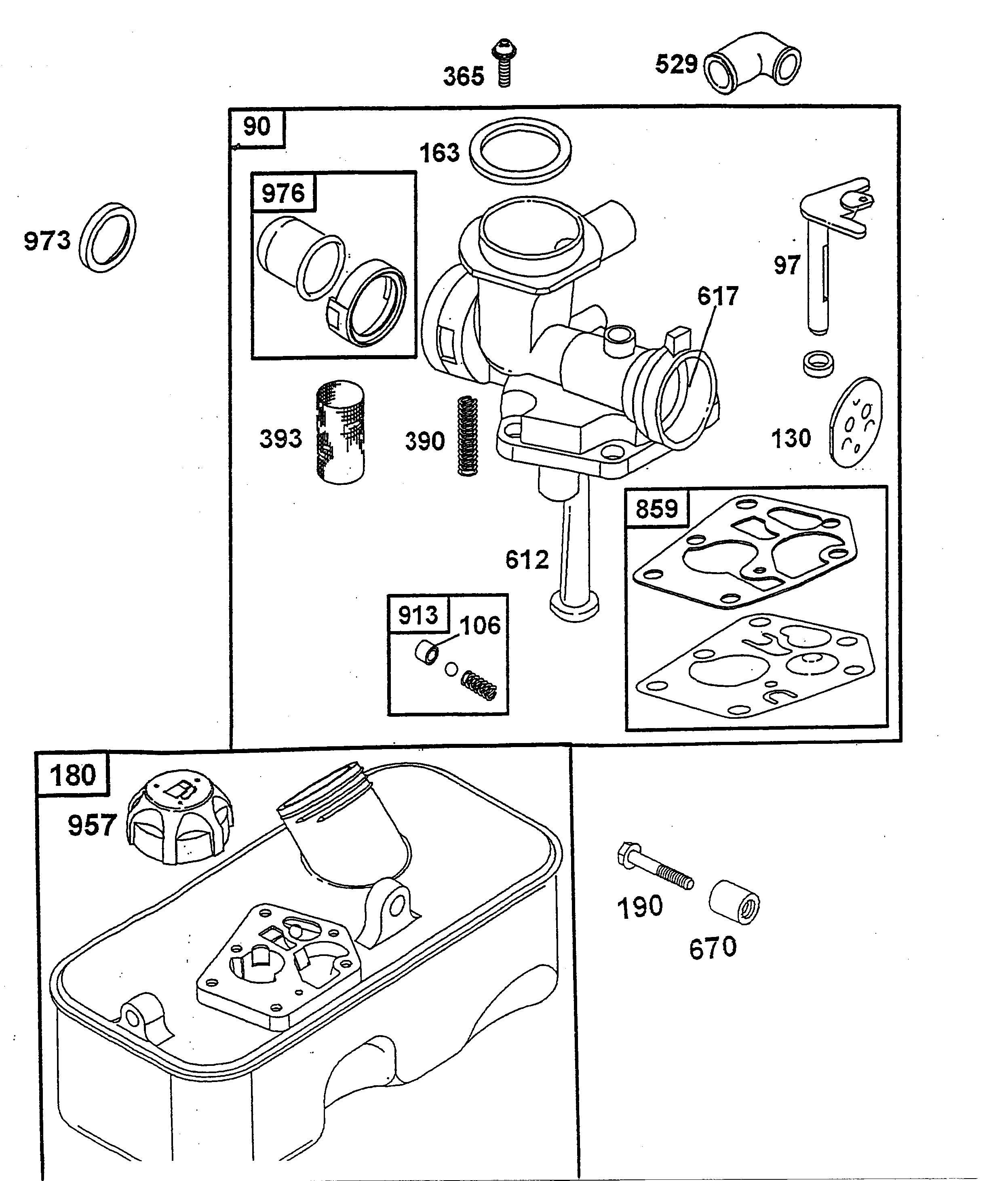

Lista de repuestos para Wolf Mowers Carburetor, Fuel tank




Lista de repuestos


pos.descripciónNúmero de pieza
90Carburetor2056 056
97Kit-Choke Shaft2056 145
106Seal2056 146
130Throttle Valve2056 147
163Seal2056 148
180Fuel Tank2056 055
190Screw2079 104
365Screw2056 149
390Spring2056 150
393Screen-Rotating2056 151
529Angle2056 152
612Pipe2056 154
617Seal2056 155
670Shell2079 103
859Membrane W. Seal2056 417
913Seat-Check Valve2056 156
957Fuel Cap2056 144
973Retainer-E Ring2079 106
976Primer Bulb & Retainer2079 011
