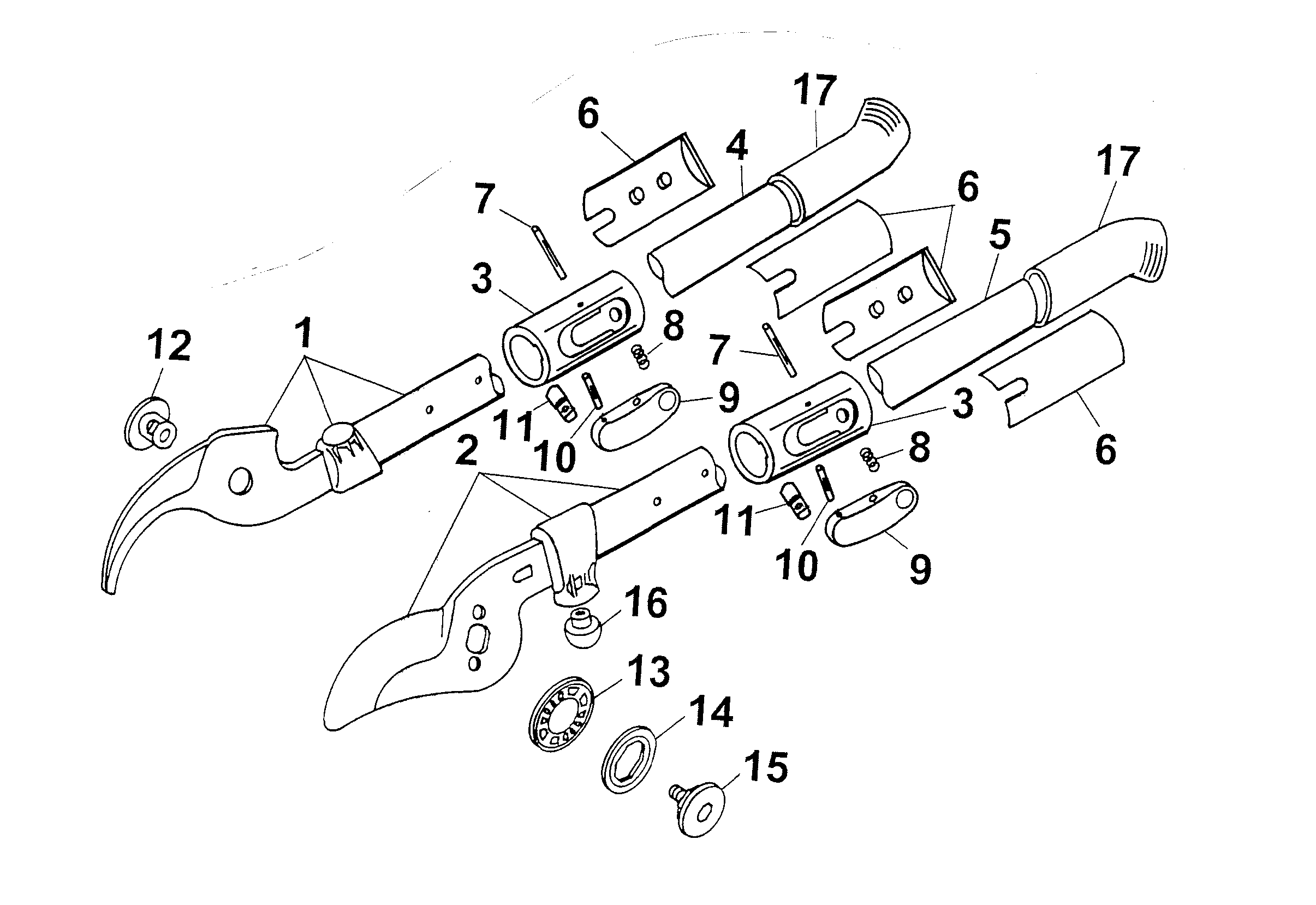

Lista de repuestos para Wolf Loppers Bypass Lopper RR 650 T




Lista de repuestos


pos.descripciónNúmero de pieza
1Cutting Lever Complete7350 011
1Cutting Lever Compl. With Inner Pipe7353 011
2Blade Lever, Complete7353 012
3Snap-In Locking Device7278 103
4Telescopic Pipe 356 Mm7278 101
5Telescopic Pipe7353 102
5Telescopic Pipe Os 65 T7353 103
6Cover7278 201
7Grooved Pin0018 008
8Compression Spring7278 202
9Rocker7278 104
10Grooved Pin0018 635
11Bolt7278 200
--Rocker With Bolt7278 011
12Joint Shell7252 202
13Ring7275 201
14Star Wheel7275 202
15Joint Screw M87275 200
16Rubber Buffer7254 204
17Grip7278 102
***Screw Set Compl.7350 025
