> Mowers > Petrol > Drive from 43 cm on > series 6 > 6.46 BAM > Blade clutch

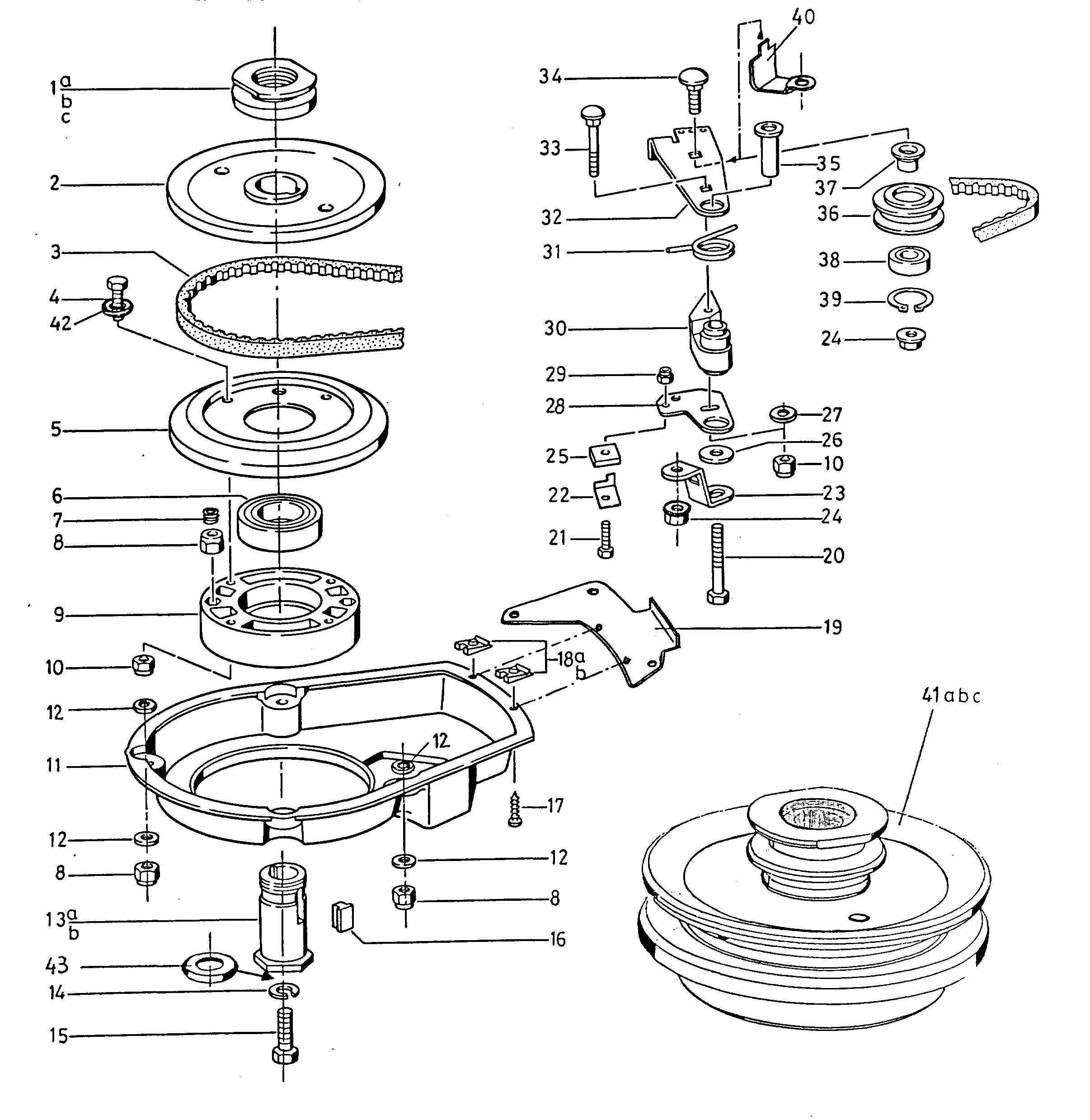

Lista de repuestos para Wolf Mowers Blade clutch

Lista de repuestos

pos.	descripción	Número de pieza
1a	Nut	6948 150
1b	Nut	6948 151
1c	Nut	6948 152
2	V-Belt Pulley	6948 153
3	Drive Belt 42Cm	6948 154
4	Screw	0010 374
5	V-belt pulley	6948 155
6	Bearing	6948 156
7	Spring	6948 157
8	Hex. Nut	0016 312
9	Coupling Disk	6948 158
10	Nut	0016 311
11	Case	6948 159
12	Washer	6948 307
13a	Bush	6948 160
13b	Bush	6948 161
14	Washer spring	0017 911
15	Screw	6905 401
16	Key-Pulley	6948 162
17	Screw	0015 653
18a	Clip	4252 236
18b	Nut	4252 213
19	Holder plate	6948 163
20	Screw	6948 164
21	Screw	6948 165
22	Armature plate	6948 166
23	Angle plate	6948 167
24	Stop nut	6948 301
25	Disc	6948 168
26	Washer	0017 291
27	Washer	0017 121
28	Brake pad	6948 169
29	Self Locking Nut M 4	0016 309
30	Guiding	6948 170
31	Spring	6948 171
32	Gear Lever	6948 172
33	Screw	6948 173
34	Screw	0013 653
35	Shell	6948 174
36	V-Belt Pulley	6948 175
37	Shell	6948 176
38	Bearing	4253 109
39	Circlip	4252 554
40	Cap-Limiter	6948 177
41a	V-Belt Pulley	6948 178
41b	V-Belt Pulley	6948 179
41c	V-Belt Pulley	6948 180
42	Washer	0017 556
43	Washer	4289 403
