> Mowers > Electro > Without drive from 40 cm on > series 6 > 6.42 E > Axle, Wheels

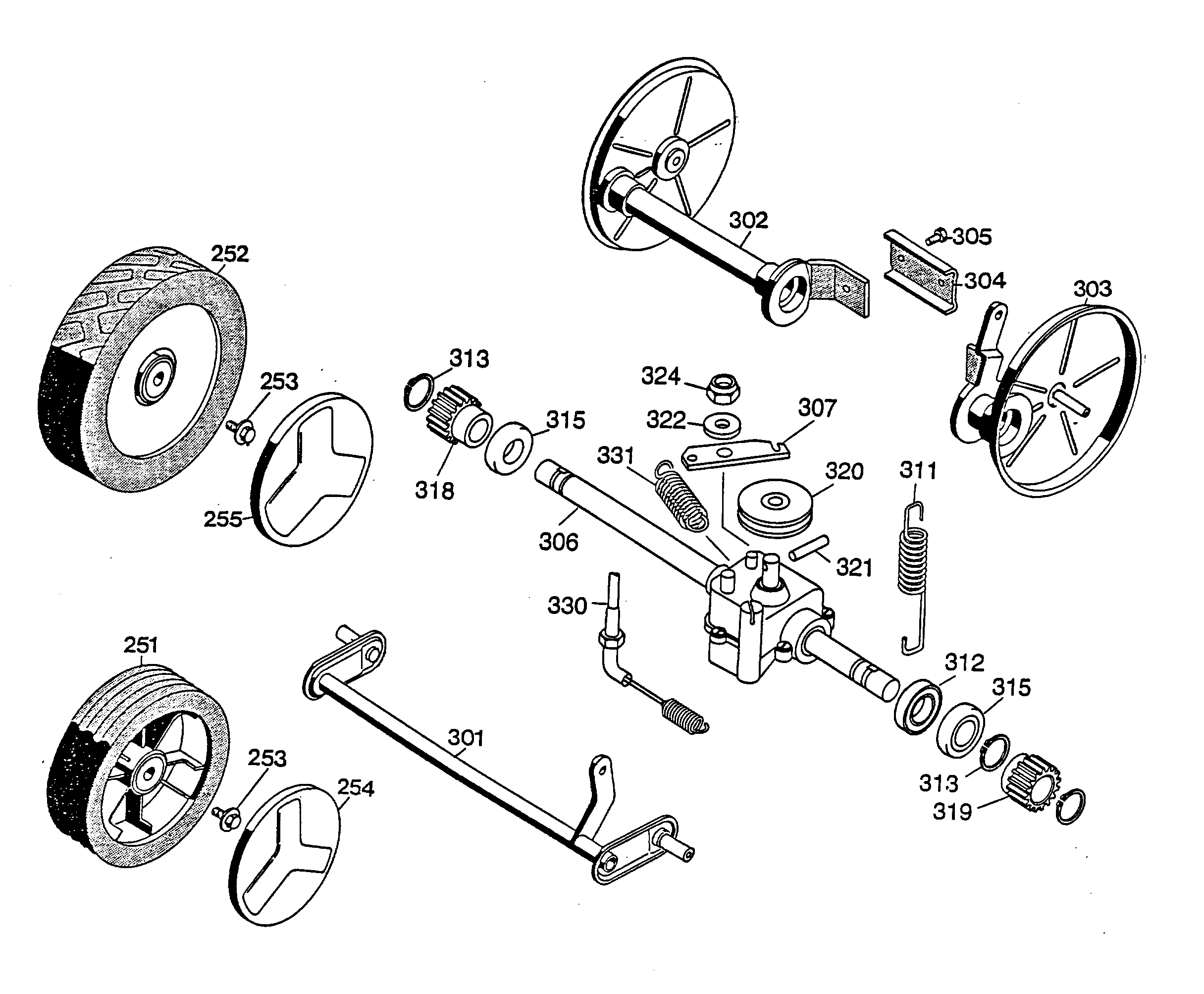

Lista de repuestos para Wolf Mowers Axle, Wheels




Lista de repuestos


pos.descripciónNúmero de pieza
251Wheel ø 170 mm6440 050
252Wheel, 200 Mm Dia.6420 061
253Screw0010 893
254Cover ø 170 mm6340 511
255Cover6340 512
***Bearing6340 516
301Axle4740 030
***Driving Axle4720 061
***Driving Axle With Wheels4850 068
302Axle Half4720 019
303Axle Half4720 015
304Clamp6420 507
305Screw0010 893
306Gear1091 001
307Lever1090 208
308Seal0031 127
309Washer0017 121
310Nut0016 311
311Tension Spring4720 207
312Bearing0023 095
313Circlip0020 013
315Distance Bush6420 511
318Pinion6420 065
319Pinion6420 066
330Bowden Wire Driving4925 011
331Spring4720 204
