> Mowers > Electro > Without drive from 40 cm on > Others > HB 40 E > Axle, Wheels, Height-adjustment

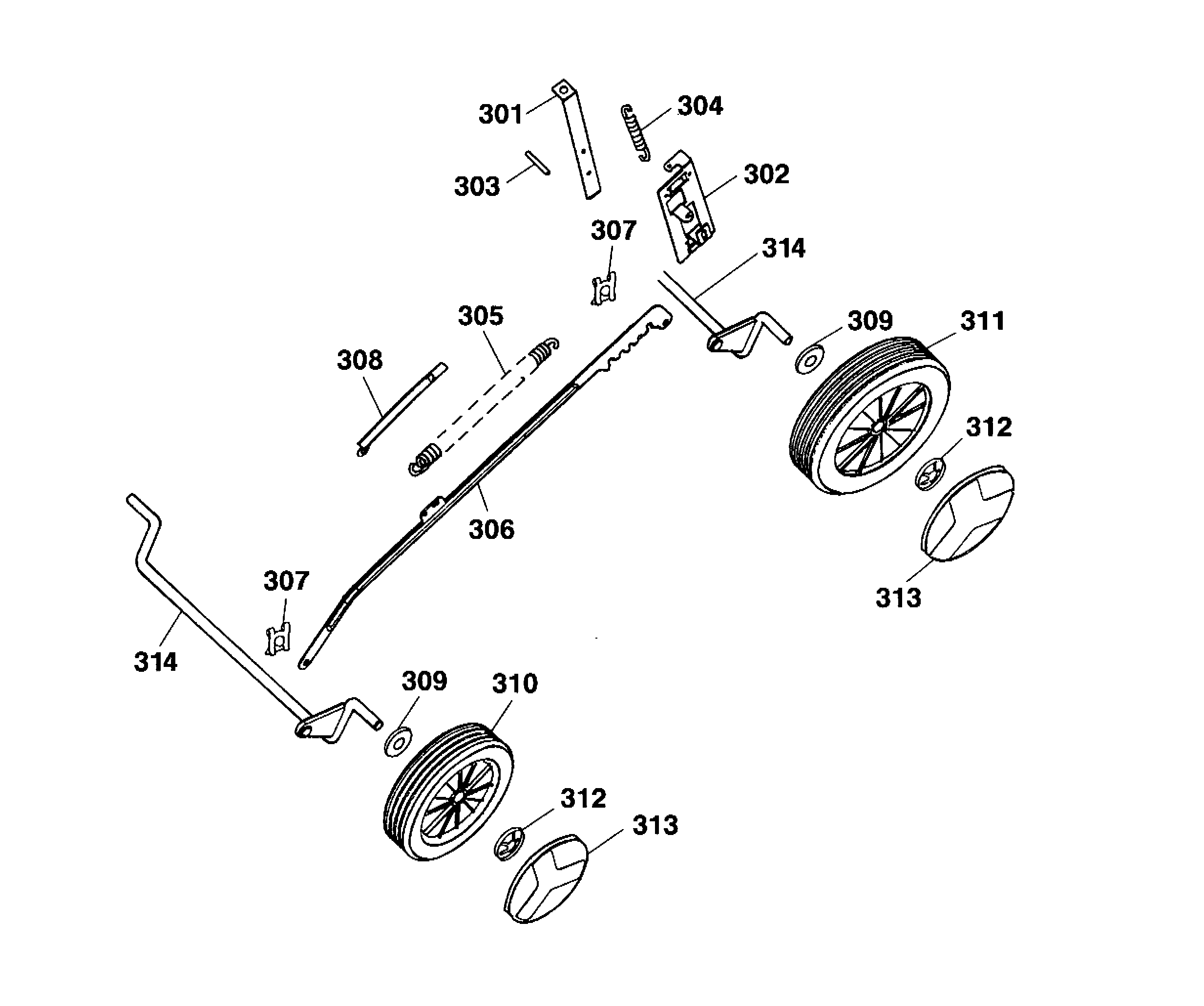

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
301Plate (Zmv)4961 512
302Guiding4001 010
303Dowel Pin0018 878
304Tension Spring4961 514
305Tension spring connecting rod4961 107
306Rod4001 504
307Retaining Clip0020 981
308Height-Position Indicator4961 307
309Washer0017 112
310Wheel, 170Mm Dia.4961 040
311Wheel, 200Mm Dia.4961 041
312Speedfix Retainer0020 700
313Cover ø 170 mm4936 535
314Axle4961 011
