volver a
>
Mowers
>
Electro
>
Without drive from 40 cm on
>
series 6
>
6.42 E
>
Axle, Wheels, Height-adjustment

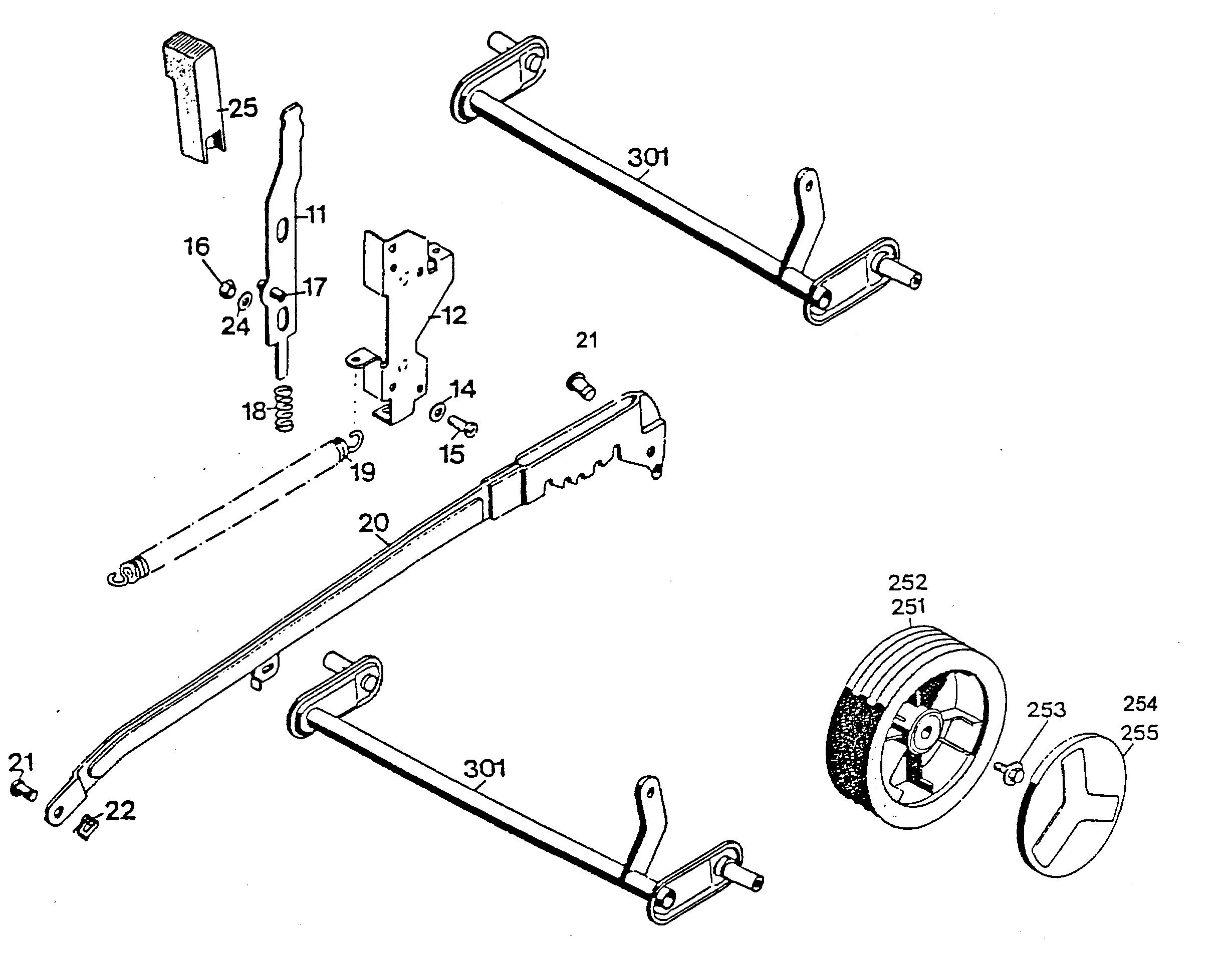

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment
pos.
descripción
Número de pieza
11
Lever With Ref. No. 17
4740 013
12
Guiding
6340 020
14
Flat Washer 5.3 Din 9021 B
0017 287
15
Screw
0012 864
16
Nut
0016 311
17
Dowel Pin
0018 864
18
Spring
4740 207
19
Spring
4740 206
20
Rod
4942 020
21
Bolt
6340 214
22
Retaining Clip
0020 981
24
Washer
0017 290
25
Button
4740 100
251
Wheel ø 170 mm
6440 050
252
Wheel ø 200 mm
6440 051
253
Screw
0010 893
254
Cover ø 170 mm
6340 511
255
Cover
6340 512
301
Axle
4740 030
****
Bearing
6340 516
