> Mowers > Electro > Without drive up to 38 cm > Esprit > Esprit 36 E > Axle, Wheels, Height-adjustment

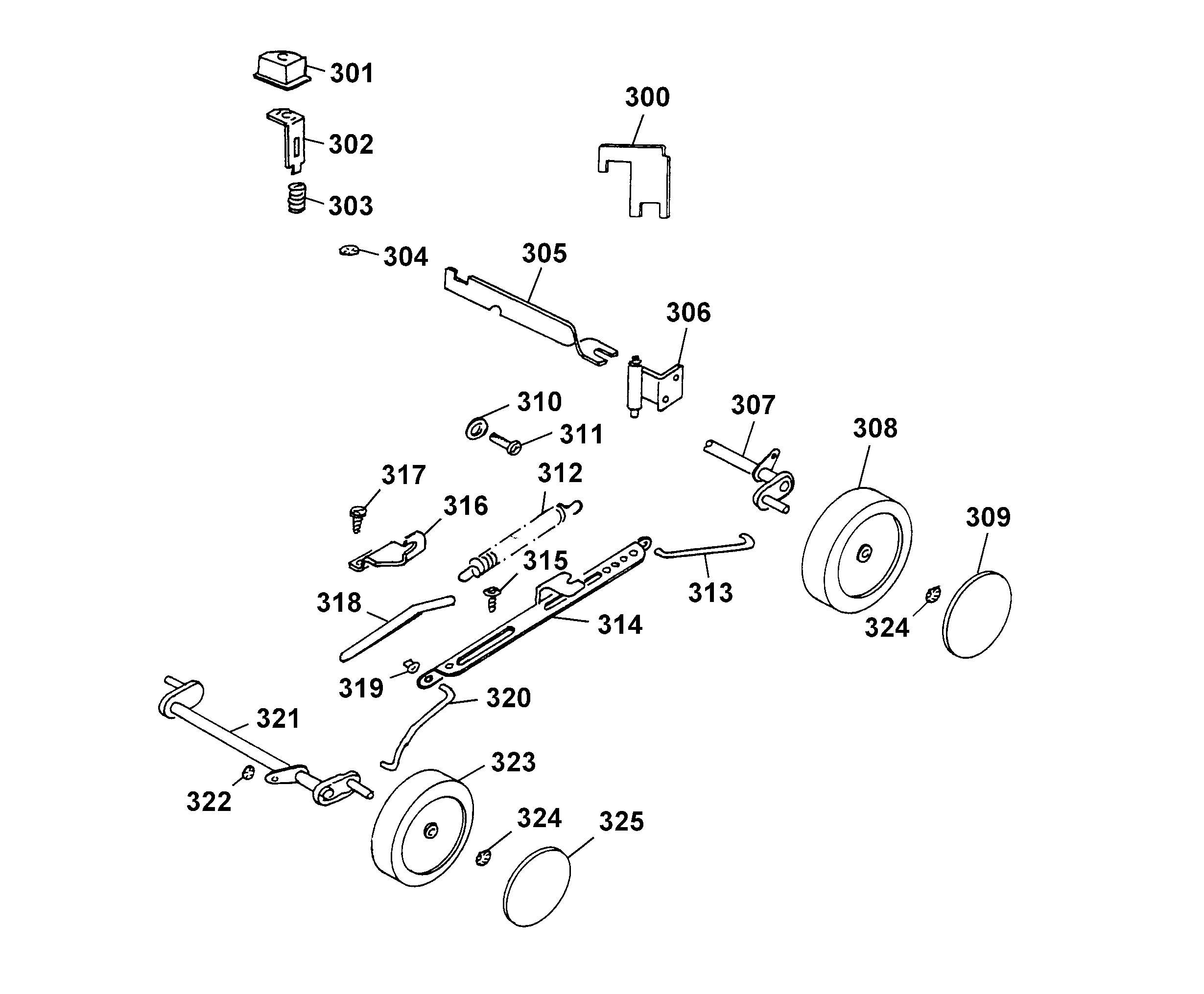

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
300Cover4936 312
301Button4936 317
302Lever4936 509
303Spring4740 207
304Speedfix Retainer0020 699
305Arm-Rocker4936 508
306Guiding4936 025
307Axle Rear4936 013
308Wheel 170 Mm Dia.4916 501
309Cover ø 170 mm4936 535
310Flat Washer 5.3 Din 9021 B0017 287
311Screw0012 864
312Spring4936 218
313Rear Rod4936 224
314Rod4936 014
315Screw0012 898
316Supporting Angle4936 222
317Screw0012 625
318Height-Position Indicator4936 503
319Retainer D83575 503
320Front Rod4936 225
***Connecting Rod Compl.4936 015
321Axle Front4936 012
322Speedfix Retainer0020 694
323Wheel4916 500
324Speedfix Retainer0020 698
325Cover4936 525
