> Mowers > Electro > Without drive up to 38 cm > Esprit > Esprit 32 E > Axle, Wheels, Height-adjustment

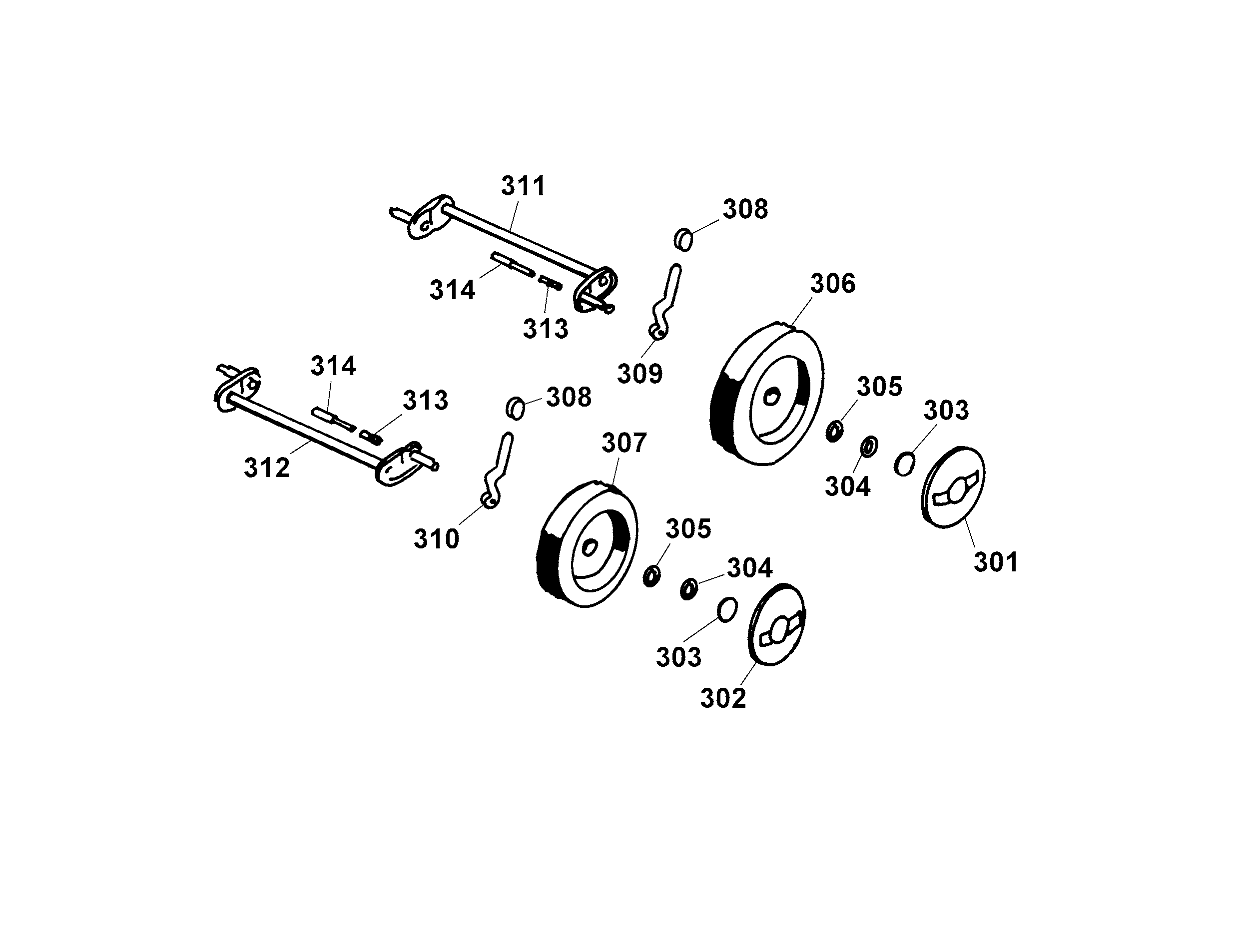

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
301Cover With Grip4936 520
***Cover4936 525
302Cover With Grip4932 520
***Cover4932 525
303Button4932 512
304Speedfix Retainer0020 695
305Speedfix Retainer0020 698
306Wheel4916 500
307Wheel 130 Mm Dia.4932 500
308Retainer For Height Indicator4932 511
309Height Indicator4932 505
310Height Indicator, Front4932 504
311Axle Rear4932 013
312Axle Front4932 012
313Spring4331 217
314Bolt4930 506
