> Mowers > Electro > Without drive up to 38 cm > series 6 > 6.38 E > Axle, Wheels, Height-adjustment

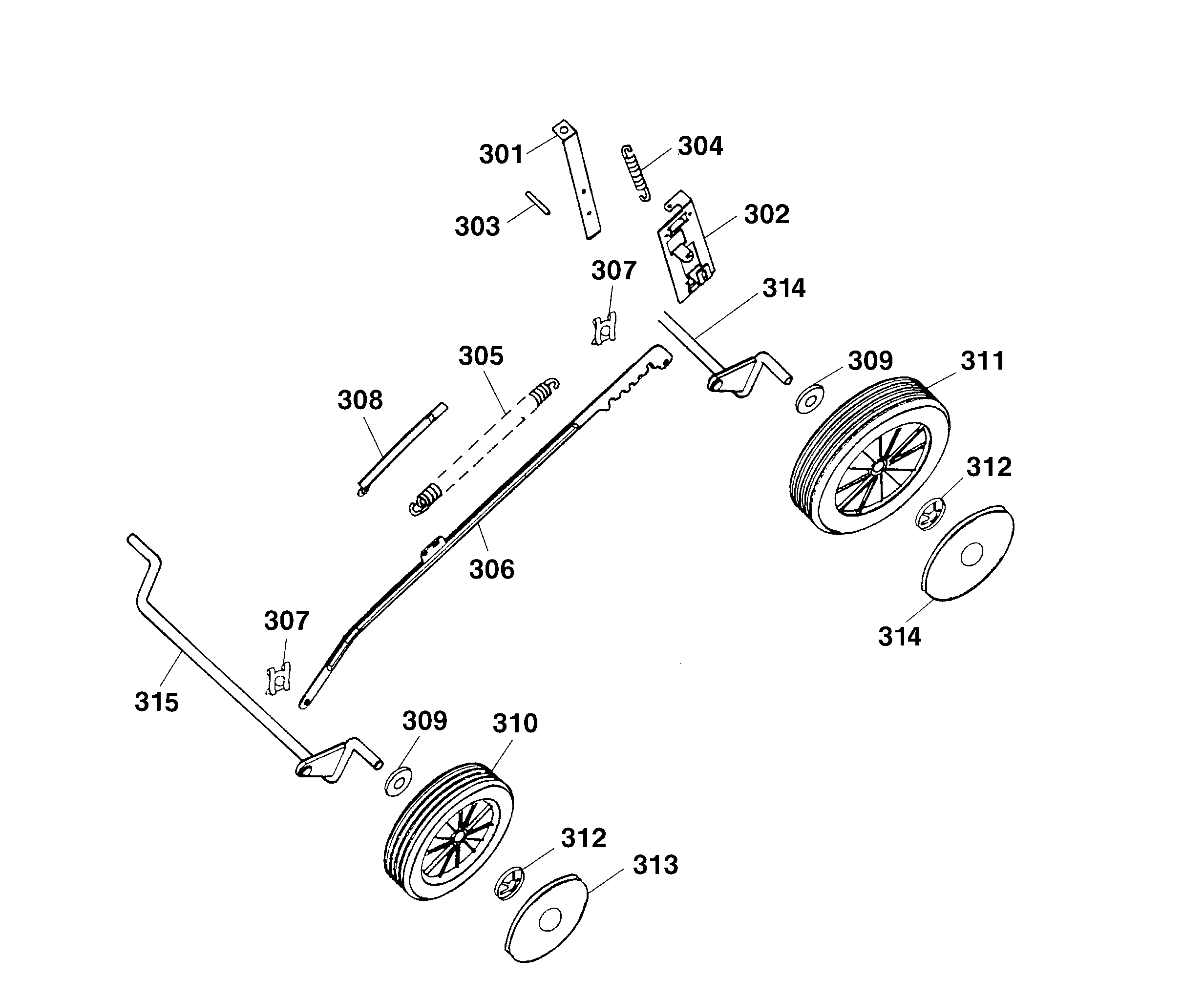

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
301Plate (Zmv)4961 512
302Guiding4001 010
303Dowel Pin0018 878
304Tension Spring4961 514
305Tension spring connecting rod4961 107
306Rod4001 504
307Retaining Clip0020 981
308Height-Position Indicator4961 307
309Washer0017 112
310Wheel ø 170 mm6440 050
311Wheel ø 200 mm6440 051
312Speedfix Retainer0020 700
313Cover ø 170 mm6450 520
314Cover ø 200 mm6450 530
315Axle4961 011
