> Mowers > Electro > Without drive up to 38 cm > series 2 > 2.36 E > Axle, Wheels, Height-adjustment

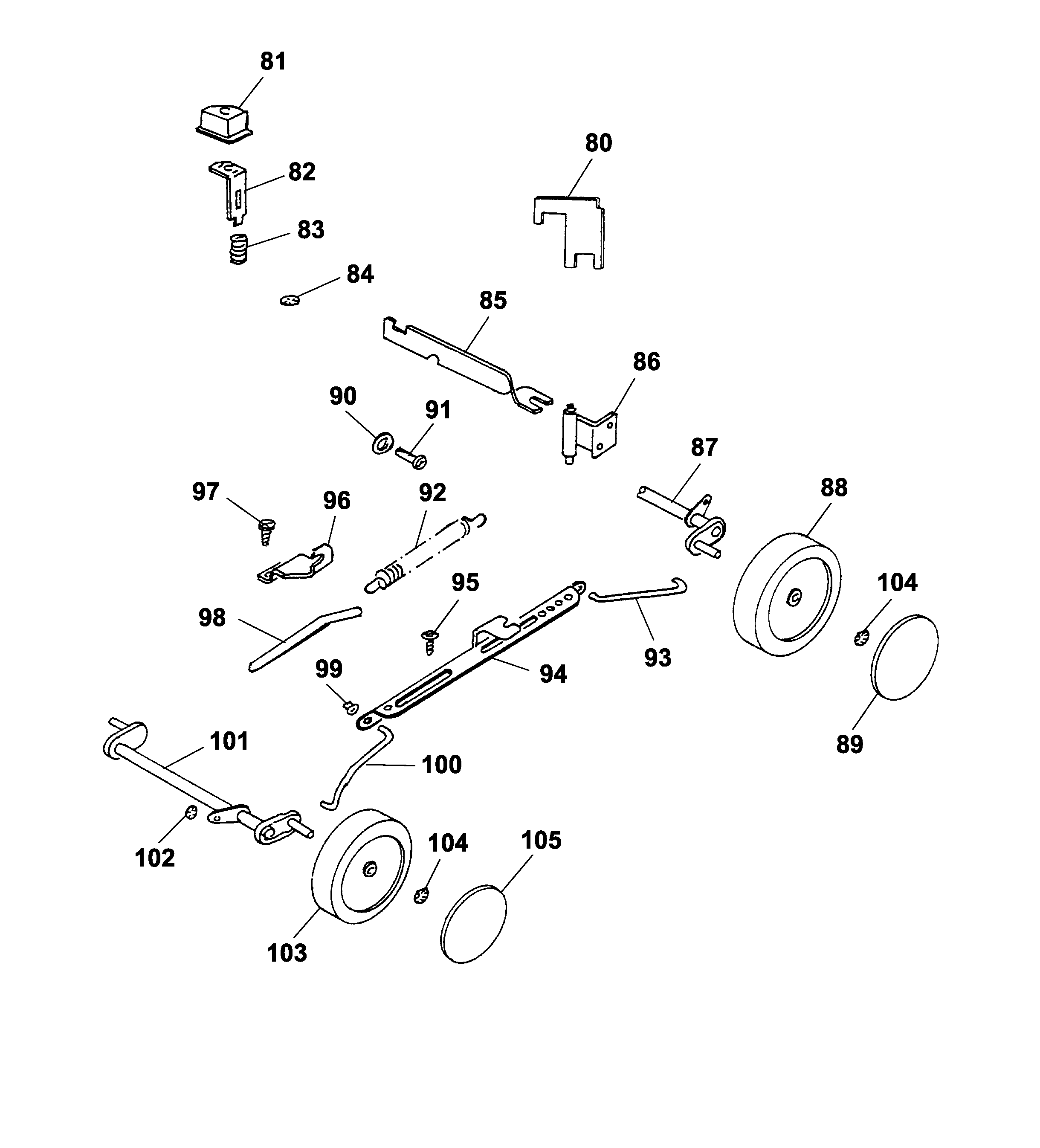

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
80Cover4936 312
81Button4936 317
82Lever4936 509
83Spring4740 207
84Speedfix Retainer0020 699
85Arm-Rocker4936 508
86Guiding4936 025
87Axle Rear4936 013
88Wheel 170 Mm Dia.4916 501
89Cover ø 170 mm4936 535
90Flat Washer 5.3 Din 9021 B0017 287
91Screw0012 864
92Spring4936 218
93Rear Rod4936 224
94Rod4936 014
95Screw0012 898
96Supporting Angle4936 222
97Screw0012 625
98Height-Position Indicator4936 503
99Retainer D83575 503
100Front Rod4936 225
***Connecting Rod Compl.4936 015
101Axle Front4936 012
102Speedfix Retainer0020 694
103Wheel4916 500
104Speedfix Retainer0020 698
105Cover4936 525
