B 46 TBA
>
Axle, Wheels, Height-adjustment

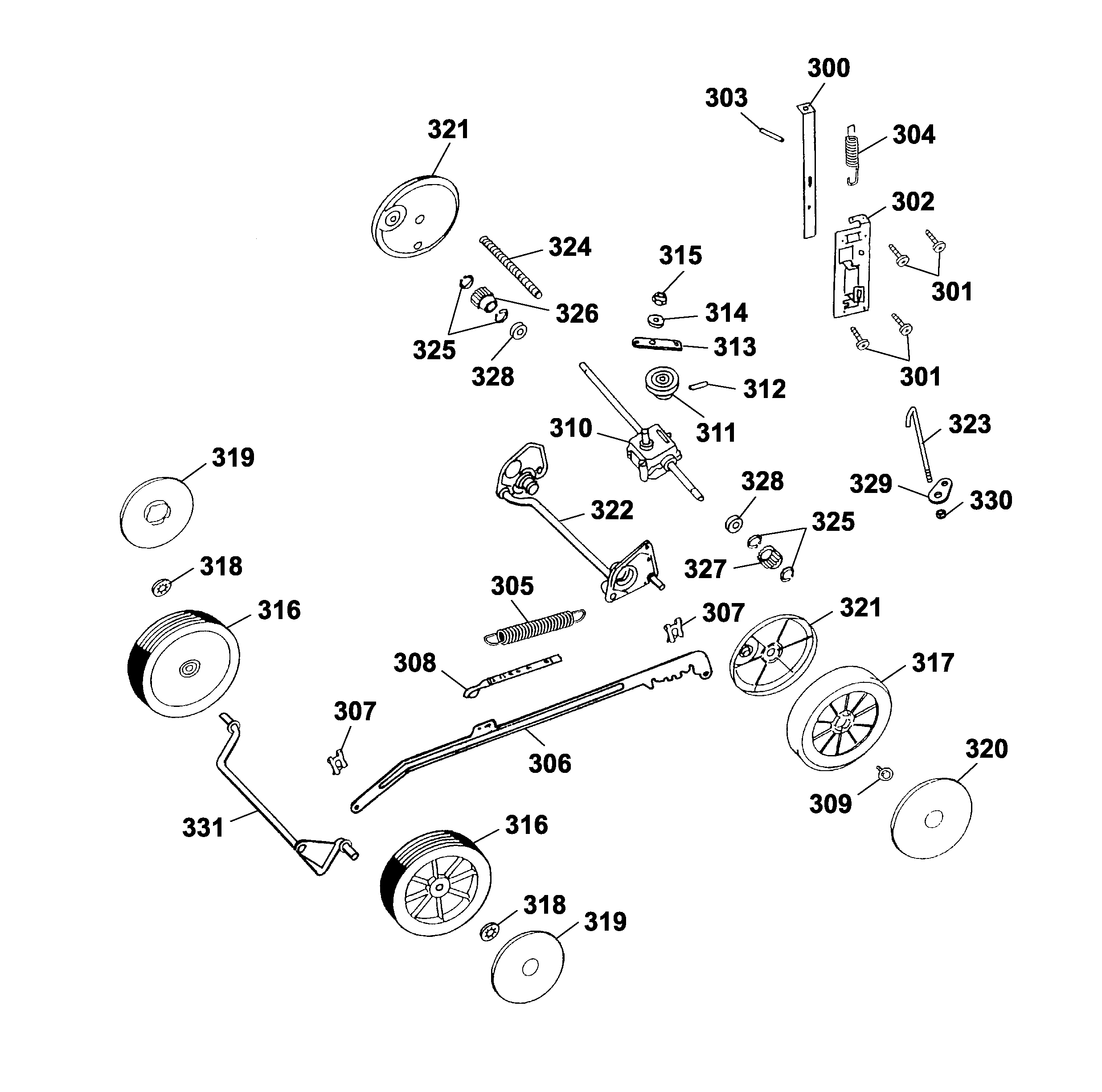

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment
pos.
descripción
Número de pieza
300
Plate (Zmv)
4961 512
301
Screw
0010 931
302
Guiding
4001 010
303
Dowel Pin
0018 878
304
Tension Spring
4961 514
305
Tension spring connecting rod
4961 107
306
Rod
4601 020
307
Retaining Clip
0020 981
308
Height-Position Indicator
4601 306
309
Screw
0010 893
310
Gear
1097 000
311
V-Belt Pulley
1097 201
312
Dowel Pin
1097 202
313
Lever
1097 200
314
Washer
0017 120
315
Hex. Nut
0016 310
316
Wheel 170 Mm Dia.
6340 050
***
Bearing
4960 516
317
Driving Wheel 200 Mm Dia.
4605 050
***
Bearing
6340 516
318
Speedfix Retainer
0020 700
319
Cover ø 170 mm
6450 520
320
Cover ø 200 mm
6450 530
321
Hub Cap
4955 327
322
Axle Pipe, Rear
4005 031
323
Connecting Element
4015 100
***
Driving Axle With Wheels
4005 030
324
Protecting Tube
4605 328
325
Circlip
0020 010
326
Coupling Pinion, Right
4725 025
327
Coupling Pinion, Left
4725 026
328
Bearing
0023 147
329
Bracket - Air
4005 101
330
Nut
0016 311
331
Axle Front
4020 032
