> Mowers > Petrol > Drive from 43 cm on > Esprit > Esprit 46 B > Axle, Wheels, Height-adjustment

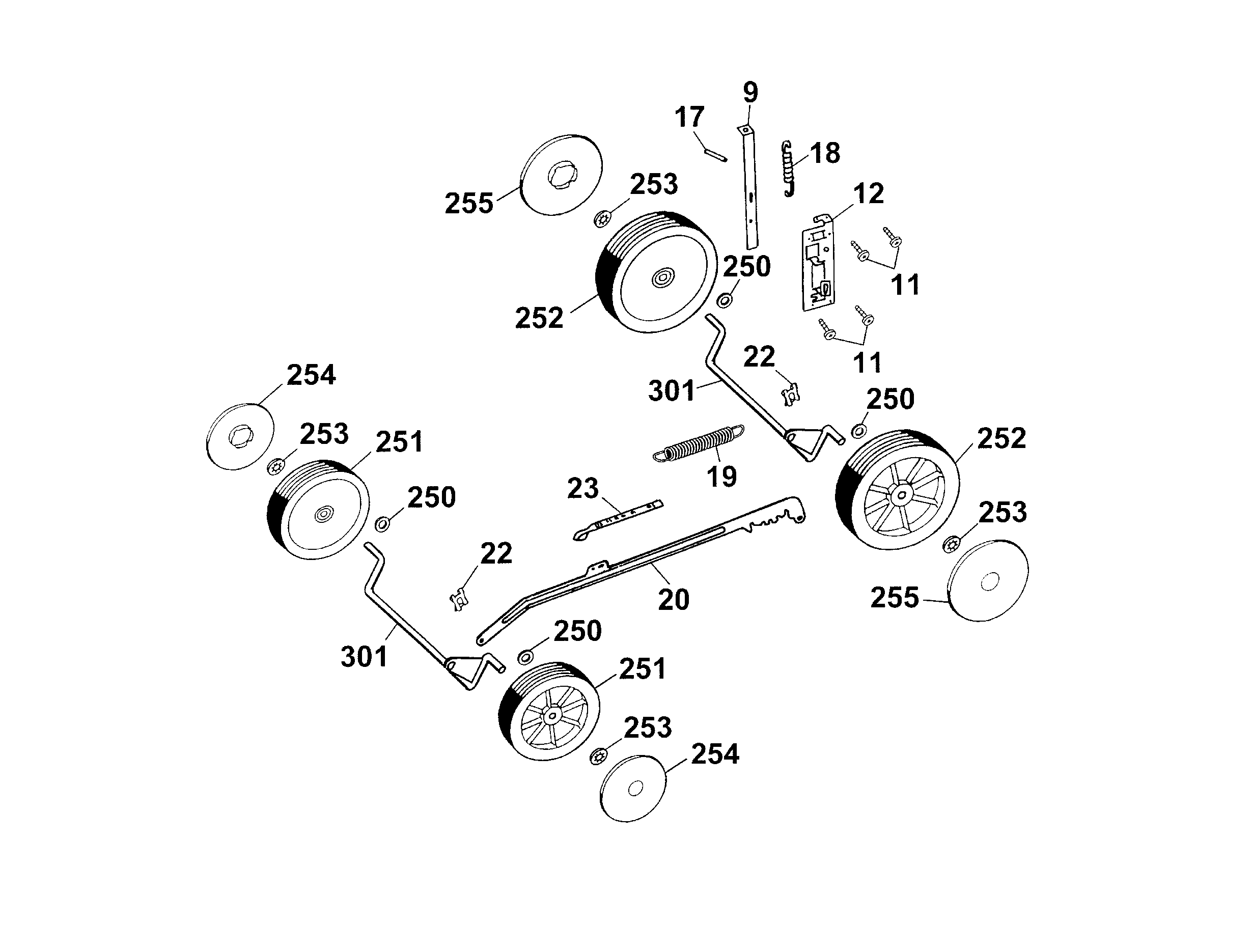

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
9Plate (Zmv)4961 512
11Screw0010 931
12Guiding4001 110
17Dowel Pin0018 878
18Tension Spring4961 514
19Tension spring connecting rod4961 107
20Rod4601 020
22Retaining Clip0020 981
23Height-Position Indicator4601 306
250Washer0017 112
251Wheel 170 Mm Dia.6340 050
252Wheel 200 Mm Dia.6340 051
***Bearing4960 516
253Speedfix Retainer0020 700
254Cover ø 170 mm6450 520
255Cover ø 200 mm6450 530
301Axle4961 011
