Esprit 40 BA
>
Axle, Wheels, Height-adjustment

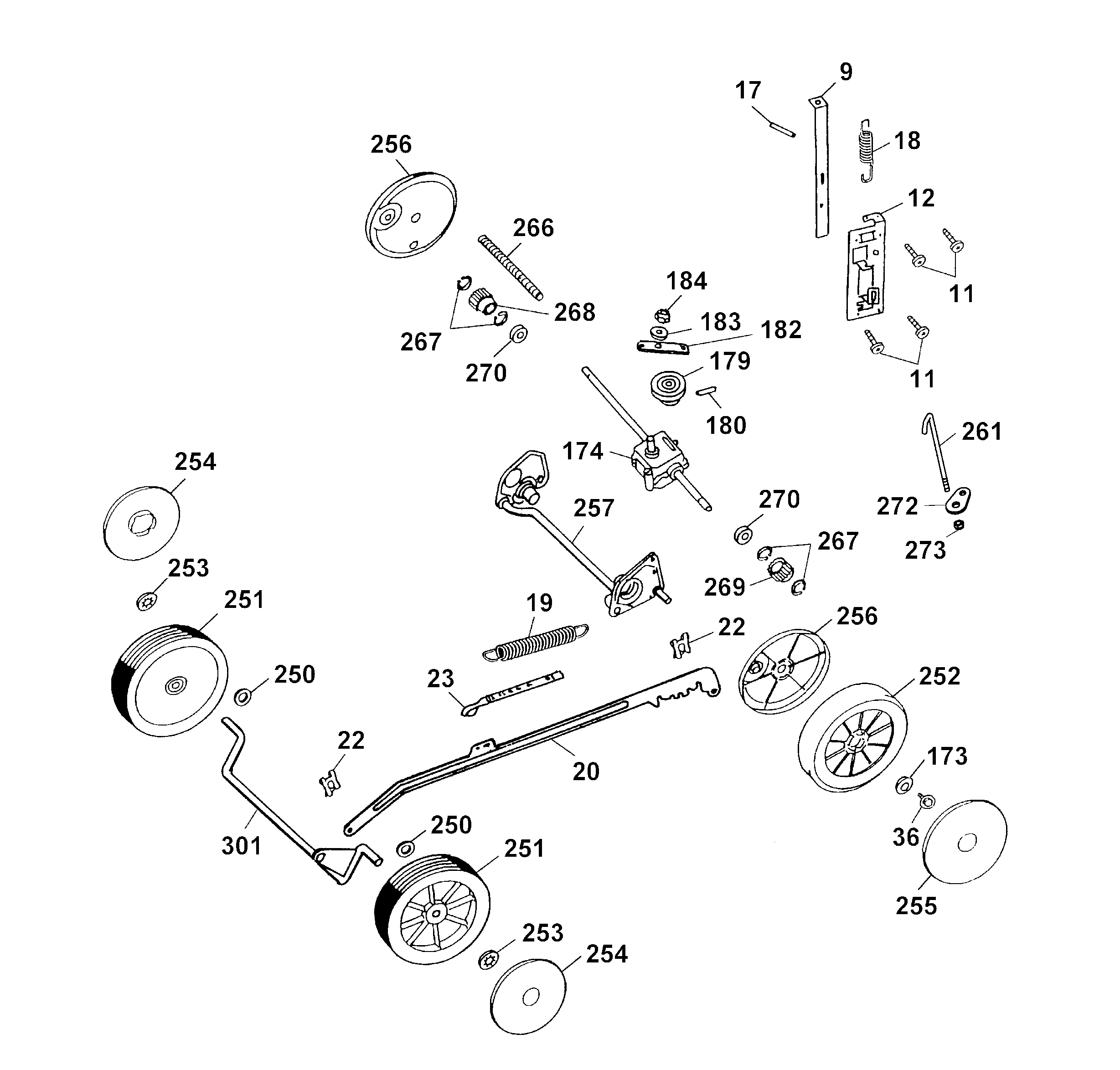

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment
pos.
descripción
Número de pieza
9
Plate (Zmv)
4961 512
11
Screw
0010 931
12
Guiding
4001 110
17
Dowel Pin
0018 878
18
Tension Spring
4961 514
19
Tension spring connecting rod
4961 107
20
Rod
4001 504
22
Retaining Clip
0020 981
23
Height-Position Indicator
4001 306
36
Screw
0010 893
174
Gear
1097 000
179
V-Belt Pulley
1097 201
180
Dowel Pin
1097 202
182
Lever
1097 200
183
Washer
0017 120
184
Hex. Nut
0016 310
250
Washer
0017 112
251
Wheel 170 Mm Dia.
6340 050
***
Bearing
4960 516
252
Driving Wheel 200 Mm Dia.
4605 050
***
Bearing
6340 516
253
Speedfix Retainer
0020 700
254
Cover ø 170 mm
6450 520
255
Cover ø 200 mm
6450 530
256
Hub Cap
4955 327
257
Axle Pipe, Rear
4005 031
261
Connecting Element
4015 100
***
Driving Axle With Wheels
4005 030
266
Protecting Tube
4605 328
267
Circlip
0020 010
268
Coupling Pinion, Right
4725 025
269
Coupling Pinion, Left
4725 026
270
Bearing
0023 147
272
Bracket - Air
4005 101
273
Nut
0016 311
301
Axle
4961 011
