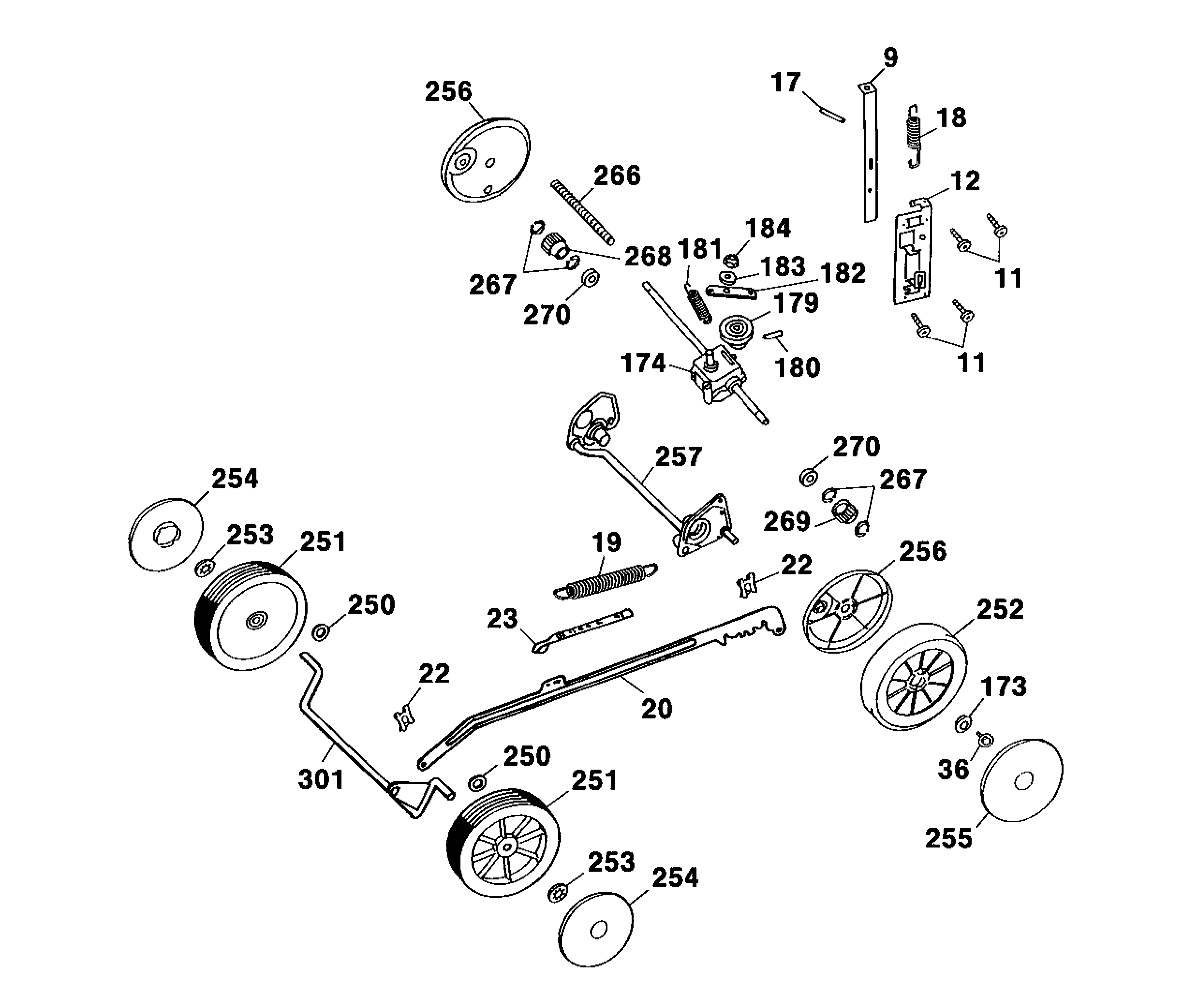

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
9Plate (Zmv)4961 512
11Screw0010 931
12Guiding4001 110
17Dowel Pin0018 878
18Tension Spring4961 514
19Tension spring connecting rod4961 107
20Rod4961 504
22Retaining Clip0020 981
23Height-Position Indicator4001 306
36Screw0010 893
174Gear1097 000
179V-Belt Pulley1097 201
180Dowel Pin1097 202
181Spring1097 205
182Lever1097 200
183Washer0017 120
184Hex. Nut0016 310
250Washer0017 112
251Wheel 170 Mm Dia.6340 050
***Bearing4960 516
252Driving Wheel 200 Mm Dia.4605 050
***Bearing6340 516
253Speedfix Retainer0020 700
254Cover ø 170 mm6450 520
255Cover ø 200 mm6450 530
256Hub Cap4955 327
257Axle Pipe, Rear4005 031
***Driving Axle With Wheels4005 030
266Protecting Tube4605 328
267Circlip0020 010
268Coupling Pinion, Right4725 025
269Coupling Pinion, Left4725 026
270Bearing0023 147
301Axle4961 011
