> Mowers > Petrol > Without drive from 43 cm on > Others > B 46 TB > Axle, Wheels, Height-adjustment

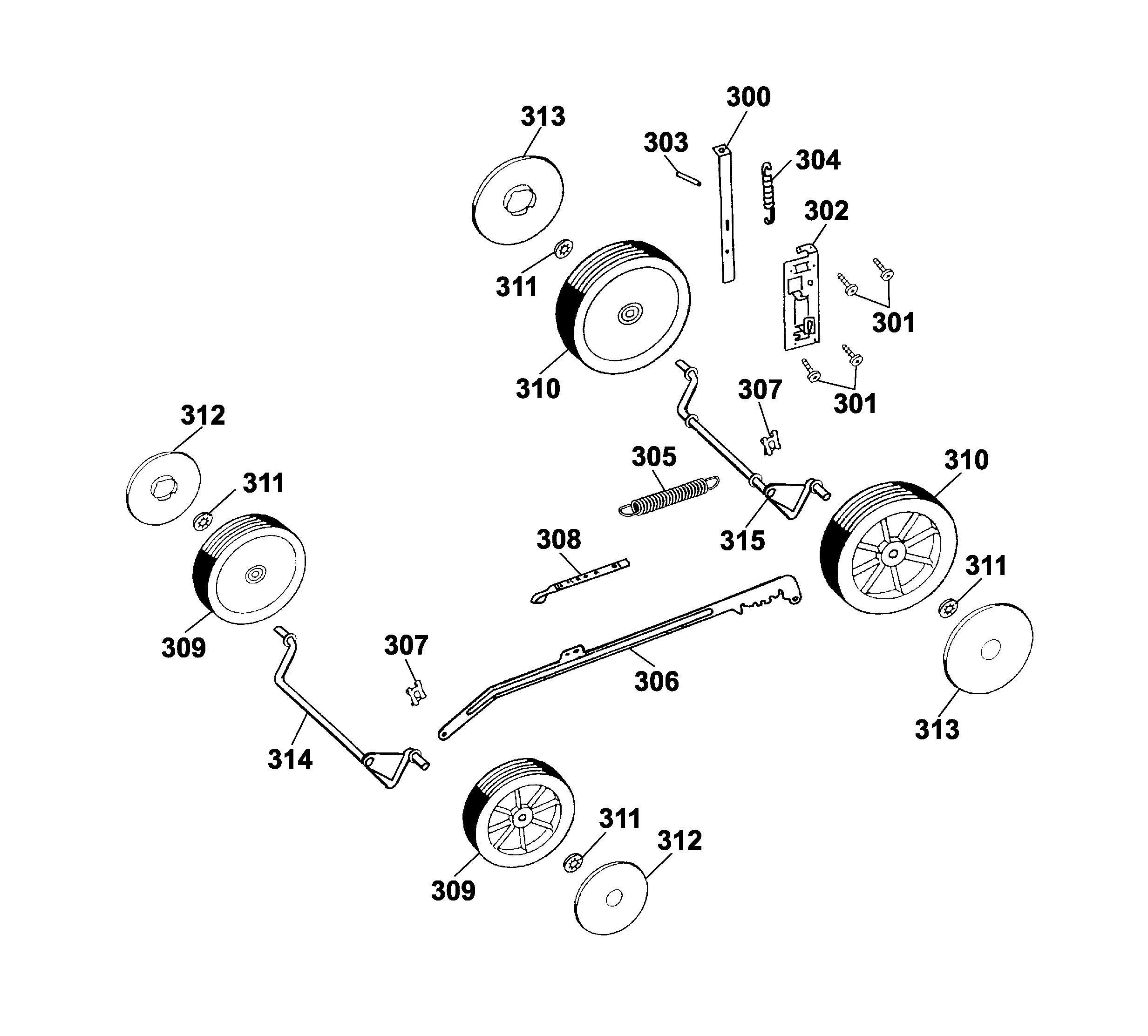

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
300Plate (Zmv)4961 512
301Screw0010 931
302Guiding4001 010
303Dowel Pin0018 878
304Tension Spring4961 514
305Tension spring connecting rod4961 107
306Rod4601 020
307Retaining Clip0020 981
308Height-Position Indicator4601 306
309Wheel 170 Mm Dia.6340 050
310Wheel 200 Mm Dia.6340 051
***Bearing4960 516
311Speedfix Retainer0020 700
312Cover ø 170 mm6450 520
313Cover ø 200 mm6450 530
314Axle Front4020 032
315Axle Rear4020 034
