> Mowers > Petrol > Without drive from 43 cm on > series 2 > 2.48 XC, Good Line > Axle, Wheels, Height-adjustment

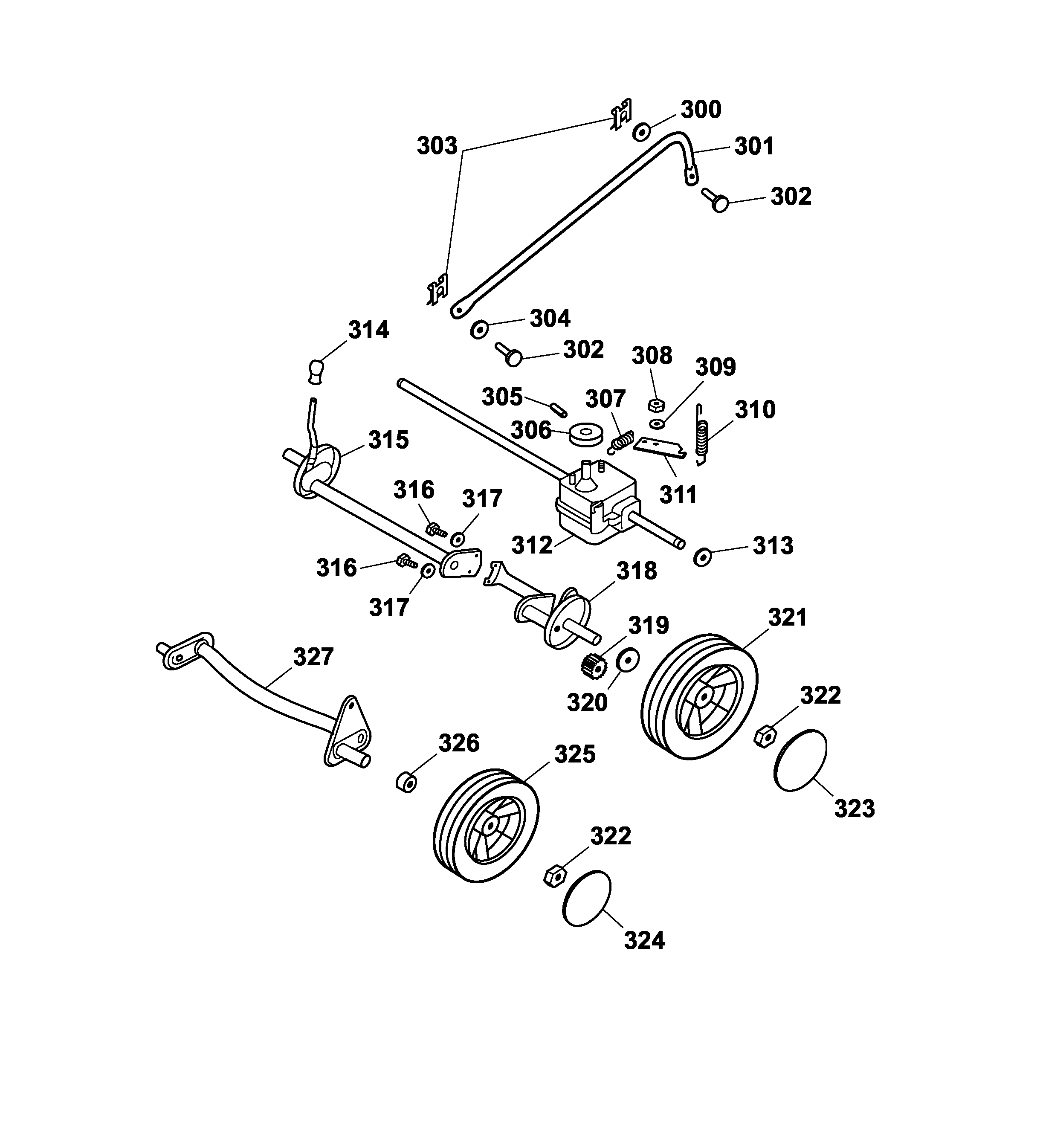

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
300Washer A 8,4 Din 1250017 123
301Connecting Rod4218 034
302Bolt6340 214
303Retaining Clip0020 981
304Rubber Washer4212 315
305Dowel Pin1097 202
306V-Belt Pulley1097 201
307Spring1097 205
308Hex. Nut0016 310
309Washer0017 120
310Tension Spring4218 190
311Gear Lever1082 200
312Worm Gear Pair1082 000
313Washer1082 103
314Knob4212 308
***Rear Axle4218 046
315Rear Axle4218 062
316Screw0010 892
317Friction Washer0017 985
318Rear Axle4218 067
319Toothed Gear 40/8 Z=151082 100
***Free-Wheel1082 101
320Washer A31082 102
321Driving Wheel4218 050
322Nut M12H80016 886
323Hub Cap 200 Mm Dia.4212 530
324Hub Cap 180 Mm Dia.4212 520
325Wheel 180 Mm Dia.4212 050
326Distance Ring4212 105
***Front Axle With Wheels4218 045
327Front Axle4218 030
***Bearing6340 516
