volver a
>
Mowers
>
Petrol
>
Without drive up to 42 cm
>
series 2
>
2.42 T
>
Axle, Height-adjustment, Wheels

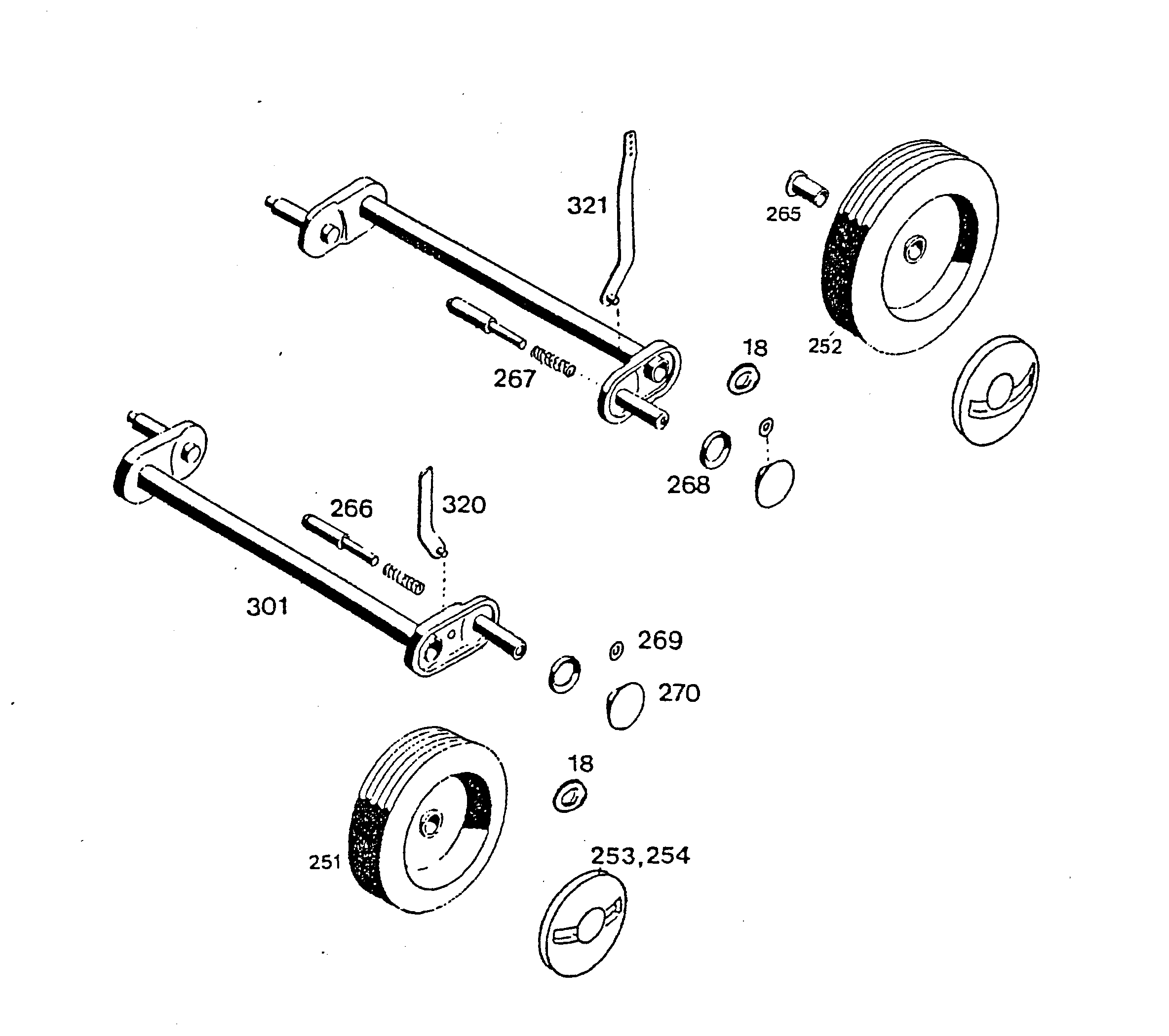

Lista de repuestos para Wolf Mowers Axle, Height-adjustment, Wheels
pos.
descripción
Número de pieza
18
Washer
0022 663
251
Wheel
4960 049
252
Wheel 200 Mm Dia.
4960 059
***
Bearing
4960 516
253
Cover With Grip
4936 530
254
Hub cap 170 mm
4936 531
265
Bush
4960 515
266
Bolt
4760 503
267
Spring
4331 217
268
Speedfix Retainer
0020 698
269
Speedfix Retainer
0020 695
270
Button
4932 512
301
Axle
4760 030
***
Front Axle With Wheels
4760 063
***
Rear Axle
4760 064
320
Height Indicator, Front
4760 504
321
Height Indicator
4760 505
