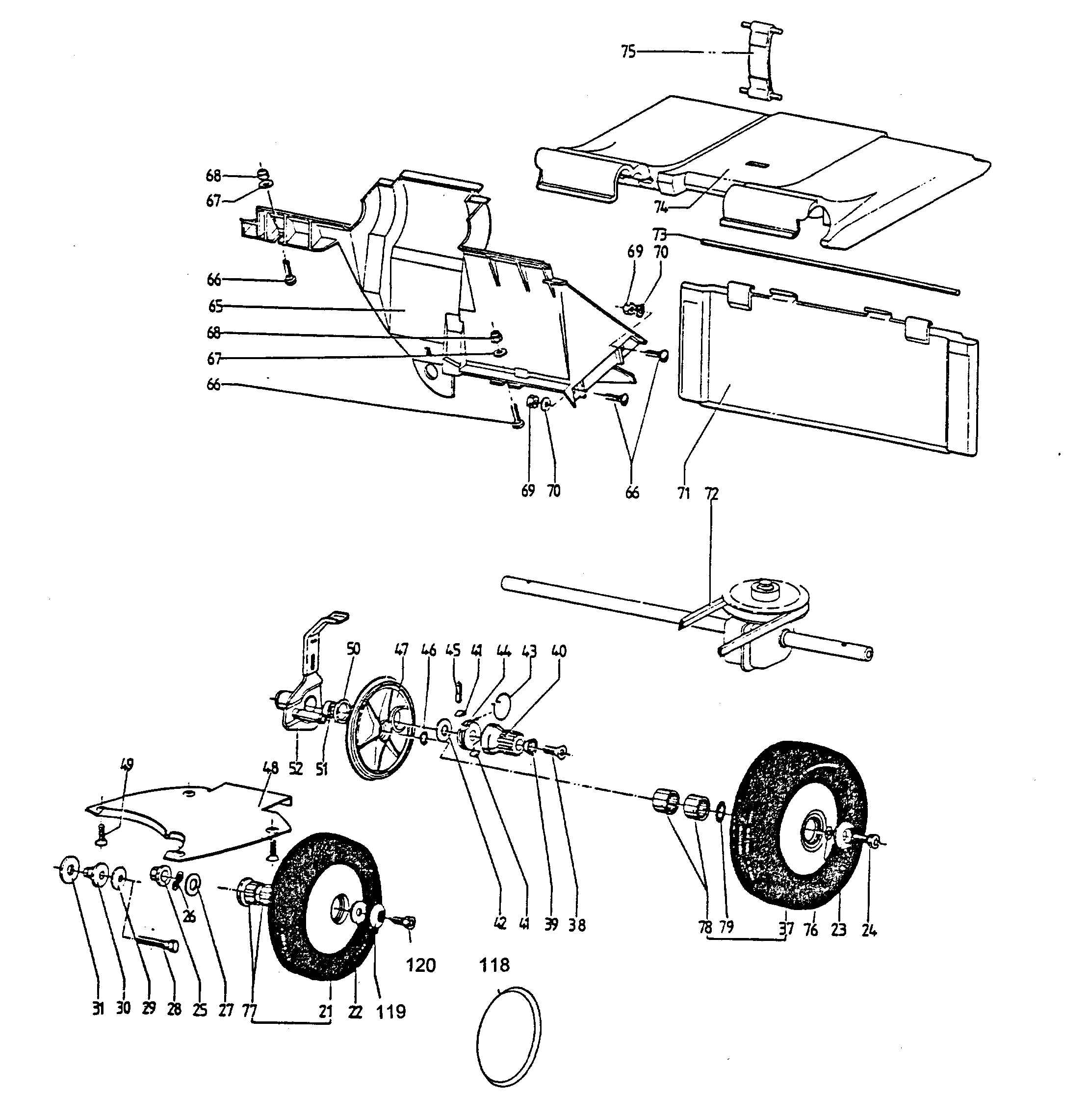

Lista de repuestos para Wolf Mowers 6.51 BA


Lista de repuestos 1
Lista de repuestos 2


Lista de repuestos


pos.descripciónNúmero de pieza
1Chassis6930 300
2Insert-Grip6950 301
3Ring6950 503
4Retainer-E Ring6950 302
5Clip6912 504
6Pulley-Camshaft6930 501
7Washer6920 302
8Threaded Pin6912 502
9Coupling6925 400
10Starter Dog6912 401
11Starter Dog6925 500
12Blade6930 090
13Washer4289 413
14Washer spring0017 911
15Screw0010 258
16Insulator6930 301
17Spring6950 203
18Screw4289 225
19Washer A 8,4 Din 1250017 123
20Lever6930 302
21Wheel ø 200 mm6950 040
29Washer0017 291
32Lever6950 017
33Washer6905 502
34Lever6950 016
35Washer4151 209
36Hex. Nut0016 312
43Throttle Return Spring4277 506
44Free Running4277 505
45Spring Pincart0018 806
46Clip6912 507
50Washer6912 508
51Bearing4253 109
53Cover6912 509
54Screw0013 654
55Clip6912 510
56Rubber Washer6912 511
57Lever6950 014
58Screw0015 686
59Washer0017 286
60Nut4252 213
61Lower Handlebar6930 100
62Screw6930 101
63Isolator6.51Ba6930 102
64Handlebar Holder6930 103
73Rod6930 307
74Rear Flap6930 308
92"Wolf-Garten" Brand0051 146
117Gum6950 100
Lista de repuestos


pos.descripciónNúmero de pieza
22Distance Ring1086 107
23Washer6905 501
24Screw0011 130
25Arm4249 501
26Washer0017 831
27Washer6920 501
28Screw0010 391
30Bush6950 502
31Belleville Spring Washer0022 842
37Driving Wheel6930 051
38Screw0011 444
39Washer6912 505
40Toothed Wheel4277 507
41Starter Dog4277 504
42Washer0017 282
47Hub Cap6912 506
48Cover6930 303
49Screw6930 304
52Lever6950 015
65Deflector-Muffler6930 306
66Screw0013 640
67Washer0017 289
68Nut0016 311
69Nut0016 256
70Washer0017 897
71Baffle Plate6930 305
72Drive Belt 42Cm6950 509
75Belt6930 309
76Washer0017 121
77Bearing4249 509
78Bushing6930 514
79Washer4254 214
118Cover6966 506
119Washer6966110
120Screw6966111
