Lista de repuestos para Wolf Mowers 6.35 Accu

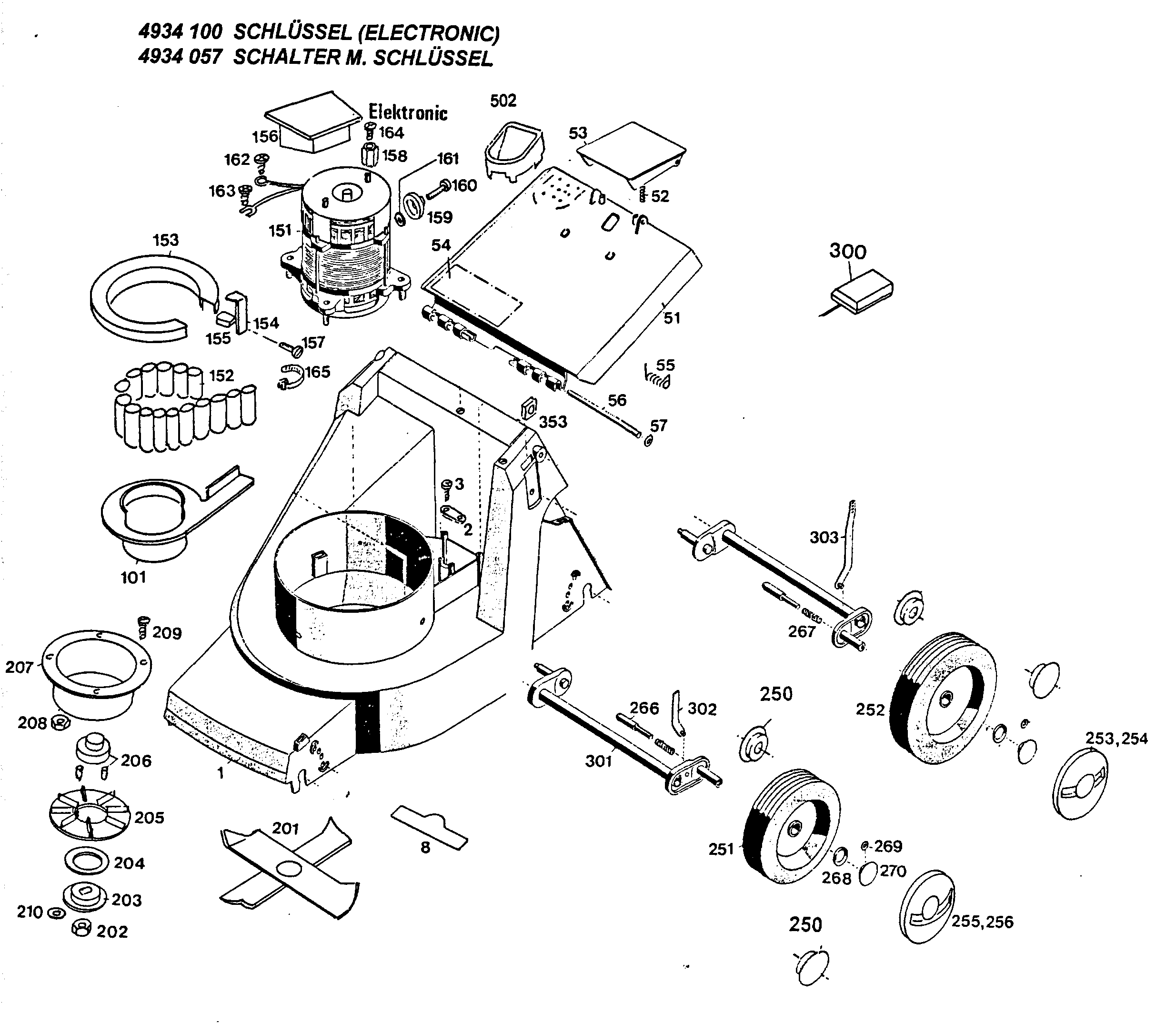

Lista de repuestos 1

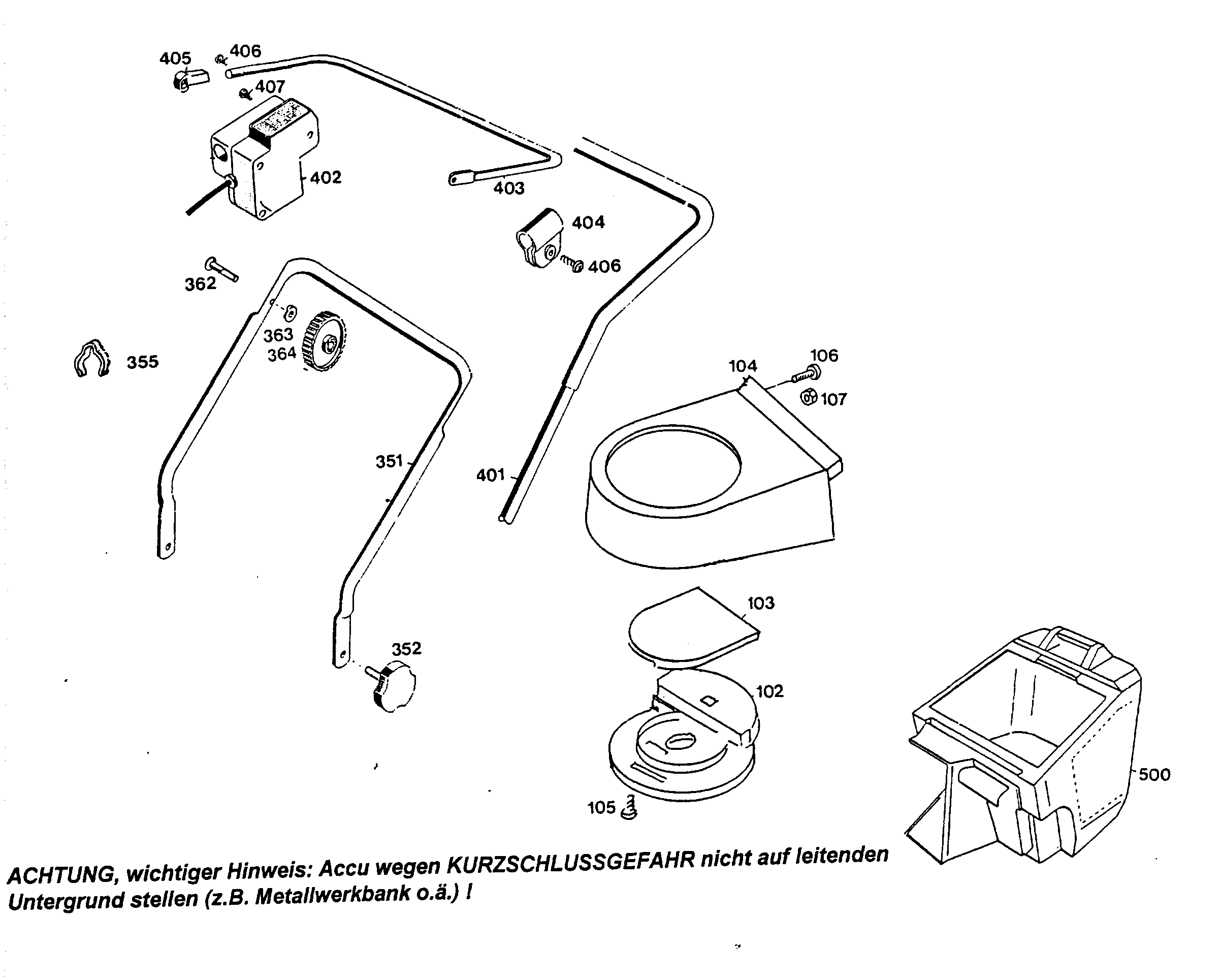

Lista de repuestos 2

Lista de repuestos

pos.	descripción	Número de pieza
1	Chassis	4934 325
2	Clamp-Casing	4557 208
3	Screw	0012 933
8	Wolf-Garten - Label	0051 145
51	Deflector Flape34	4934 064
52	Spring	4191 206
53	Handle	4330 102
54	Safety Label	0051 228
55	Spring	4930 207
56	Pivot Pin	4325 102
57	Speedfix Retainer	0020 694
101	Battery Holder	4934 306
151	Motor	1058 000
152	Battery Pack	4934 082
- - -	Adaptor Cable For Item 152A	4933 054
153	Battery Cover	4934 307
154	Arm	4934 310
155	Cellular Rubber	4934 312
156	Electronic	4934 069
157	Screw	0012 863
158	Spacer	4934 114
159	Rotormagnet	4934 111
160	Screw	0012 858
162	Screw	0012 859
163	Screw	0012 854
164	Screw	0012 875
165	Cable Tape	4934 228
201	Blade Assembly	4934 081
202	Nut	0016 304
203	Coupling Disk	4934 403
204	Clutch Facing	4125 401
205	Aerator	4934 311
206	Coupling	4934 053
207	Motor Sleeve	4934 110
208	Nut	0016 311
209	Screw	0015 659
210	Washer Spring	0017 909
250	Bearing	4960 516
251	Wheel	4936 040
252	Wheel 170 Mm Dia.	4936 041
253	Hub cap 170 mm	4936 531
254	Cover With Grip	4936 530
255	Cover	4936 521
256	Cover With Grip	4936 520
266	Bolt	4930 506
267	Spring	4331 217
268	Speedfix Retainer	0020 698
269	Speedfix Retainer	0020 695
270	Button	4932 512
300	Battery Charger (6.42Bai)	4934 076
****	Charger SLG 100	4933 090
301	Axle	4934 013
302	Height Indicator, Front	4325 504
303	Height Indicator	4325 505
353	Nut	0016 409
502	Grass Box Full Indicator	4880 061
****	Key	4934 100
****	Switch with key	4934 057
****	Instruction Manual	0054 062
