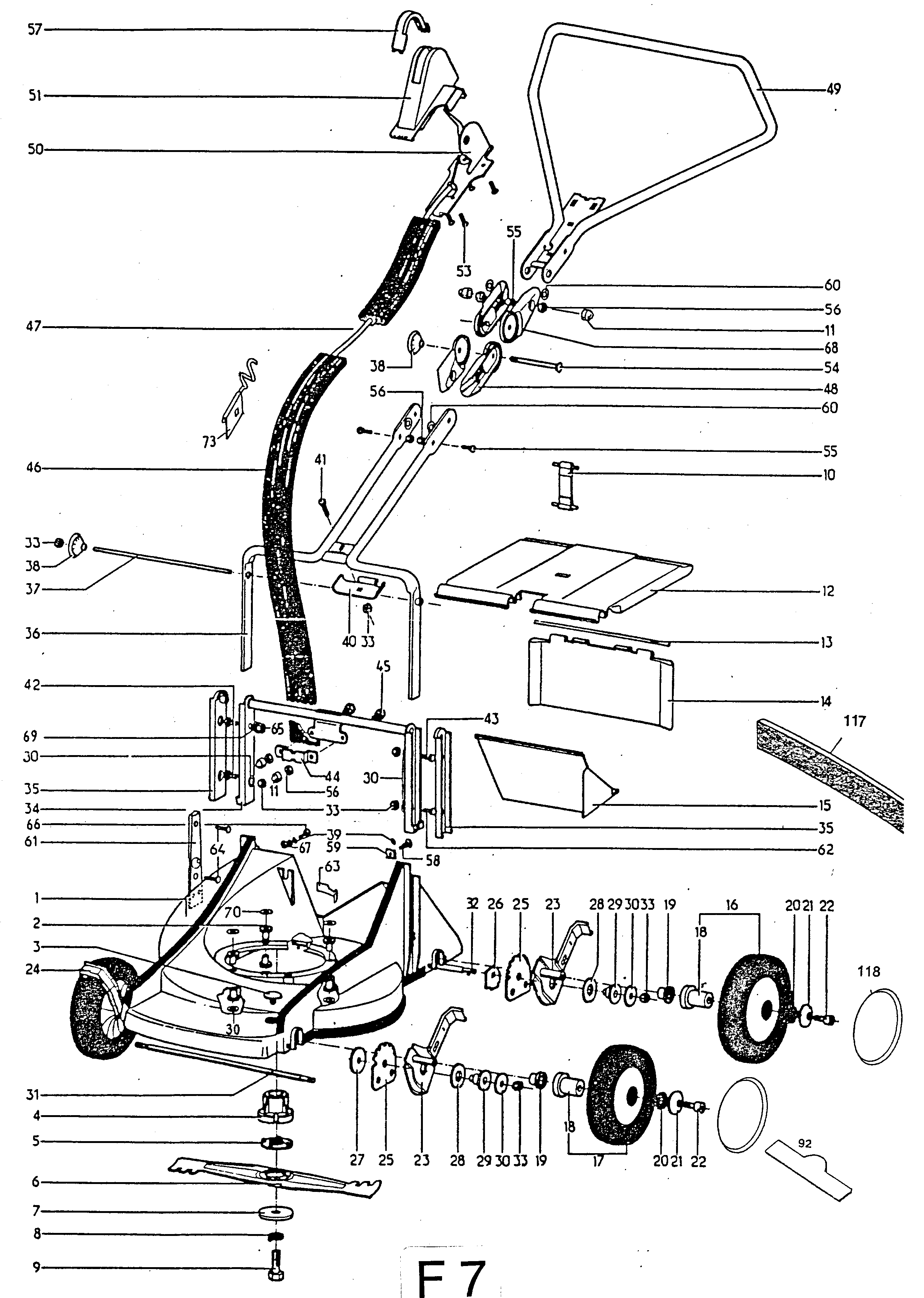

Lista de repuestos para Wolf Mowers 4.46 B

pos.	descripción	Número de pieza
1	Chassis	6905 300
2	Insulator	6905 301
3	Cap	6905 302
4	Coupling	6920 402
5	Starter Dog	6920 500
6	Blade	6920 090
6	Blade	6920 091
7	Washer	4289 403
8	Washer spring	0017 911
9	Screw	6905 401
10	Belt	6905 303
11	Cap	6905 211
12	Rear Flap	6905 305
13	Rod	6905 304
14	Baffle Plate	6905 306
15	Deflector-Muffler	6905 307
16	Wheel ø 200 mm	6905 040
17	Wheel, 180Mm Dia.	6966 040
18	Bushing	6905 500
19	Arm	4249 501
20	Distance Ring	1086 107
21	Washer	6966110
22	Screw	6966111
23	Lever	6905 017
24	Lever	6905 016
25	Washer	6905 502
26	Washer	6905 503
27	Washer	4151 209
28	Belleville Spring Washer	0022 842
29	Bush	4289 516
30	Washer	0017 291
31	Axle Front	6905 504
32	Axle Rear	6905 505
33	Hex. Nut	0016 312
34	Handlebar Holder	6905 018
35	Insulator	6905 308
36	Handlebar	6905 011
37	Connecting Bar	6905 101
38	Handwheel	6905 102
39	Washer	0017 286
40	Clamp	6905 103
41	Screw	0013 650
42	Screw	0013 652
43	Screw	0013 654
44	Clamp	6905 104
45	Screw	0010 400
46	bend protection	6905 105
47	Bowden Wire	6905 106
48	Bracket6.51Ba	6905 107
49	Upper Handlebar	6912 012
50	Handle Insulator	6905 108
51	Satellit	6905 109
52	Button	4277104
53	Screw	0012 897
54	Screw	6905 110
55	Screw	0013 639
56	Nut	0016 311
57	Cover	6905 111
58	Screw	0015 653
59	Clip	4224 218
60	Washer	0017 121
61	Arm	6905 309
62	Screw	0013 653
63	Cover	6905 310
64	Screw, Pt Ka 40 X 10	0012 887
65	Self Locking Nut M8 Din 985 Ci.8	0016 213
66	Screw	0010 356
67	Self Locking Nut M 4	0016 309
68	Bracket6.51Ba	6905 112
69	Washer A 8,4 Din 125	0017 123
70	Washer	6905 311
73	Guide-Rope	6925 114
92	"Wolf-Garten" Brand	0051 146
117	Gum	6905 100
118	Cover	6966 506
****	Bag With Accessories	6922 060
****	Instruction Manual	0054 088
****	Safety Label	0051 224
