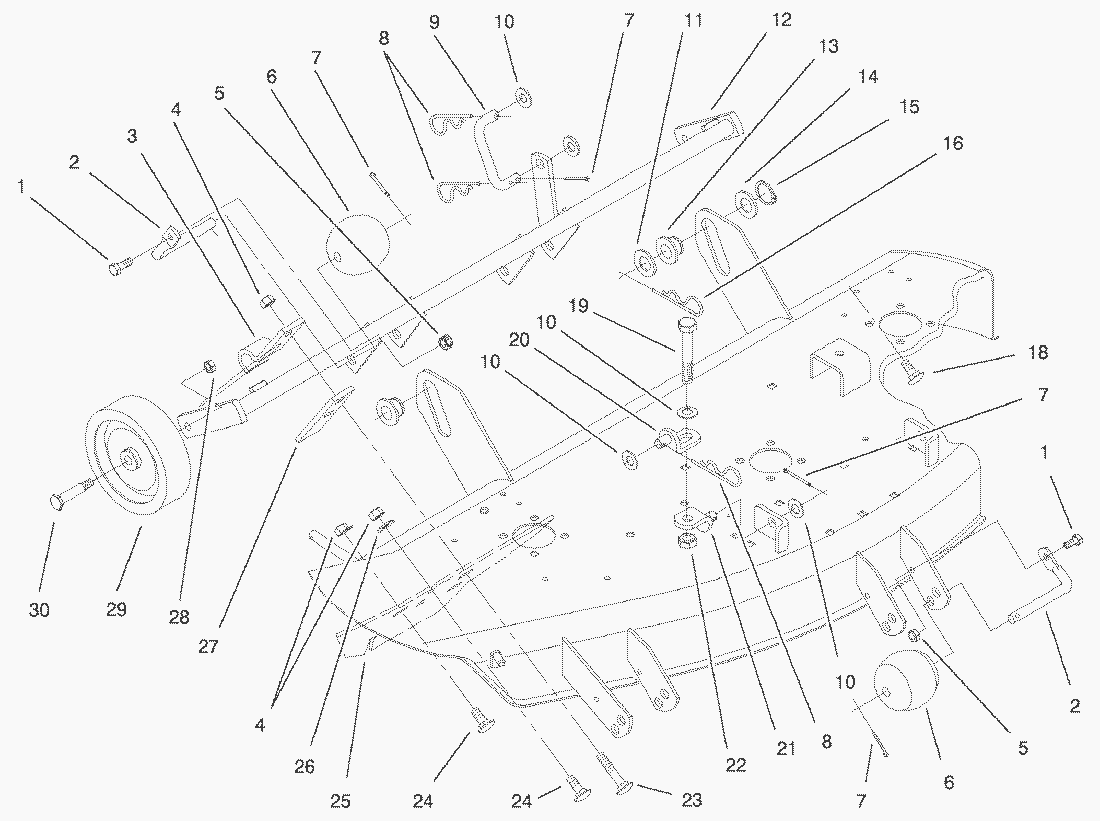

Lista de repuestos para Toro Roth / TORO Gage Wheel and Rollers Assy.

pos.	descripción	Número de pieza
1	Capscrew	321-4
2	Shaft-Roller	118960-03
3	Bracket-Pivot	110837-03
4	Locknut	3296-39
5	MUTTER	3296-42
6	Roller	29-4820
7	Pin-Cotter	3272-21
8	Pin-Cotter	9335064
9	Link-Rear	78-6681
10	Washer	3256-26
11	Washer	3256-28
12	Support-Gage Wheel	79-4140-03
13	Roller-Lift	78-7340
14	Washer-Flat	9202394
15	Ring-Retaining	32151-29
16	Cotter-Hairpin	9335074
18	Bolt-Carriage	3231-4
19	Screw-Hex Hd. Cap	325-13
20	Bracket-Lower Lift	86-9240
21	Bracket-Upper Lift	86-9250
22	Hex. Jam Nut	3218-5
23	Bolt-Carriage	3231-5
24	Carriage Bolt	3231-22
25	Wear Plate-R.H.	79-2831-03
26	Flat Washer	3256-24
27	Bar (Black)	110838-03
28	Hex Locknut	32146-2
29	Wheel	92-6959
30	Bolt-Shoulder	92-1057
