Roth / TORO
>
Ride-On Mowers
>
Mower decks
>
107cm Seit
>
318/78232
>
6900001
>

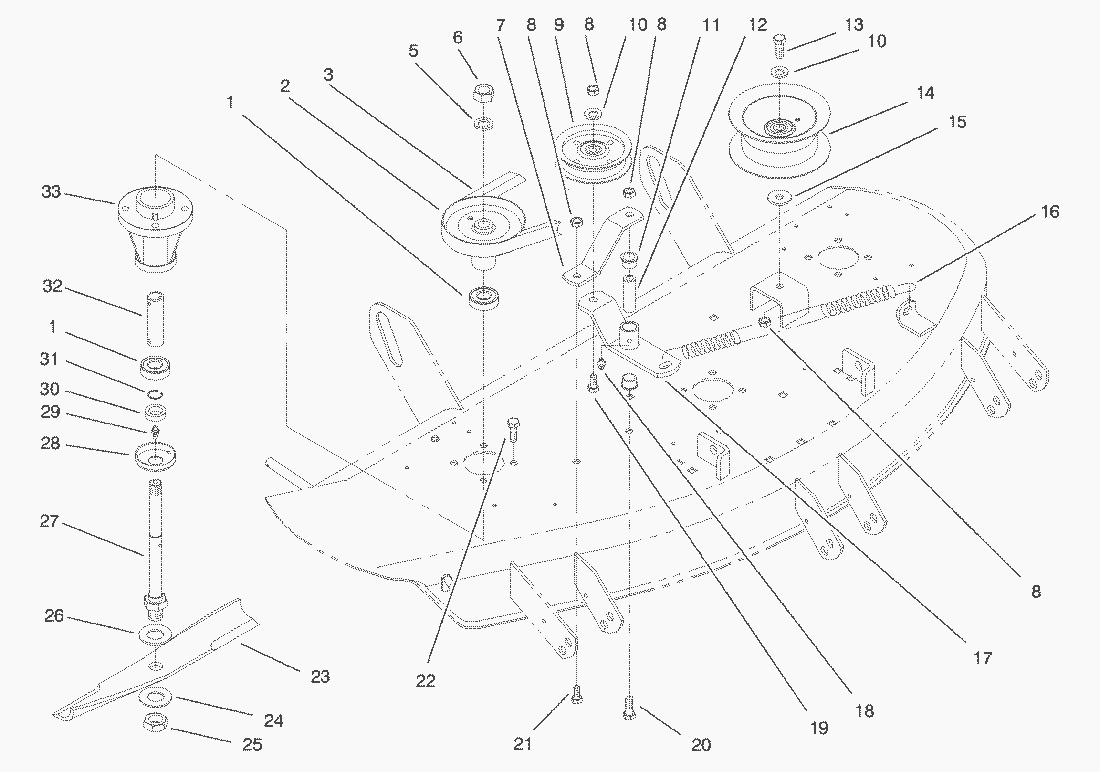

Deck Assy.
Lista de repuestos para Toro Roth / TORO Deck Assy.
pos.
descripción
Número de pieza
1
Bearing-Ball
109966
2
Pulley-Spindle
92-7080
3
V-Belt
92-6991
5
Lockwasher
3253-8
6
Nut
3220-6
7
Strap-Brace
78-3140
8
Locknut
3296-39
9
Pulley-Idler
92-7084
10
Flat Washer
3256-24
11
Bushing
109859
12
Spacer
79-2760
13
Hex Hd. Capscrew
323-11
14
Pulley-Idler
92-7082
15
Washer-Special
2844
16
Spring
116172
17
Arm-Idler
78-3150
18
Fitting-Grease
302-26
19
Capscrew
323-9
20
Screw-Hex Hd. Cap
323-14
21
Capscrew
323-6
22
Screw-Hex Hd. Cap
9080326
23
Kit-Blade (Set of 3)
106636
24
Washer
3256-28
25
Nut-Hex Jam
3220-7
26
Washer
9202574
27
Shaft-Spindle
78-6710
28
Cup-Spindle
106067
29
Grease Fitting
302-5
30
Spacer-Blade
106068
31
Ring-Retaining Internal
32120-42
32
Tube
116085
33
Housing-Spindle
114568
